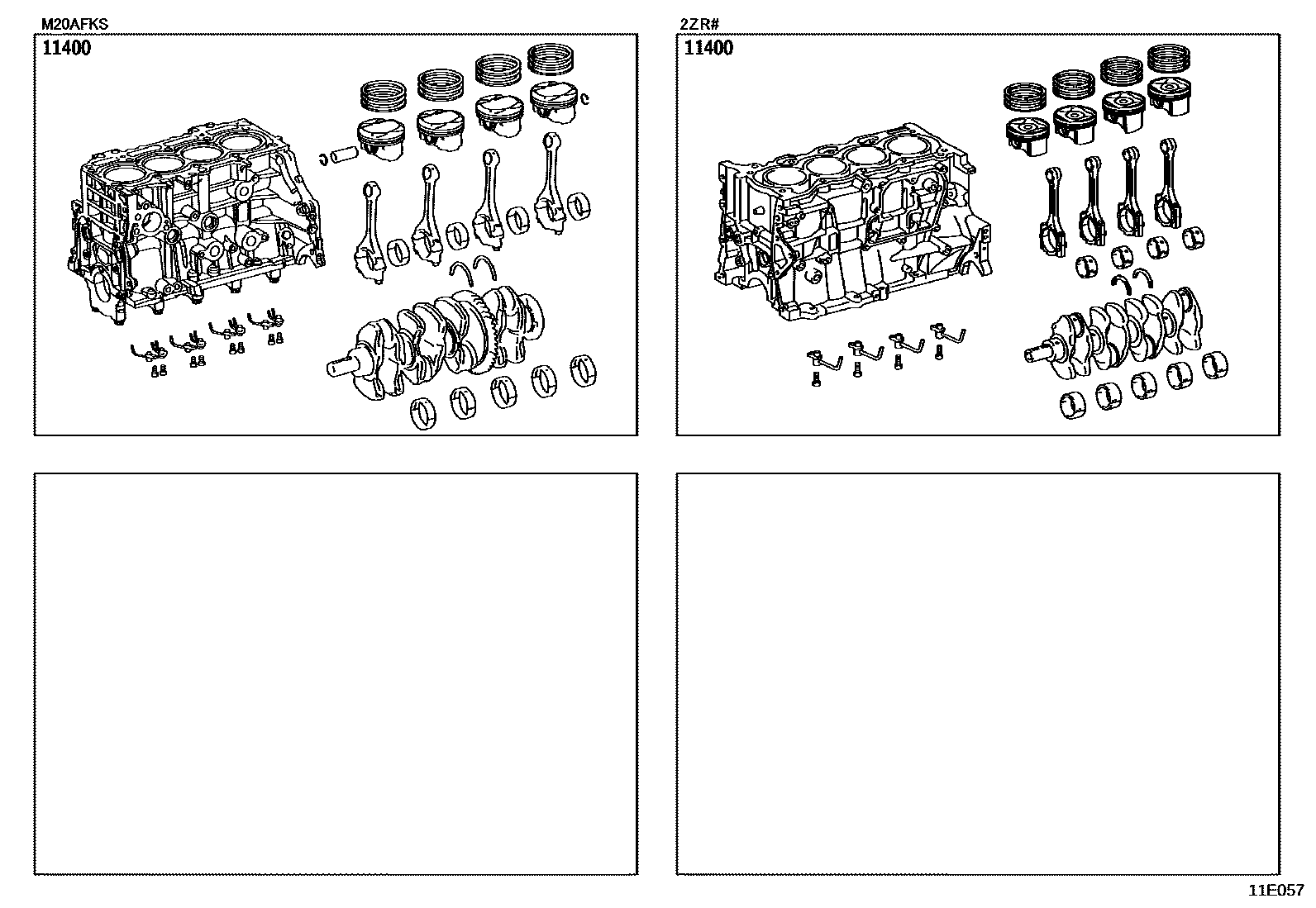

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-24030iM20AFKS..MZEA12201901-202408

main11400-2U020iM20AFKS..MZEA18..D202409

main11400-37280i2ZRFXE..ZWE21#201901-202110

sub11400-37380

sub16278-37021

sub16281-37071

sub16281-37190

sub16295-37021

sub25601-37050

main11400-37300i2ZRFAE..ZRE212201901-202208

main11400-37370i2ZRFXE..ZWE21#202209-202409

main11400-37380i2ZRFXE..ZWE21#202110-202208

main11400-3V010i2ZRFXE..ZWE21#202409

1 parts on this diagram · 1 diagram in section
