FRONT SPRING & SHOCK ABSORBER

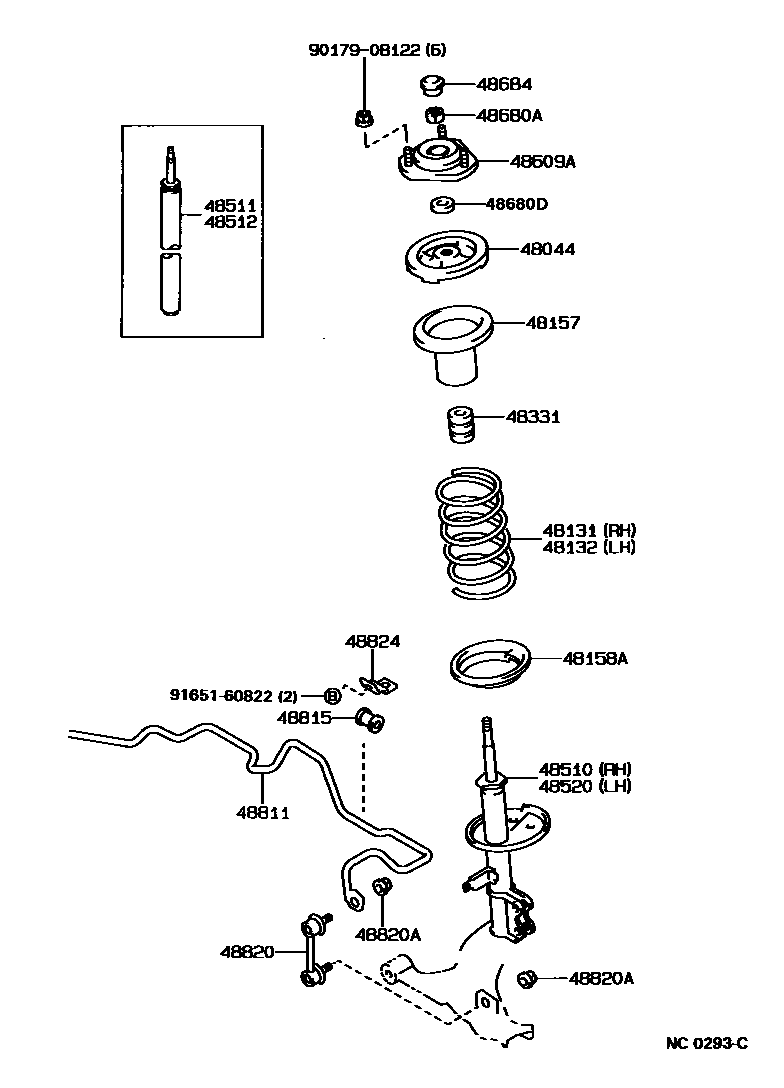

Parts diagram
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
main48044-12090i198708-199106
48131SPRING, FRONT COIL, RH
main48131-1E720i198708-198709
W(AIR CONDITIONER)
main48131-1E720i198709-199106
main48131-1E740i198708-199106
W(AIR CONDITIONER)
main48131-1E740i198709-199106
main48131-1E760i198709-199106
W(AIR CONDITIONER)
main48131-1E780i198908-199106
W(AIR CONDITIONER)
main48131-1E860i198708-198709
main48131-1E880i198708-198709
W(AIR CONDITIONER)
main48131-1E880i198709-198908
main48131-1E890i198708-198709
main48131-1E890i198709-198908
W(AIR CONDITIONER)
main48131-1H020i198708-198709
W(AIR CONDITIONER)
main48131-1H020i198709-198908
main48131-1H050i198708-198908
W(AIR CONDITIONER)
main48131-1H260i198908-199106
main48131-1H370i198708-198709
main48131-1H550i198908-199106
W(AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
main48131-1E720i198708-198709
main48131-1E740i198708-198709
W(AIR CONDITIONER)
main48131-1E740i198709-199106
main48131-1E760i198708-199106
W(AIR CONDITIONER)
main48131-1E760i198709-199106
main48131-1E780i198709-199106
W(AIR CONDITIONER)
main48131-1E800i198908-199106
W(AIR CONDITIONER)
main48131-1E880i198708-198709
main48131-1E890i198708-198709
W(AIR CONDITIONER)
main48131-1E890i198709-198908
main48131-1H020i198708-198709
main48131-1H020i198709-198908
W(AIR CONDITIONER)
main48131-1H050i198708-198709
W(AIR CONDITIONER)
main48131-1H050i198709-198908
main48131-1H550i198908-199106
main48131-1H560i198708-198908
W(AIR CONDITIONER)
main48131-1H650i198908-199106
W(AIR CONDITIONER)
48157INSULATOR, FRONT COIL SPRING, UPPER
main48157-12060i198708-199106
48158AINSULATOR, FRONT COIL SPRING, LOWER
main48158-12030i198708-199106
48331BUMPER, FRONT SPRING, NO.1
main48331-12100i198708-199106
sub48331-12120
main48331-12130i198708-199106
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-12520i198708-199106
sub48510-1A260
main48510-12590i198708-198908
sub48510-12591
main48510-12720i198908-199106
sub48510-12721
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
main48511-12310i198708-199106
*90
sub48511-12320
main48511-12330i198708-198908
*90
sub48511-12410
main48511-12410i198908-199106
*90
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
main48511-12310i198708-199106
*90
sub48511-12320
main48511-12330i198708-198908
*90
sub48511-12410
main48511-12410i198908-199106
*90
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-12390i198708-199106
sub48520-1A130
main48520-12460i198708-198908
sub48520-12461
main48520-12590i198908-199106
sub48520-12591
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
main48609-12190i198708-198808
sub48609-12191
main48609-12191i198808-198905
sub48609-12192
main48609-12192i198905-199106
main48609-12210i198708-198808
sub48609-12211
main48609-12230i198808-198905
sub48609-12231
main48609-12231i198905-199103
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main94182-11400i198708-199106
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
main90303-22049i198708-199106
48684COVER, BEARING DUST
main48684-32010i198708-199106
48811BAR, STABILIZER, FRONT
main48811-12510i198708-198908
main48811-12660i198908-199106
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-12140i198708-198908
main48815-12180i198908-199106
48820LINK ASSY, FRONT STABILIZER
main48820-20010i198708-199106
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-10054i198708-199106
48824BRACKET, STABILIZER, FRONT
main48824-12090i198708-199106
9017908122
main90179-08122
9165160822
main91651-60822

21 parts on this diagram · 1 diagram in section
