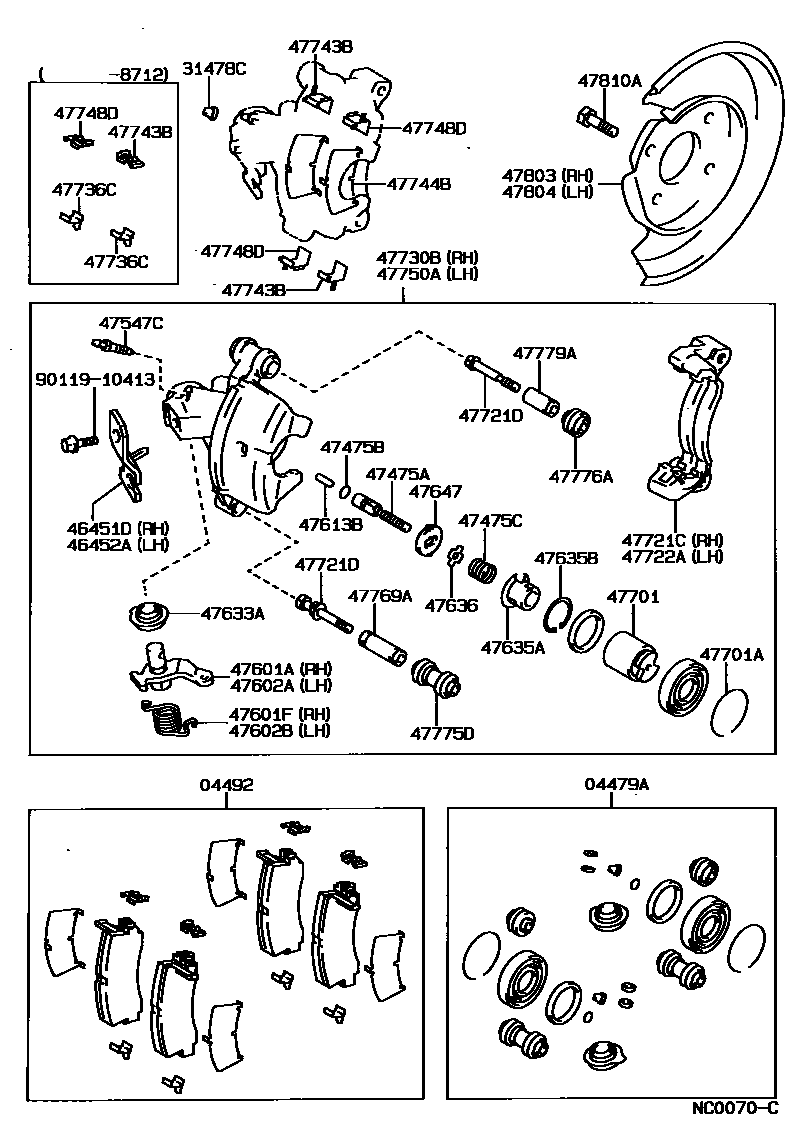

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12130iAE92..GTS198708-199106

sub04479-12190

04492PAD KIT, DISC BRAKE, REAR

main04492-12040iAE92..EFI198708-198712

main04492-12041iAE92..EFI198712-198805

main04492-12042iAE92..EFI198805-198908

main04492-12070iAE92..GTS198908-199106

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAE92..GTS198708-199106

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-12030iAE92..GTS198708-199106

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-12020iAE92..GTS198708-199106

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030×2iAE92..GTS198708-199106

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007×2iAE92..GTS198708-199106

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051×2iAE92..GTS198708-199106

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAE92..GTS198708-199106

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12020iAE92..GTS198708-199106

sub47601-12030

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32020iAE92..GTS198708-199106

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12020iAE92..GTS198708-199106

sub47602-12030

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32021iAE92..GTS198708-199106

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020×2iAE92..GTS198708-199106

47633ABOOT, PARKING BRAKE CRANK

main47633-12010×2iAE92..GTS198708-199106

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12010×2iAE92..GTS198708-199106

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002×2iAE92..GTS198708-199106

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010×2iAE92..GTS198708-199106

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010×2iAE92..GTS198708-199106

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12030×2iAE92..GTS198708-199106

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-43004×2iAE92..GTS198708-199106

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-12140iAE92..GTS198708-199106

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098×2iAE92..GTS198708-199106

*8-1.25PX56-15

main90119-08431×2iAE92..GTS198708-199106

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-12140iAE92..GTS198708-199106

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12330iAE92..GTS198708-199106

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12030×4iAE92..EFI198708-198712

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030×2iAE92..EFI198708-198712

main47743-12060×4iAE92..GTS198712-199106

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12070×4iAE92..EFI198708-198805

main47744-12071×4iAE92..EFI198805-198908

main47744-12080×4iAE92..GTS198908-199106

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090×2iAE92..EFI198708-198712

main47748-12110×4iAE92..GTS198712-199106

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12330iAE92..GTS198708-199106

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010×2iAE92..GTS198708-199106

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2iAE92..GTS198708-199106

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010×2iAE92..GTS198708-199106

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010×2iAE92..GTS198708-199106

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12040iAE92..GTS198708-199106

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12040iAE92..GTS198708-199106

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10167×4iAE92..GTS198708-199106

9011910413

main90119-10413

38 parts on this diagram · 2 diagrams in section
