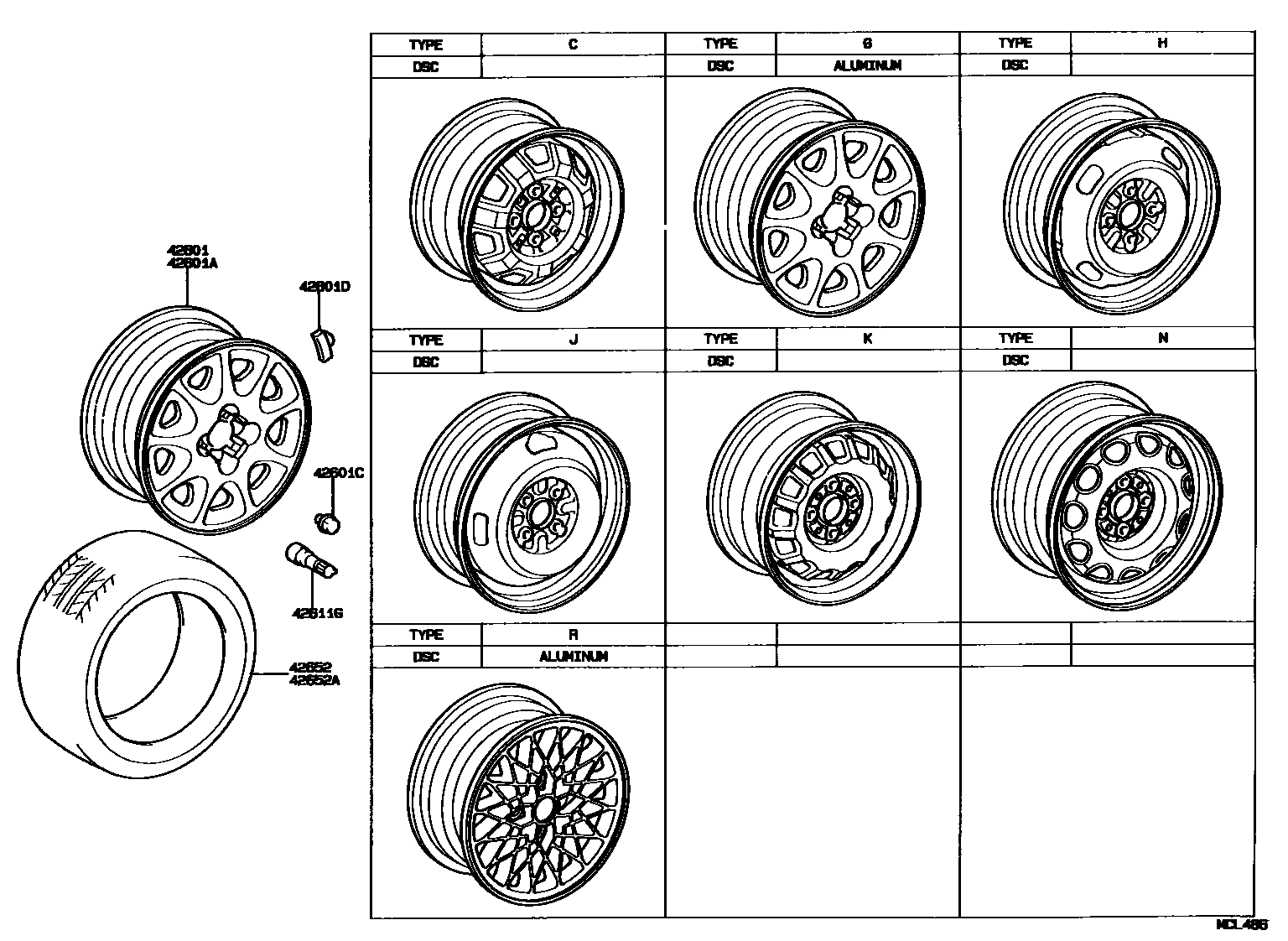

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,TYPE N
14X5.5JJ,SILVER,040 ,168 ,204 ,29E ,3E5 ,8E3,TYPE N:REFER ILLUST.
sub42611-12840
14X5.5JJ,SILVER,040 ,183 ,204 ,3E5 ,8E9 ,8G1,TYPE N:REFER ILLUST.
sub42611-12840
14X5.5JJ,SILVER,040 ,168 ,204 ,3E5 ,8E9 ,8G1,TYPE N:REFER ILLUST.
sub42611-12840
13X5J,TYPE R:REFER ILLUST.
14X5.5JJ,TYPE G
42601AWHEEL, DISC (FOR SPARE)
14X4T,TYPE H
42601CNUT, HUB (FOR AXLE)
CAP NUT
W(13INCHES ALUMINUM WHEEL)
W(14INCHES ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G,W(14INCHES ALUMINUM WHEEL)
15G,W(14INCHES ALUMINUM WHEEL)
20G,W(14INCHES ALUMINUM WHEEL)
25G,W(14INCHES ALUMINUM WHEEL)
30G,W(14INCHES ALUMINUM WHEEL)
35G,W(14INCHES ALUMINUM WHEEL)
40G,W(14INCHES ALUMINUM WHEEL)
45G,W(14INCHES ALUMINUM WHEEL)
50G,W(14INCHES ALUMINUM WHEEL)
55G,W(14INCHES ALUMINUM WHEEL)
60G,W(14INCHES ALUMINUM WHEEL)
65G,W(14INCHES ALUMINUM WHEEL)
70G,W(14INCHES ALUMINUM WHEEL)
75G,W(14INCHES ALUMINUM WHEEL)
80G,W(14INCHES ALUMINUM WHEEL)
10G,W(13INCHES ALUMINUM WHEEL)
15G,W(13INCHES ALUMINUM WHEEL)
20G,W(13INCHES ALUMINUM WHEEL)
25G,W(13INCHES ALUMINUM WHEEL)
30G,W(13INCHES ALUMINUM WHEEL)
35G,W(13INCHES ALUMINUM WHEEL)
40G,W(13INCHES ALUMINUM WHEEL)
45G,W(13INCHES ALUMINUM WHEEL)
50G,W(13INCHES ALUMINUM WHEEL)
55G,W(13INCHES ALUMINUM WHEEL)
60G,W(13INCHES ALUMINUM WHEEL)
65G,W(13INCHES ALUMINUM WHEEL)
70G,W(13INCHES ALUMINUM WHEEL)
75G,W(13INCHES ALUMINUM WHEEL)
80G,W(13INCHES ALUMINUM WHEEL)
5G
5G,W(14INCHES ALUMINUM WHEEL)
5G,W(13INCHES ALUMINUM WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
155SR13
175/70SR13
185/60R14 82H,*(D),*(T)
185/60R14 82H,ALL SEASON
185/60R14 82H,*(B),*(Y)
42652ATIRE (FOR SPARE)
7 parts on this diagram · 2 diagrams in section
