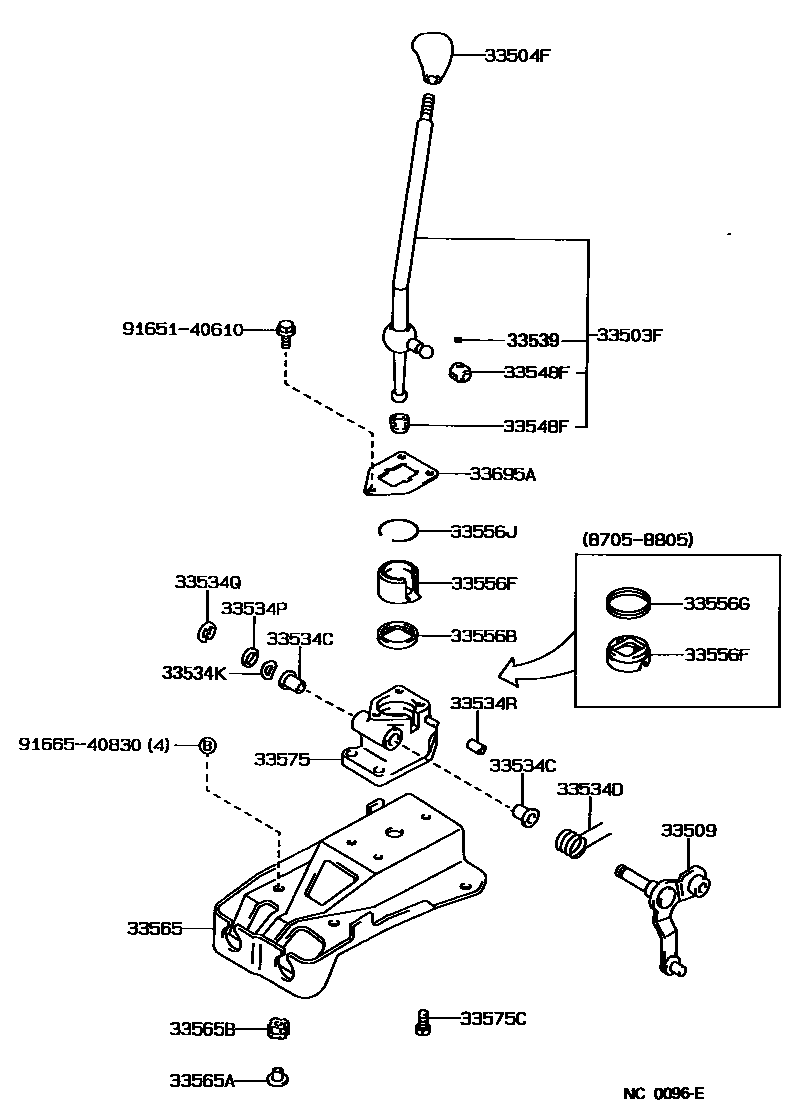

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12310iAE92..3FC198708-198908

main33503-12320iAE92..4FC198708-198908

main33503-12360iAE92..5F198708-198904

sub33503-12361

main33503-12361iAE92..5F198904-199106

main33503-12460iAE92..3FC198908-199106

main33503-12470iAE92..4FC198908-199106

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-04iAE92..GTS198708-199106

DARK BLUE,TRIM8#

sub33504-12150

sub33504-22140

main33504-12150-12iAE92..GTS198708-199106

MAROON,TRIM3#

sub33504-12150

sub33504-22140

main33504-12150-23iAE92..GTS198708-199106

SHADOW GRAY,TRIM1#

sub33504-12150

sub33504-22140

main33504-24010-20iAE92..5F..(DX,SR5)198708-199008

GRAY,TRIM1#

sub33504-24010

main33504-24010-50iAE92..5F..CBR;AE92..5F..SR5..EFI198708-199106

MAROON,TRIM3#

sub33504-24010

main33504-24010-54iAE92..5F..CBR198708-198807

DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-55iAE92..5F..CBR198708-198908

DARK BEIGE,TRIM4#

sub33504-24010

main33504-24010-B3iAE92..5F..(DX,SR5)199009-199106

SHADOW GRAY,TRIM1#

sub33504-24010

main33504-24010-E1iAE92..5F..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

sub33504-24010

main33504-24010-J0iAE92..5F..(DX,SR5)198807-199106

DARK BLUE,TRIM8#

sub33504-24010

main33542-12150-03iAE92..3FC198708-199008

SHADOW GRAY,TRIM1#

sub33542-12150

main33542-12150-06iAE92..3FC198908-199009

BROWN,TRIM4#

sub33542-12150

main33542-12150-12iAE92..3FC198708-198908

MAROON,TRIM3#

sub33542-12150

main33542-12150-B1iAE92..3FC199009-199106

SHADOW GRAY,TRIM1#

sub33542-12150

main33542-12150-E2iAE92..3FC199009-199106

BROWN,TRIM4#

sub33542-12150

main33542-12150-J0iAE92..3FC198908-199106

DARK BLUE,TRIM8#

sub33542-12150

main33542-20090-02iAE92..4FC198908-199106

RED,TRIM3#

sub33542-20090

main33542-20090-03iAE92..4FC198908-199008

GRAY,TRIM1#

sub33542-20090

main33542-20090-04iAE92..4FC198908-199009

BLUE,TRIM8#

sub33542-20090

main33542-20090-16iAE92..4FC..USA198908-199009

BROWN,TRIM4#

sub33542-20090

main33542-20090-B1iAE92..4FC199009-199106

SHADOW GRAY,TRIM1#

sub33542-20090

main33542-20090-E0iAE92..4FC..USA199009-199106

BROWN,TRIM4#

sub33542-20090

main33542-20090-J0iAE92..4FC199009-199106

DARK BLUE,TRIM8#

sub33542-20090

main33542-32050-03iAE92..4FC198708-198908

SHADOW GRAY,TRIM1#

sub33542-32050

main33542-32050-15iAE92..4FC198708-198908

DARK BEIGE,TRIM4#

sub33542-32050

main33542-32050-32iAE92..4FC198708-198908

MAROON,TRIM3#

sub33542-32050

main33542-32050-34iAE92..4FC198708-198807

DARK BLUE,TRIM8#

sub33542-32050

main33542-32050-J0iAE92..4FC198807-198908

DARK BLUE,TRIM8#

sub33542-32050

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060iAE92..5F198708-198904

sub33509-12080

sub90206-12003

main33509-12080iAE92..5F198904-199106

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013iAE92..5F198708-198805

main90386-12034iAE92..5F198805-199106

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iAE92..5F198708-199106

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iAE92..5F198904-199106

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iAE92..5F198708-199106

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iAE92..5F198708-199106

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iAE92..5F198708-199106

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iAE92..5F198908-199106

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iAE92..5F198708-198908

main33548-12040iAE92..5F198908-199106

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iAE92..5F198805-199106

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-12040iAE92..5F198708-198805

main33556-20020iAE92..5F198805-199106

33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90501-11040iAE92..5F198708-198805

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iAE92..5F198808-199106

33565PLATE, CONTROL SHIFT LEVER RETAINER

main33565-12030iAE92..5F198708-199106

33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-08031iAE92..5F198708-199106

33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-10020iAE92..5F198708-199106

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-12120iAE92..5F198708-198805

sub33575-12H00

main33575-32050iAE92..5F198805-199106

33575CBOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08622iAE92..5F198708-199106

33695ACOVER, SHIFT LEVER BALL

main33695-12020iAE92..5F198708-198807

sub33695-12031

main33695-12031iAE92..5F198807-199106

9165140610

main91651-40610

9166540830

main91665-40830

23 parts on this diagram · 7 diagrams in section
