MANIFOLD

0001 1 0002 1 0003 1

16265HOSE, INTAKE MANIFOLD WATER

main16265-15020i4AF..AE92198708-198908

16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)

main90467-21001i4AF..AE92198708-198711

sub90467-21006

main90467-21006i4AF..AE92198711-198908

17111MANIFOLD, INTAKE

main17101-16070i4AF..AE92198708-198908

main17101-16100i4AGE..AE92198708-198908

main17101-16140i4AFE..AE92..USA198908-199106

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main17101-16170i4AFE..AE92198908-199106

main17101-16220i4AGE..AE92198908-199106

17111APLUG, NO.1

main90344-53011i4AF..AE92198708-198908

main90345-51006i4AFE..AE92198908-199106

main96411-43500i4AGE..AE92198708-199106

17111BPLUG, NO.2

main90344-54003i4AF..AE92198708-198908

17118STAY, MANIFOLD

main17118-16070i4AF#..AE92198708-199008

sub17118-16071

sub90119-10329

main17118-16071i4AFE..AE92199008-199106

main17139-16040i4AGE..AE92198708-199106

17119STAY, MANIFOLD, NO.2

main17118-16040i4AGE..AE92198708-199106

main17139-15020i4AF..AE92198708-198908

main17139-16030i4AFE..AE92198908-199106

17141MANIFOLD, EXHAUST

main17141-16190i4AGE..AE92198708-199106

main17141-16220i4AF..AE92198708-198908

sub17141-16221

sub90119-06817

main17141-16250i4AFE..AE92198908-199106

sub17141-19015

main17141-16270i4AGE..AE92198908-199009

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832i4AF..AE92198708-198808

main92112-60832i4AF..AE92198808-198908

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i4AF..AE92198708-198904

main90116-10146i4AGE..AE92198805-199106

main90126-10003i4AGE..AE92199012-199106

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08218i4AGE..AE92198708-198908

INTAKE MANIFOLD

main90116-08317i4AGE..AE92198908-199106

INTAKE MANIFOLD

main90116-10037i4AGE..AE92198708-199106

EXHAUST MANIFOLD

main92112-60825i4AF#..AE92198708-199106

INTAKE MANIFOLD

main92112-61028i4AF#..AE92198907-199106

EXHAUST MANIFOLD

main92112-61032i4AF..AE92198708-198907

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-16080i4AF..AE92198708-198908

main17167-16050i4AGE..AE92198708-199106

main17167-16100i4AFE..AE92198908-199106

sub17167-15060

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16060i4AGE..AE92198708-199106

main17168-16070i4AF#..AE92198708-199106

sub17168-16071

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15010i4AF#..AE92198708-198912

sub17173-15011

main17173-15011i4AFE..AE92198912-199106

main17173-16010i4AGE..AE92198708-198905

sub17173-16011

main17173-16011i4AGE..AE92198905-199106

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15020i4AFE..AE92..USA198908-198912

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

sub17171-15021

main17171-15020i4AF..AE92198708-198908

sub17171-15021

main17171-15021i4AFE..AE92..USA198912-199106

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main17171-16030i4AFE..AE92198908-198912

sub17171-16031

main17171-16031i4AFE..AE92198912-199106

main17171-16040i4AGE..AE92198908-199106

main17177-16012i4AGE..AE92198708-198908

9011608039

main90116-08039

9011906380

main90119-06380

9011908633

main90119-08633

9011910329

main90119-10329

9011910485

main90119-10485

9011910673

main90119-10673

9017908025

main90179-08025

9017908175

main90179-08175

9017910070

main90179-10070

9034453011

main90344-53011

9161560830

main91615-60830

9211240616

main92112-40616

9211240820

main92112-40820

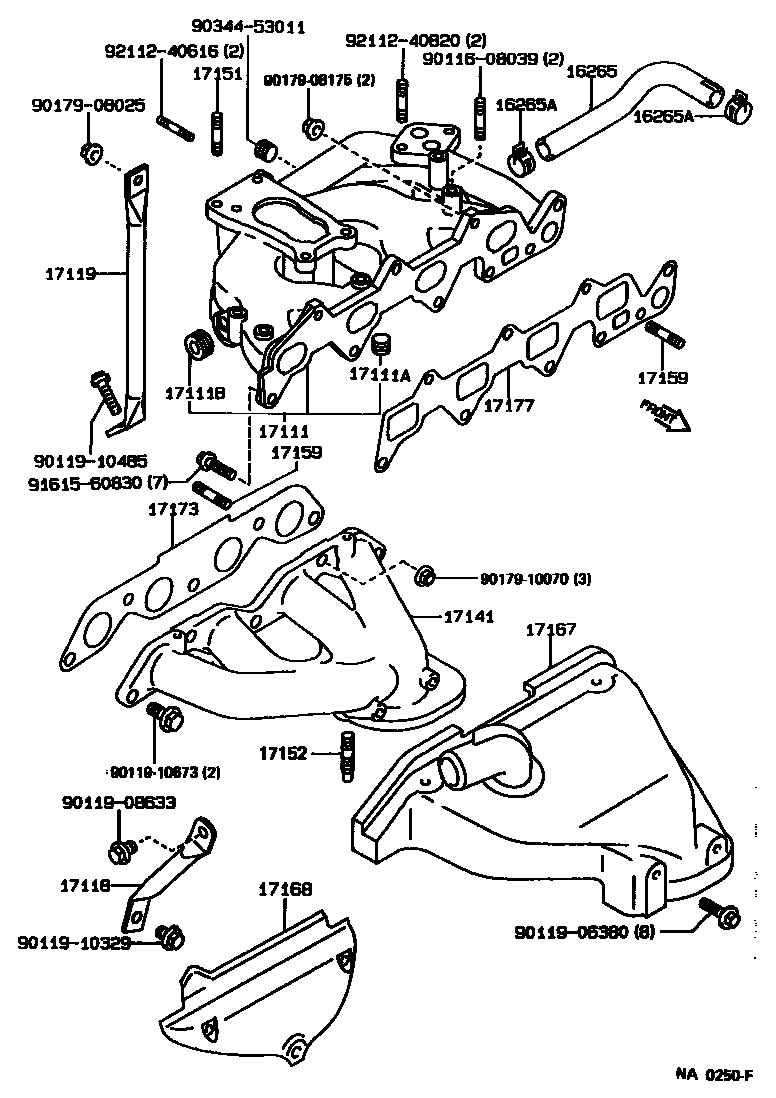

28 parts on this diagram · 3 diagrams in section
