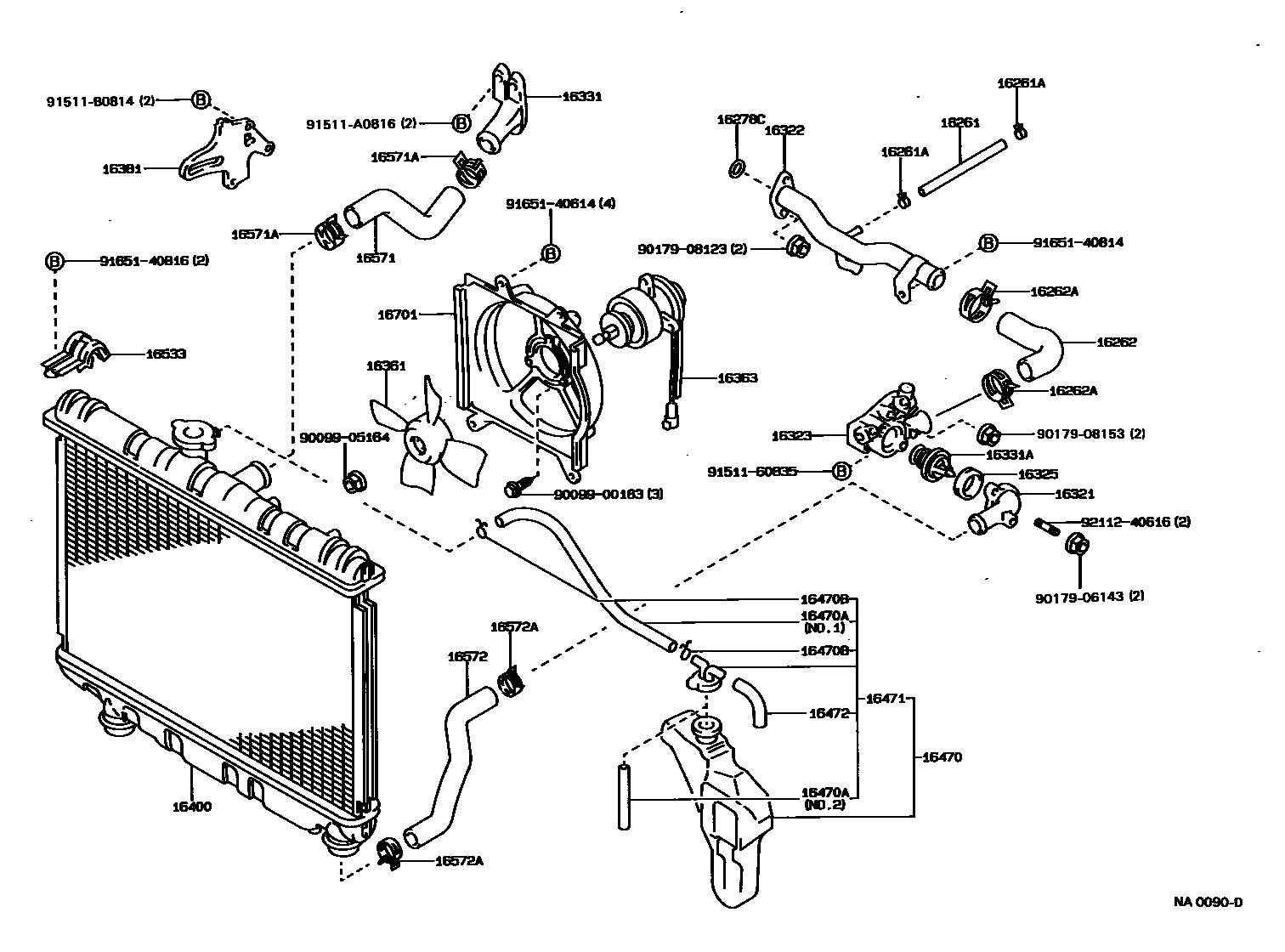

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
*H,L=200
16262HOSE, WATER INLET
16278PIPE, WATER BY-PASS, NO.2
sub16278-16061
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16361FAN
16363MOTOR, COOLING FAN
*AXC=-602
16381BAR, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
W(MANUAL AIR CONDITIONER)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
NO.2
L=600,NO.2
L=460,NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
W(MANUAL AIR CONDITIONER)
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16701SHROUD SUB-ASSY, FAN
*AXC=-602
9009900183
main90099-00183
9009905164
main90099-05164
9017906143
main90179-06143
9017908123
main90179-08123
9017908153
main90179-08153
9151160835
main91511-60835
91511A0816
main91511-A0816
91511B0814
main91511-B0814
9165140614
main91651-40614
9165140814
main91651-40814
9165140816
main91651-40816
9211240616
main92112-40616
39 parts on this diagram · 4 diagrams in section
