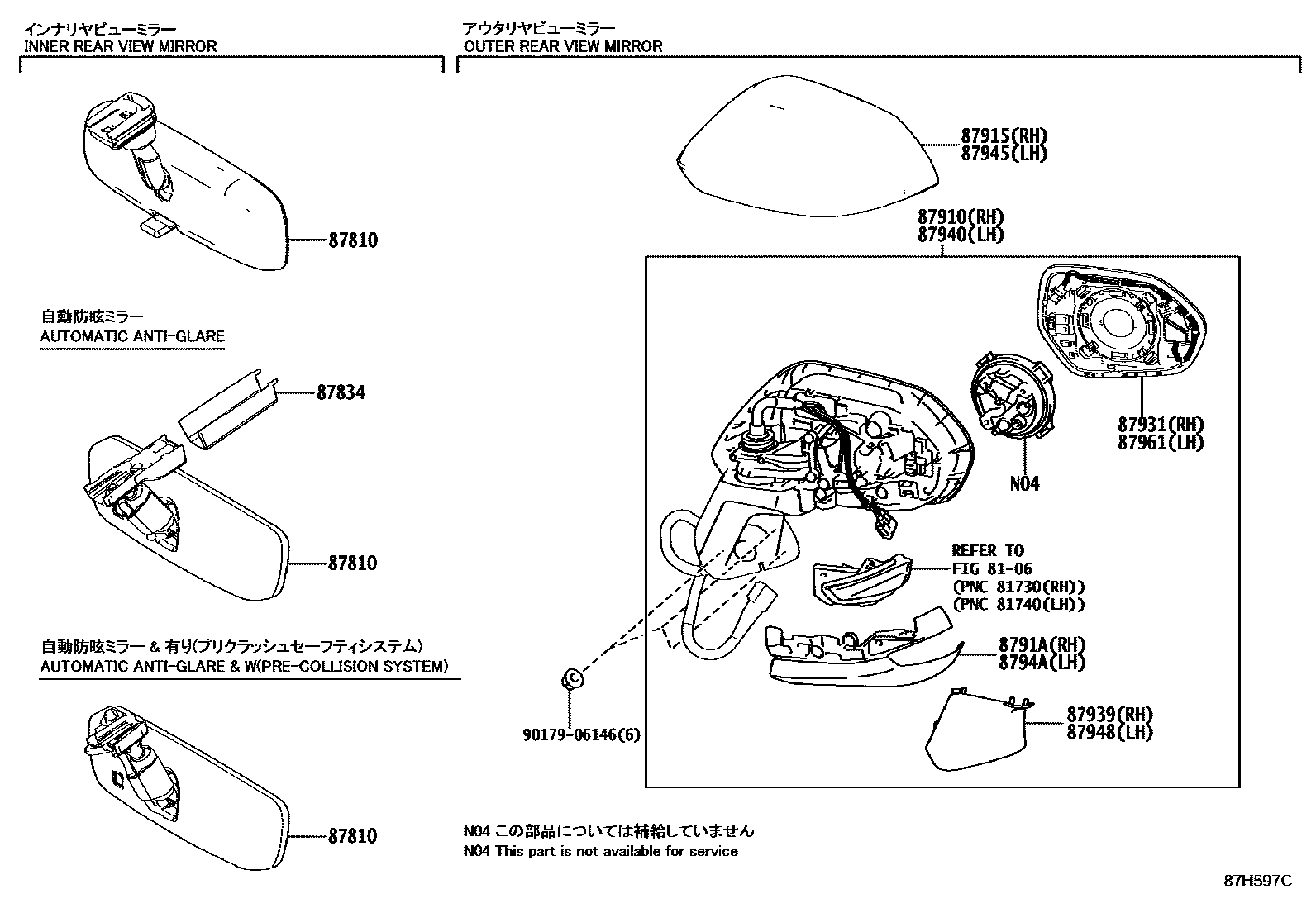

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
HIGH GRADE PACKAGE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
DK.GRAY,1L7
BLACK MC.,209
ATTITUDE BLACK MC.,218
SCARLET ME.,3U4
RED M.M.,3R3
RED MC.,3T3
DK.BLUE M.M.,8W7
DK. BLUE MC.,8X8
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
NO PAINT REQ.,CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,CENTRAL AMERICA 2 SPEC
NO PAINT REQ.,CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.
NO PAINT REQ.,CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
87931OUTER MIRROR, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
DK.GRAY,1L7
BLACK MC.,209
ATTITUDE BLACK MC.,218
SCARLET ME.,3U4
RED M.M.,3R3
RED MC.,3T3
DK.BLUE M.M.,8W7
DK. BLUE MC.,8X8
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.,CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
CENTRAL AMERICA 2 SPEC
CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.
NO PAINT REQ.,CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
NO PAINT REQ.,CENTRAL AMERICA 1 SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.,CENTRAL AMERICA 2 SPEC
87961MIRROR OUTER, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
9017906146
14 parts on this diagram · 1 diagram in section
