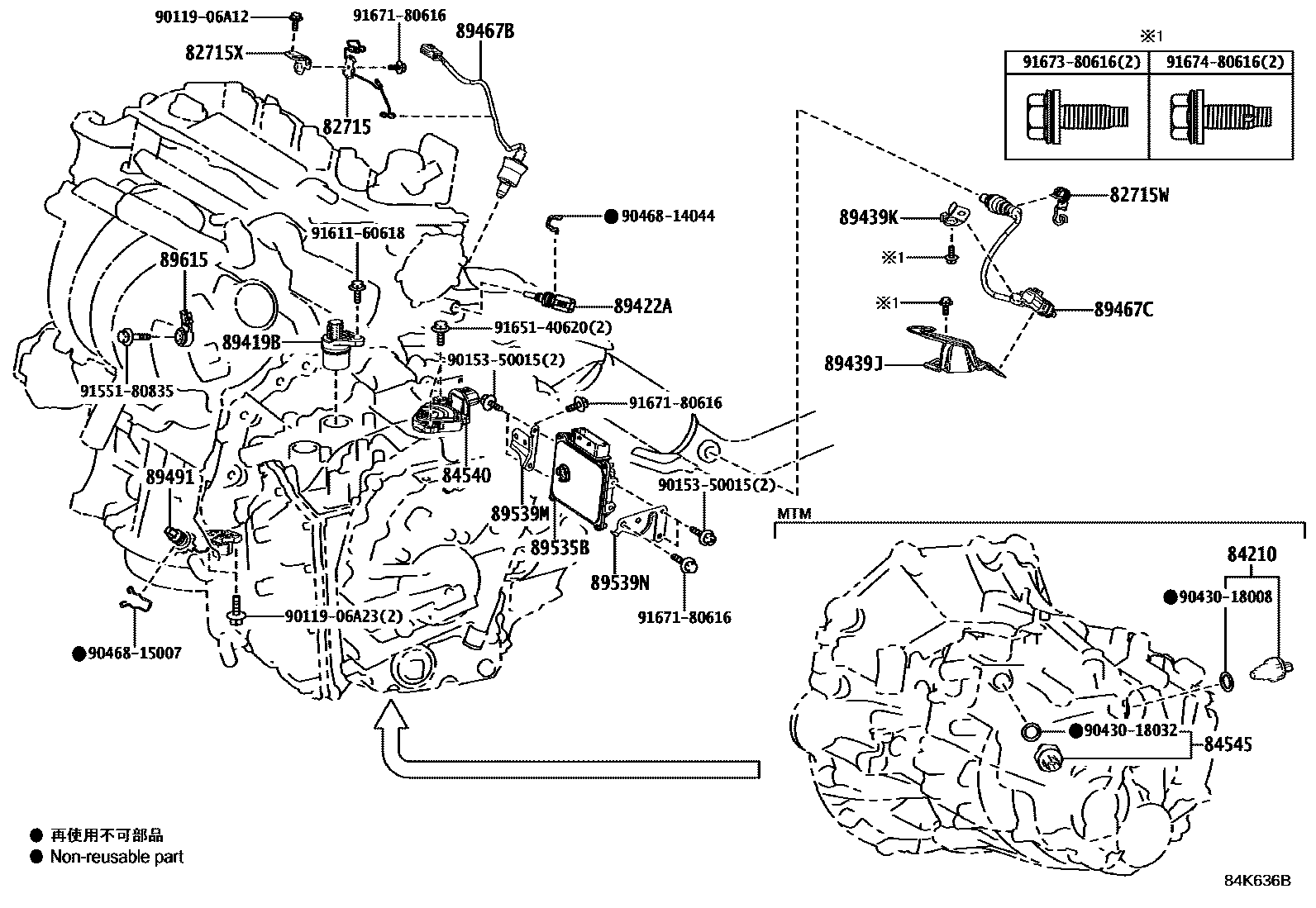

82715BRACKET,WIRING HARNESS CLAMP

main82715-10310iZWE211201901-202208

main82715-10410iZRE212201901-202208

main82715-12V90iMZEA12201909-202507

main8946A-12030iZWE219202209-202409

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMZEA18..LHD;MZEA12,ZWE219201901-202507

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMZEA18..RHD201909-202507

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12,ZRE212..6F201901-202208

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12..CVT201909-202507

main84540-52070iZRE212..CVT201901-202208

84545SWITCH, NEUTRAL POSITION

main84545-52010iMZEA12..6F201909-202208

89419BSENSOR, SHIFT STROKE

main89419-12011iMZEA12..CVT201909-202507

main89419-12011iMZEA12..CVT202106-202203

MARK=CS1

main89419-K2010iMZEA12..CVT202106-202507

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA18;MZEA12..L201909-202507

89439JBRACKET, SENSOR, NO.2

main82715-47A60iMZEA12201909-202507

89439KBRACKET, SENSOR, NO.3

main82715-47690iMZEA12..D201909-202507

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZRE212201901-202208

main89467-12280iMZEA12..D201909-202507

main89467-12340iZWE219202209-202409

main89467-47030iZWE211201901-202208

89467CSENSOR, AIR FUEL RATIO, NO.2

main89465-47090iZWE219202209-202409

main89467-12290iMZEA12..D201909-202507

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE21#202104-202204

sub89491-28091

main89491-28091iZWE219202205-202409

main89491-33051iMZEA12201909-202204

sub89491-33052

main89491-33052iMZEA12..D202205-202507

main89491-47011iZWE211201901-202103

sub89491-28090

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12060iMZEA12..CVT201909-202208

main89535-12250iMZEA12..L202209-202508

*614

main89535-12260iMZEA18..RHD202209-202307

*614

main89535-12270iMZEA18..LHD202209-202409

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12..CVT201909-202507

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..D201909-202507

89615SENSOR, KNOCK CONTROL

main89615-20090iMZEA12..D201901-202507

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9043018008

main90430-18008

9043018032

main90430-18032

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

9167480616

main91674-80616

30 parts on this diagram · 27 diagrams in section
