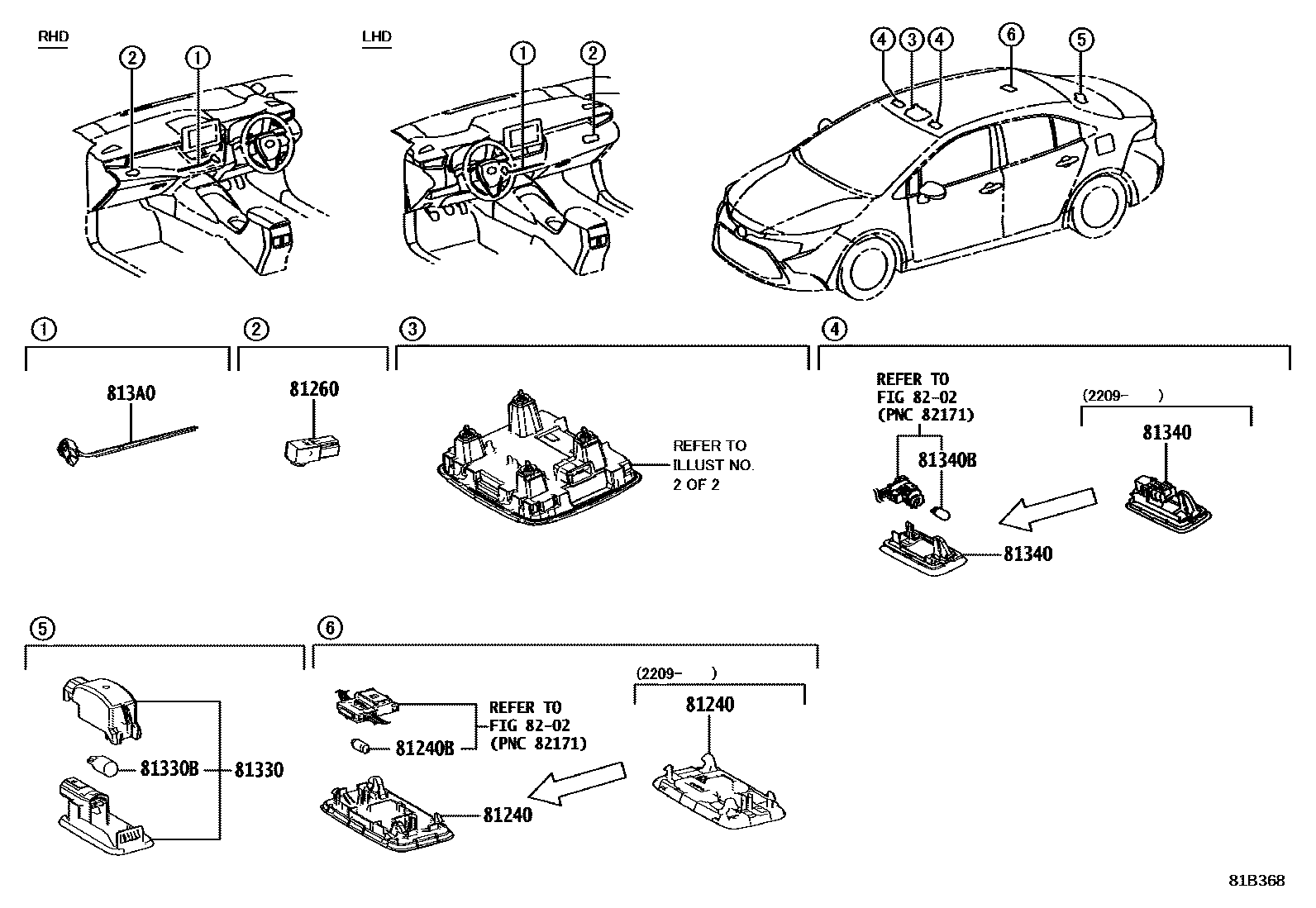

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,2#
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,20
FROMAGE,TRIM0#,1#,20
BLACK,TRIM20,21
FROMAGE,TRIM20
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM2#
BLACK,TRIM20,26
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
MOON ROOF-WITH
CENTRAL AMERICA 2 SPEC&MOON ROOF-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
MOON ROOF-WITH
MOON ROOF-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
CENTRAL AMERICA 1 SPEC
CENTRAL AMERICA 1 SPEC&MOON ROOF-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
CENTRAL AMERICA 2 SPEC
81340BBULB (FOR VANITY LAMP)
12V 8W
12V 8W,MOON ROOF-WITH
8202
9 parts on this diagram · 2 diagrams in section
