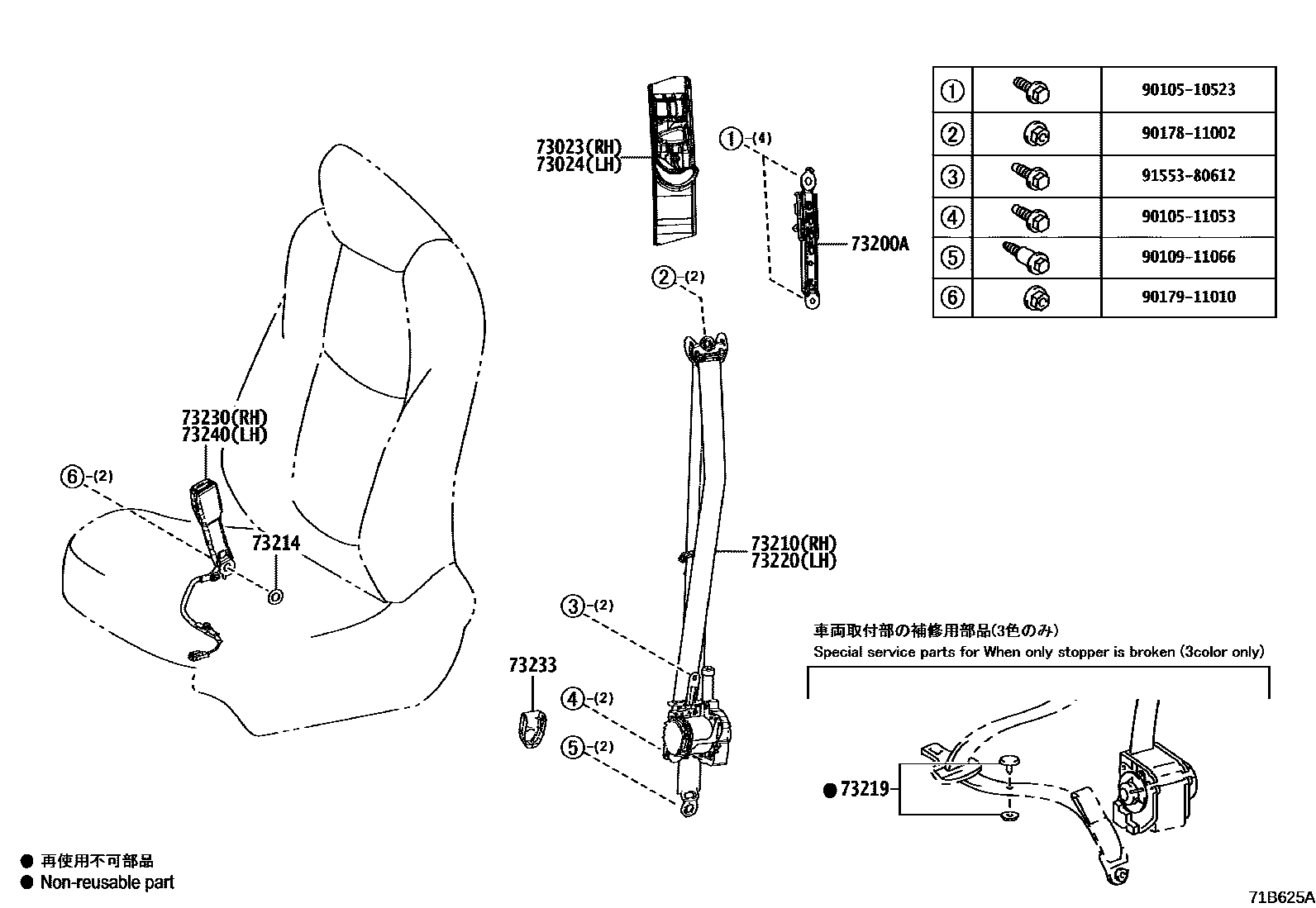

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iZRE212..D;MZEA12,ZWE211..ARL201901-202409

BLACK,TRIM0#,1#,2#

main73023-12030-C0iMZEA12..D202209-202507

BLACK,TRIM2#

main73023-12030-C0iMZEA12,ZRE212,ZWE211..L201901-202208

BLACK,TRIM1#,2#

main73023-12030-C0iZRE212..L202004-202208

BLACK,TRIM0#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iMZEA12..D202209-202507

BLACK,TRIM2#

main73024-12020-C0iZWE219..MXC201901-202409

BLACK,TRIM0#,1#,2#

main73024-12020-C0iMZEA12,ZRE212,ZWE211..L201901-202208

BLACK,TRIM1#,2#

main73024-12020-C0iZRE212..L202004-202208

BLACK,TRIM0#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iMZEA12..D201901-202507

main73200-12070iZWE219..MXC202004-202409

CENTRAL AMERICA 2 SPEC

main73200-12070iMZEA18;MZEA12,ZWE219..L..ARL202004-202409

CENTRAL AMERICA 1 SPEC

main73200-42020iZWE219..MXC202004-202409

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47272-C5iZWE211..MXC201901-202207

BLACK,TRIM0#,2#

sub73210-47273

main73210-47273-C5iZWE219..MXC202209-202409

BLACK/BLACK,TRIM0#,1#,2#

main73210-47281-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

BLACK,TRIM0#,1#,2#

sub73210-47281

sub73210-47282

main73210-47281-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

BLACK,TRIM1#,2#

sub73210-47281

sub73210-47282

main73210-47281-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

CENTRAL AMERICA 1 SPEC,BLACK,TRIM0#,2#

sub73210-47281

sub73210-47282

main73210-47281-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

CENTRAL AMERICA 2 SPEC,BLACK,TRIM0#,2#

sub73210-47281

sub73210-47282

main73210-47282-C7iZWE219..MXC202208-202507

BLACK/BLACK,TRIM2#

main73210-47282-C7iMZEA18;MZEA12,ZWE219..L..ARL202209-202409

CENTRAL AMERICA 1 SPEC,BLACK/BLACK,TRIM0#,2#

main73210-47282-C7iMZEA18;MZEA12,ZWE219..L..ARL202209-202409

CENTRAL AMERICA 2 SPEC,BLACK/BLACK,TRIM0#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iMZEA12..D201901-202507

73219STOPPER, TONGUE PLATE

main73219-33010iMZEA18;MZEA12,ZWE219..L201901-202507

BLACK

main73219-33020iMZEA18;MZEA12,ZWE219..L201901-202507

GRAY

main73219-33030iMZEA12,ZRE212,ZWE21#201901-202507

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

BLACK,TRIM0#,2#

sub73220-47221

sub73220-47222

main73220-47221-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

BLACK,TRIM0#,1#,2#

sub73220-47221

sub73220-47222

main73220-47221-C7iZRE212..D;MZEA12,ZWE211..ARL201901-202207

BLACK,TRIM1#,2#

sub73220-47221

sub73220-47222

main73220-47222-C7iZWE219..MXC202209-202409

BLACK/BLACK,TRIM0#,1#,2#

main73220-47222-C7iMZEA12..D202208-202507

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12C30-C0iZWE219..MXC202209-202409

BLACK,TRIM0#,2#

main73230-12C40-C0iZWE211..MXC201901-202208

BLACK,TRIM0#,2#

main73230-16450-C0iMZEA18202209-202409

BLACK,TRIM2#

main73230-16460-C0iMZEA18..RHD202209-202508

BLACK,TRIM2#

main73230-16470-C0iZWE219..ARL202209-202508

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-16470-C0iZWE219..ARL202209-202508

SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-16470-C0iZWE219..ARL202209-202409

MAURITIUS SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33870-C0iMZEA12..L201909-202208

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33870-C0iMZEA12..6F;ZRE212..RHD..L202001-202208

SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33880-C0iMZEA12,ZRE212..RHD..D201909-202208

BLACK,TRIM1#,2#

main73230-33880-C0iMZEA12,ZRE212,ZWE211..RHD..L201909-202208

BLACK,TRIM0#,1#,2#

main73230-33890-C0iZRE212..LHD..D201901-202208

BLACK,TRIM1#,2#

main73230-33890-C0iZRE212..LHD..D201901-202208

BLACK,TRIM0#,1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iMZEA12..D202209-202507

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C1iZWE219..MXC201901-202409

BLACK,TRIM0#,1#,2#

sub73233-60020

sub73233-35010

main73233-60020-C1iZWE211..MXC201901-202208

BLACK,TRIM0#,2#

sub73233-60020

sub73233-35010

main73233-60020-C1iZWE211..MXC201901-202208

BLACK,TRIM1#,2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12C90-C0iZWE219..MXC202209-202409

DECONTENT PACKAGE,BLACK,TRIM0#,1#,2#

main73230-12D20-C0iZWE219..MXC202209-202409

BLACK,TRIM0#,2#

main73230-16450-C0iMZEA12,ZWE219..ARL202209-202507

BLACK,TRIM2#

main73230-16460-C0iMZEA18202209-202409

BLACK,TRIM2#

main73230-16470-C0iMZEA18..LHD..L202209-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33780-C0iZWE21#..MXC201901-202208

BLACK,TRIM0#,2#

main73230-33870-C0iZRE212..LHD..CVT..L201901-202208

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33880-C0iZRE212..LHD..D201901-202208

BLACK,TRIM0#,1#,2#

main73230-33880-C0iZRE212..LHD..D201901-202208

BLACK,TRIM1#,2#

main73230-33890-C0iMZEA12,ZRE212..RHD..D201909-202208

BLACK,TRIM1#,2#

main73230-33890-C0iMZEA12..6F;ZRE212..RHD..L202001-202004

SOUTH AFRICA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73230-33890-C0iZRE212..RHD..L201909-202208

BLACK,TRIM0#,1#,2#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
