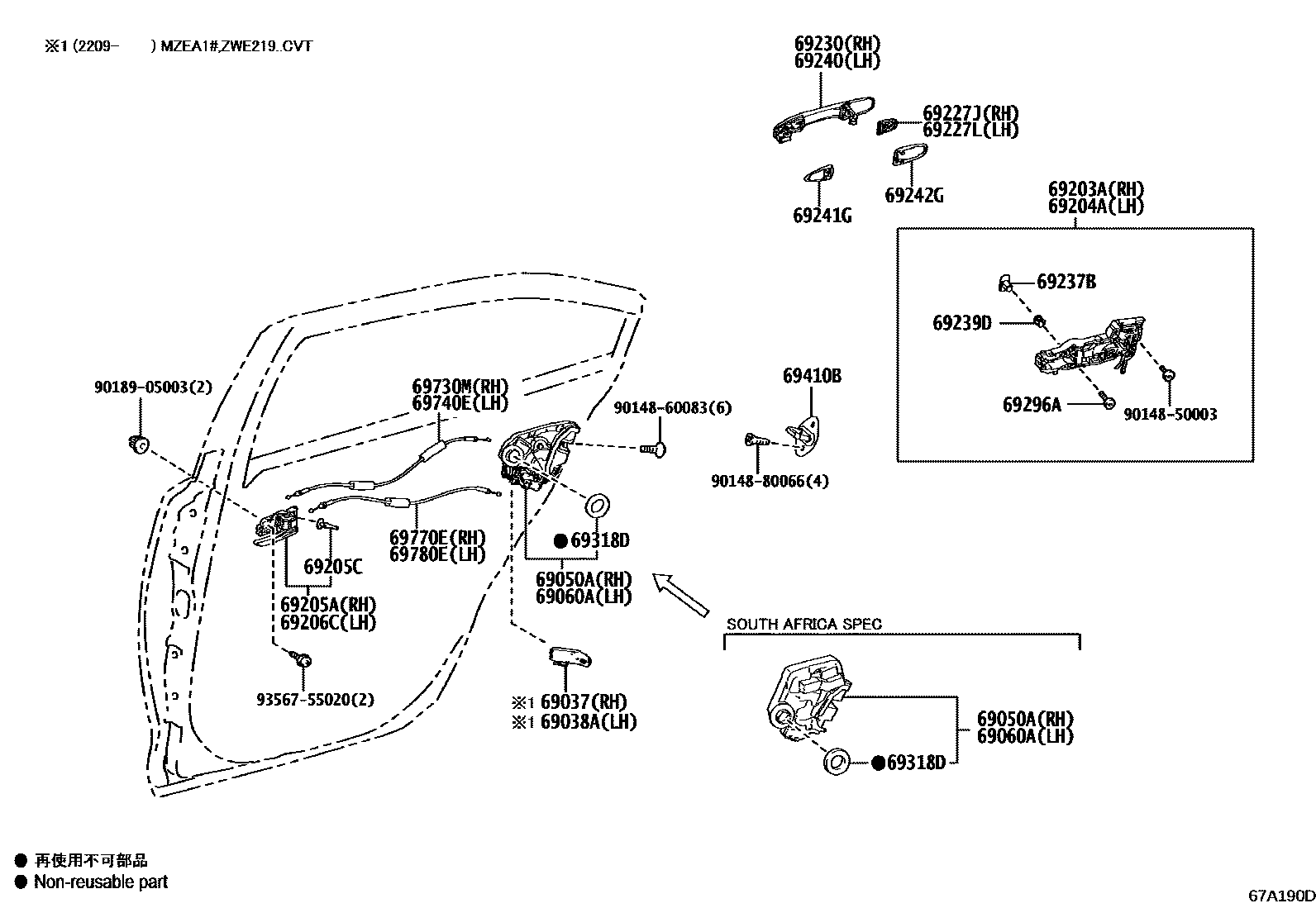

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-42010iMZEA12..D202209-202508

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-42010iMZEA18,ZWE219202209-202508

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-12440iMZEA12..D201909-202208

main69050-12470iMZEA18..RHD202209-202508

main69050-33131iZRE212;MZEA12,ZWE21#..L201901-202208

main69050-53040iZWE219..ARL202001-202508

SOUTH AFRICA SPEC

main69050-53040iZWE219..ARL202209-202409

MAURITIUS SPEC

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-12430iMZEA12..D201909-202208

main69060-12470iMZEA12..D202209-202508

main69060-33131iZRE212;MZEA12,ZWE211..L201901-202208

main69060-53040iZWE219..ARL202209-202409

MAURITIUS SPEC

main69060-53040iMZEA12..6F;MZEA12,ZRE212..RHD..L202001-202508

SOUTH AFRICA SPEC

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-12170iMZEA12..D201901-202507

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-12140iMZEA12,ZRE212,ZWE211201901-202507

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12250-A0iZRE212,ZWE211..L..(GEN,MXC)201901-202208

FROMAGE,TRIM0#

main69205-12250-A0iZWE219..MXC202209-202409

CENTRAL AMERICA 1 SPEC,FROMAGE,TRIM0#

main69205-12250-A0iZWE219..MXC202409

DOOR INSIDE HANDLE-SATIN PAINT,FROMAGE,TRIM0#

main69205-12250-A0iZWE219..MXC202209-202409

CENTRAL AMERICA 2 SPEC,FROMAGE,TRIM0#

main69205-12250-B0iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202107

LT.GRAY,TRIM1#

main69205-12250-B0iMZEA12,ZWE211..L..ARL201909-202004

LT.GRAY,TRIM10

main69205-12250-B1iMZEA12,ZWE211..L..ARL201909-202004

COOL GRAY,TRIM11,22

main69205-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20

main69205-12250-C0iMZEA12..D201901-202507

BLACK,TRIM2#

main69205-12250-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#

main69205-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20,21

main69205-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 1 SPEC,BLACK,TRIM2#

main69205-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 2 SPEC,BLACK,TRIM2#

main69205-15010-A1iZWE219..MXC202209-202409

FROMAGE,TRIM0#

main69205-15010-A2iZWE213202106-202208

FROMAGE,TRIM0#

main69205-15010-B4iZWE219..MXC202209-202409

LT.GRAY,TRIM1#

main69205-15010-C1iZWE219..MXC202106-202409

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iMZEA12,ZRE212,ZWE21#201901-202507

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12250-A0iZWE219..MXC202209-202409

CENTRAL AMERICA 1 SPEC,FROMAGE,TRIM0#

main69206-12250-A0iZWE219..MXC202409

DOOR INSIDE HANDLE-SATIN PAINT,FROMAGE,TRIM0#

main69206-12250-A0iZWE213201901-202208

FROMAGE,TRIM0#

main69206-12250-A0iZWE219..MXC202209-202409

CENTRAL AMERICA 2 SPEC,FROMAGE,TRIM0#

main69206-12250-B0iMZEA12,ZWE211..L..ARL201909-202004

LT.GRAY,TRIM10

main69206-12250-B0iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202107

LT.GRAY,TRIM1#

main69206-12250-B1iMZEA12,ZWE211..L..ARL201909-202004

COOL GRAY,TRIM11,22

main69206-12250-C0iMZEA12..D201901-202507

BLACK,TRIM2#

main69206-12250-C0iMZEA18;MZEA12,ZWE219..L..ARL202409

DOOR INSIDE HANDLE-SATIN PAINT,BLACK,TRIM2#

main69206-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20,21

main69206-12250-C0iMZEA12..L201909-202004

BLACK,TRIM20

main69206-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 1 SPEC,BLACK,TRIM2#

main69206-12250-C0iMZEA18..LHD;MZEA12,ZWE219..ARL202209-202409

CENTRAL AMERICA 2 SPEC,BLACK,TRIM2#

main69206-15010-A1iZWE219..MXC202209-202409

FROMAGE,TRIM0#

main69206-15010-A2iZWE213202106-202208

FROMAGE,TRIM0#

main69206-15010-B4iZWE219..MXC202209-202409

LT.GRAY,TRIM1#

main69206-15010-C1iZWE219..MXC202106-202409

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-47020iMZEA12..D201901-202507

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-47020iMZEA18;MZEA12,ZWE219..L201901-202507

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-47021-A0iMZEA12,ZRE212,ZWE211201901-202507

SUPER WHITE 2,040

main69211-47021-A1iMZEA12,ZRE212,ZWE211201901-202106

WHITE PEARL CS.,070

main69211-47021-A2iMZEA12,ZRE212,ZWE21#202106-202507

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iMZEA18..RHD201901-202507

SILVER ME.,1F7

main69211-47021-B5iMZEA12..D201901-202507

CELESTITE GRAY ME.,1K3

main69211-47021-C0iMZEA18..LHD;MZEA12,ZWE219202209-202507

ATTITUDE BLACK MC.,218

main69211-47021-C2iMZEA12,ZRE212,ZWE21#201901-202208

BLACK MC.,209

main69211-47021-D1iMZEA18;MZEA12,ZWE219..L202106-202507

RED MC.,3T3

main69211-47021-D2iMZEA12,ZRE212,ZWE211201901-202106

RED M.M.,3R3

main69211-47021-D3iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202106

SCARLET ME.,3U4

main69211-47021-J0iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202208

DK.BLUE M.M.,8W7

main69211-47021-J5iMZEA18..RHD201901-202507

DK. BLUE MC.,8X8

main69211-47021-P4iMZEA18..LHD;MZEA12,ZWE219202209-202507

DK.GRAY,1L7

69237BNUT, REAR DOOR HANDLE

main69237-62010iMZEA12..D201901-202507

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-47010iMZEA12..D201901-202507

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-47021-A0iMZEA12..D201901-202507

SUPER WHITE 2,040

main69211-47021-A1iMZEA12,ZRE212,ZWE211201901-202106

WHITE PEARL CS.,070

main69211-47021-A2iMZEA12..D202106-202507

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iMZEA12..D201901-202507

SILVER ME.,1F7

main69211-47021-B5iMZEA18;MZEA12,ZWE219..L201901-202507

CELESTITE GRAY ME.,1K3

main69211-47021-C0iMZEA18;MZEA12,ZWE219..L202209-202507

ATTITUDE BLACK MC.,218

main69211-47021-C2iMZEA12,ZRE212,ZWE211201901-202208

BLACK MC.,209

main69211-47021-D1iMZEA18..RHD202106-202507

RED MC.,3T3

main69211-47021-D2iMZEA12,ZRE212,ZWE21#201901-202106

RED M.M.,3R3

main69211-47021-D3iMZEA12,ZRE212,ZWE211201901-202106

SCARLET ME.,3U4

main69211-47021-J0iMZEA12,ZRE212,ZWE211..ARL,GEN201901-202208

DK.BLUE M.M.,8W7

main69211-47021-J5iMZEA18..LHD;MZEA12,ZWE219201901-202507

DK. BLUE MC.,8X8

main69211-47021-P4iMZEA18;MZEA12,ZWE219..L202209-202507

DK.GRAY,1L7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMZEA12..D201901-202507

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-47030iMZEA18;MZEA12,ZWE219..L201901-202507

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iMZEA12,ZRE212,ZWE211201901-202208

main90148-50006iMZEA12..D202209-202507

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEA18;MZEA12,ZWE219..L201901-202507

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iMZEA18;MZEA12,ZWE219..L201901-202507

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-12200iZWE219..ARL202209-202409

MAURITIUS SPEC

main69730-12200iZWE219..ARL202209-202508

SOUTH AFRICA SPEC

main69730-12200iMZEA12,ZRE212,ZWE211201901-202208

main69730-12201iMZEA12..D202209-202508

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-12200iMZEA12,ZWE219..L..ARL202209-202508

SOUTH AFRICA SPEC

main69730-12200iZWE219..ARL202209-202409

MAURITIUS SPEC

main69730-12200iMZEA12,ZRE212,ZWE211201901-202208

main69730-12201iMZEA18..LHD;MZEA12,ZWE219202209-202508

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-12280iMZEA12,ZRE212,ZWE211201901-202208

main69770-12281iMZEA12..L202209-202508

main69770-12310iZWE219..ARL202209-202409

MAURITIUS SPEC

main69770-12310iZWE219..ARL202001-202508

SOUTH AFRICA SPEC

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-12280iMZEA12,ZRE212,ZWE211201901-202208

main69770-12281iMZEA12..D202209-202508

main69770-12310iZWE219..ARL202209-202409

MAURITIUS SPEC

main69770-12310iZWE219..ARL202001-202508

SOUTH AFRICA SPEC

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

29 parts on this diagram · 1 diagram in section
