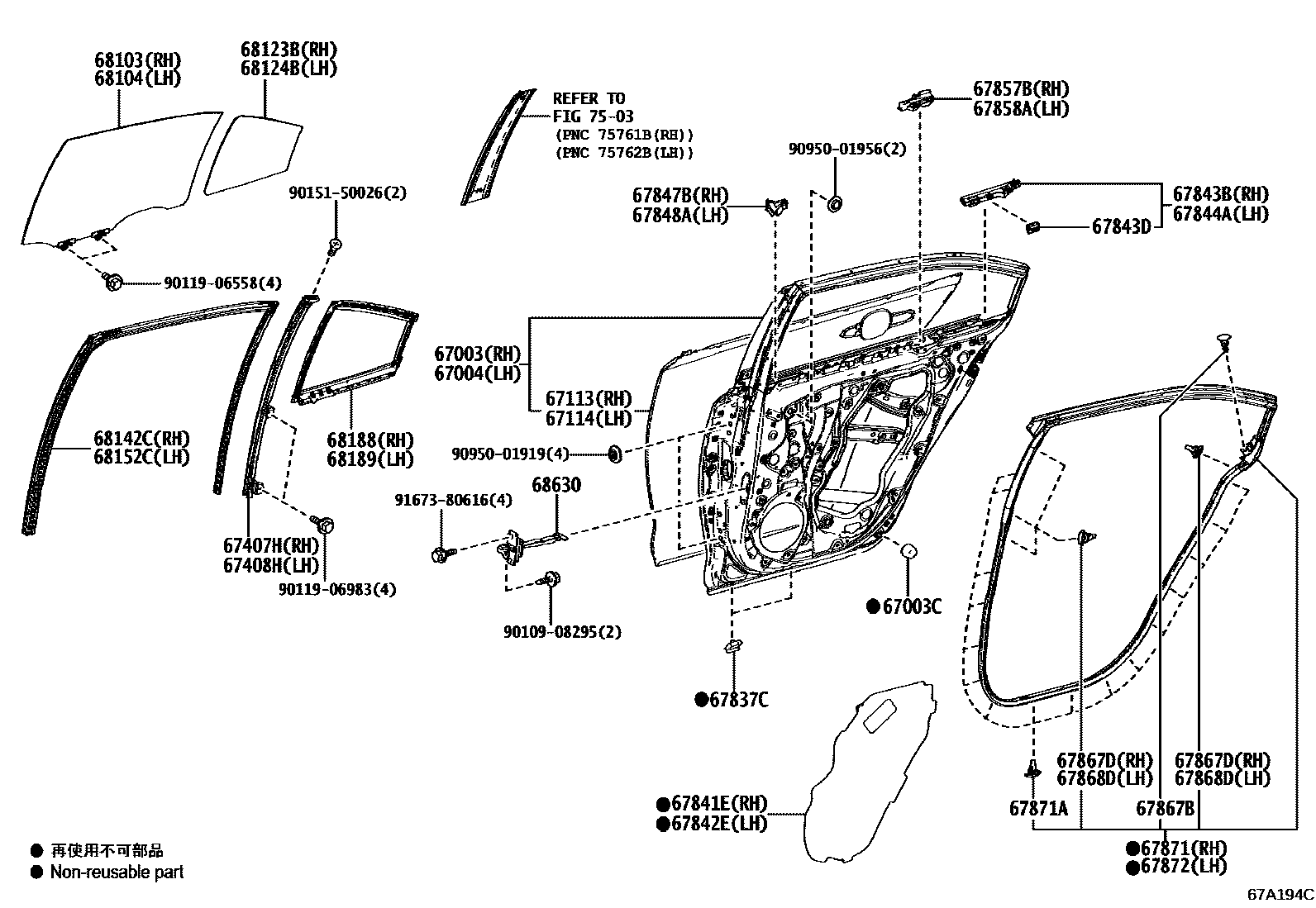

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
SOUTH AFRICA SPEC
REAR SIDE GLASS-PRIVACY
BACK GLASS-PRIVACY
68104GLASS SUB-ASSY, REAR DOOR, LH
SOUTH AFRICA SPEC
BACK GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
SOUTH AFRICA SPEC
REAR SIDE GLASS-PRIVACY
BACK GLASS-PRIVACY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
SOUTH AFRICA SPEC
BACK GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630CHECK ASSY, REAR DOOR
7503
9010908295
9011906558
9011906983
9015150026
9095001919
9095001956
9167380616
40 parts on this diagram · 2 diagrams in section
