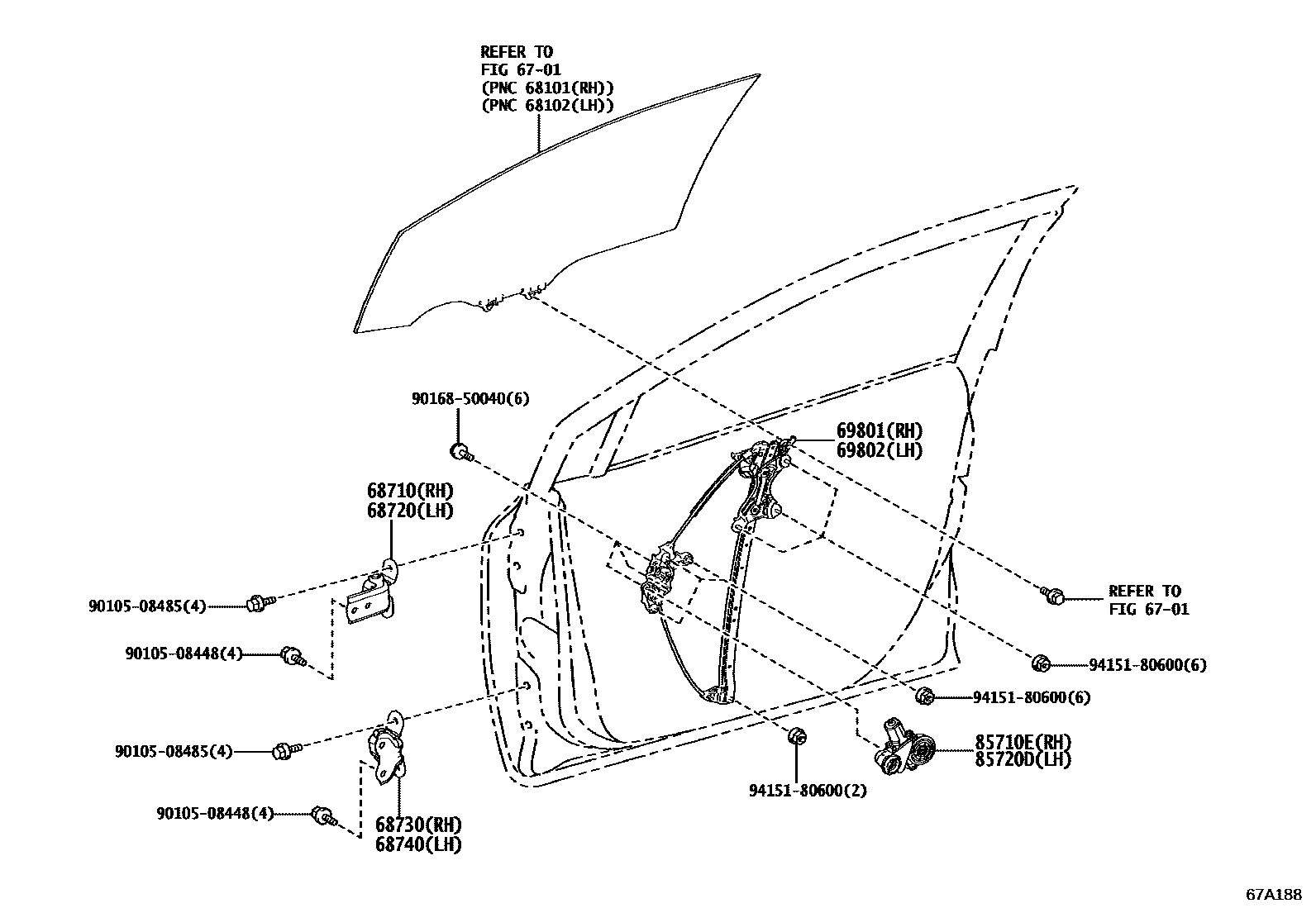

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMZEA12..D202409-202507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMZEA12..D202409-202507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMZEA12..D202409-202507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMZEA12..D202409-202507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12271iMZEA12,ZRE212,ZWE211201901-202002

main69801-12272iMZEA12,ZRE212,ZWE211202003-202004

main69801-12273iMZEA12..D202409-202507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12271iMZEA12,ZRE212,ZWE211201901-202002

main69802-12272iMZEA12,ZRE212,ZWE211202003-202004

main69802-12273iMZEA18..RHD202209-202307

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iMZEA12,ZRE212,ZWE21#202004-202208

main85710-12531iMZEA1#,ZWE219202209-202306

main85710-12560iMZEA18..RHD202306-202307

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iMZEA12,ZRE212,ZWE211201901-202004

main85720-12521iMZEA1#,ZWE219202209-202306

main85720-12570iMZEA18;MZEA12,ZWE219..L202409

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
