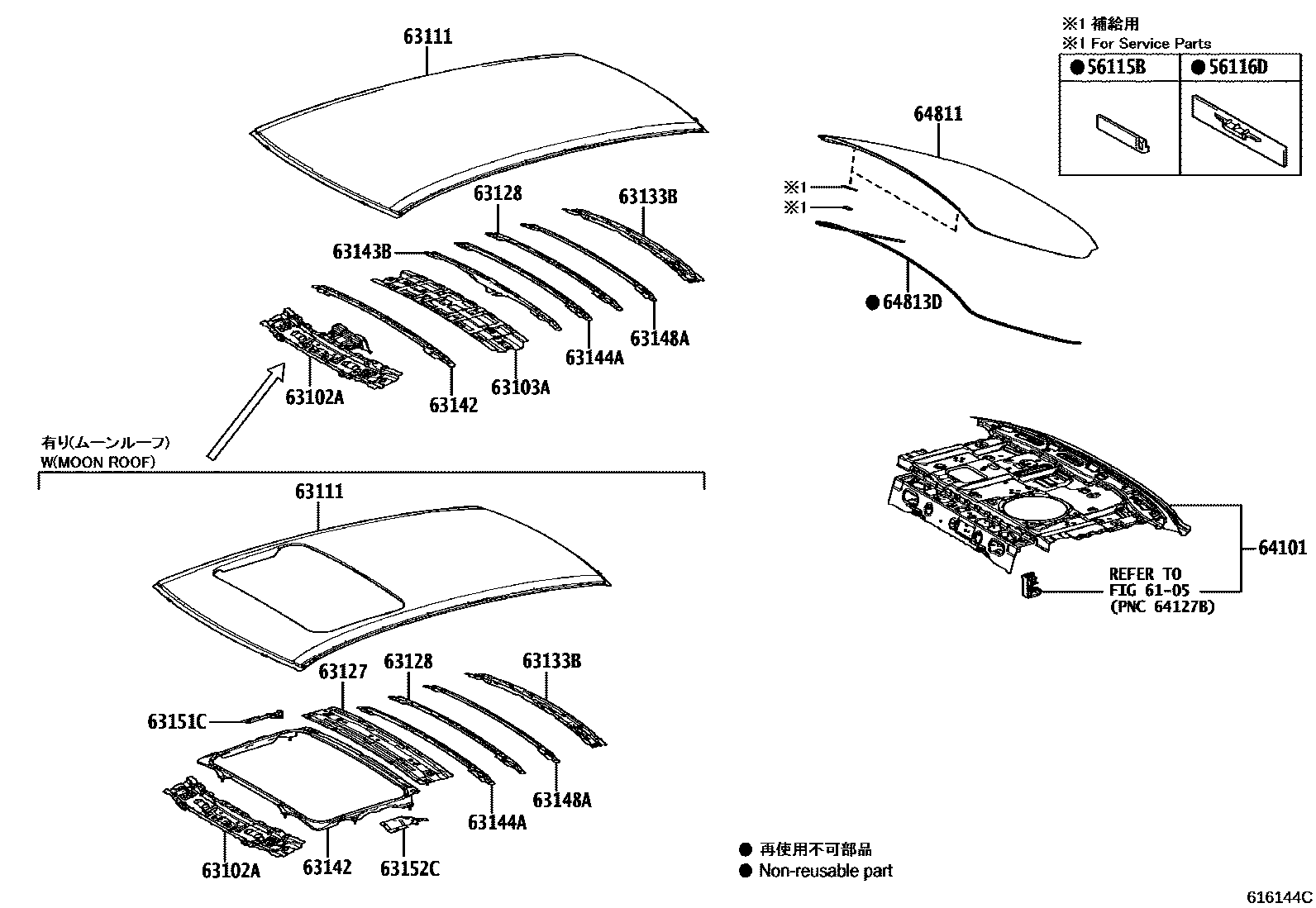

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
6105
63102APANEL SUB-ASSY, WINDSHIELD HEADER
SOUTH AFRICA SPEC&MOON ROOF-WITH
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63111PANEL, ROOF
MAURITIUS SPEC
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
HIGH GRADE PACKAGE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
63127REINFORCEMENT, ROOF PANEL, NO.5
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
63128REINFORCEMENT, ROOF PANEL, NO.6
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63151CFRAME, ROOF OPENING SIDE, RH
SOUTH AFRICA SPEC&MOON ROOF-WITH
63152CFRAME, ROOF OPENING SIDE, LH
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
MAURITIUS SPEC
64813DDAM, BACK WINDOW GLASS ADHESIVE
18 parts on this diagram · 2 diagrams in section
