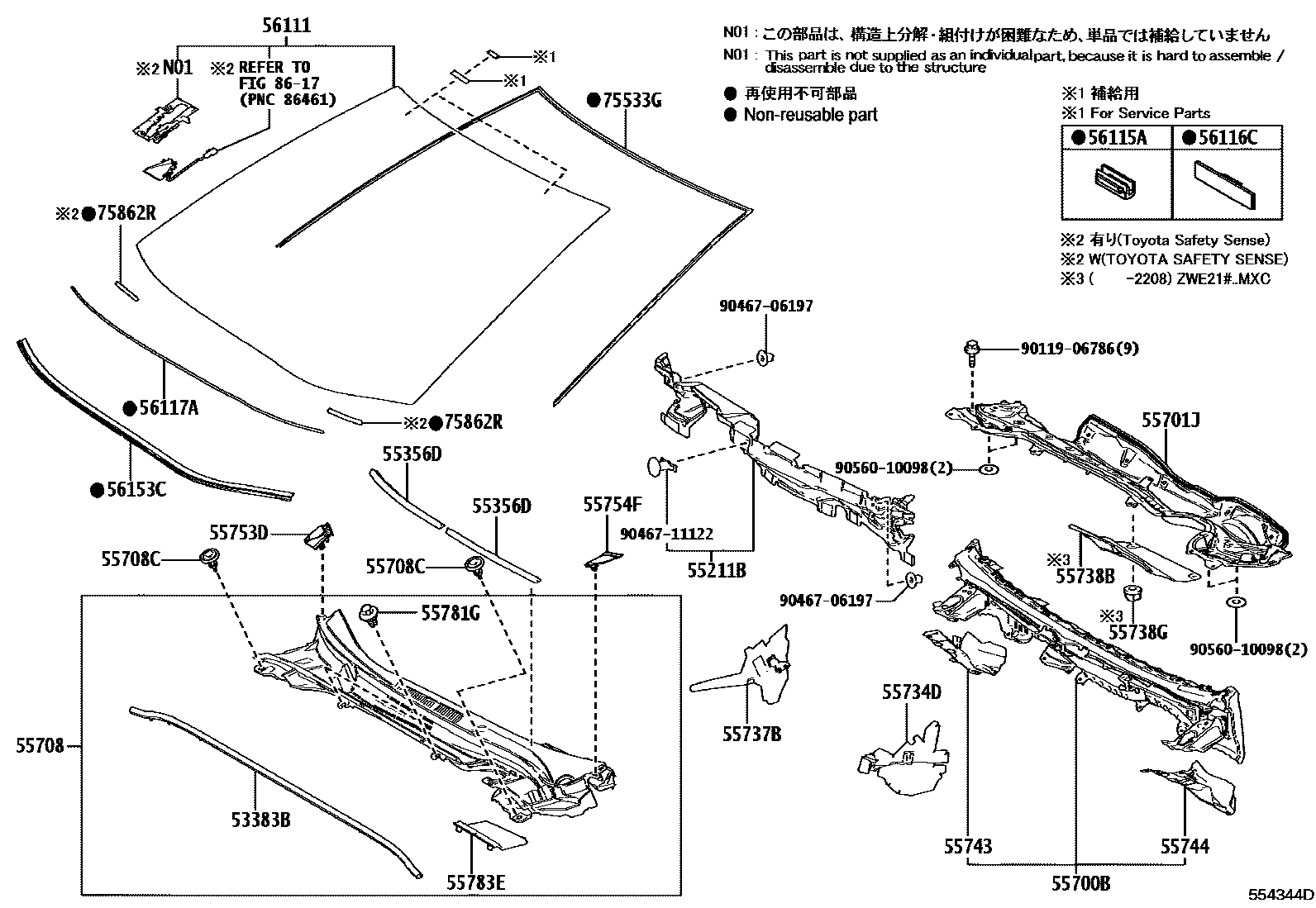

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55734DPLATE, WATER GUARD
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55738GCLIP, FRONT PANEL COVER PROTECTOR
BLACK
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
56111GLASS, WINDSHIELD
CENTRAL AMERICA 1 SPEC
CENTRAL AMERICA 2 SPEC
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
HIGH GRADE PACKAGE&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&MULTI INFORMATION DISPLAY-12.3 INCH
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725,CENTRAL AMERICA 1 SPEC
*D,L=1298 OR 725
*D,L=1298 OR 725,CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
*D,L=1298 OR 725,SOUTH AFRICA SPEC
*D,L=1298 OR 725,SOUTH AFRICA SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1298 OR 725,MAURITIUS SPEC
*D,L=1298 OR 725,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1298 OR 725,CENTRAL AMERICA 2 SPEC
*D,L=1298 OR 725,FIJI SPEC
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,HIGH GRADE PACKAGE&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&MULTI INFORMATION DISPLAY-12.3 INCH
*D,L=1298 OR 725,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
CENTRAL AMERICA 1 SPEC
8617
9011906786
9046706197
9046711122
9056010098
29 parts on this diagram · 3 diagrams in section
