FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1AIR GUIDE & RADIATOR SUPPORT 0003 1AIR GUIDE & RADIATOR SUPPORT 0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL

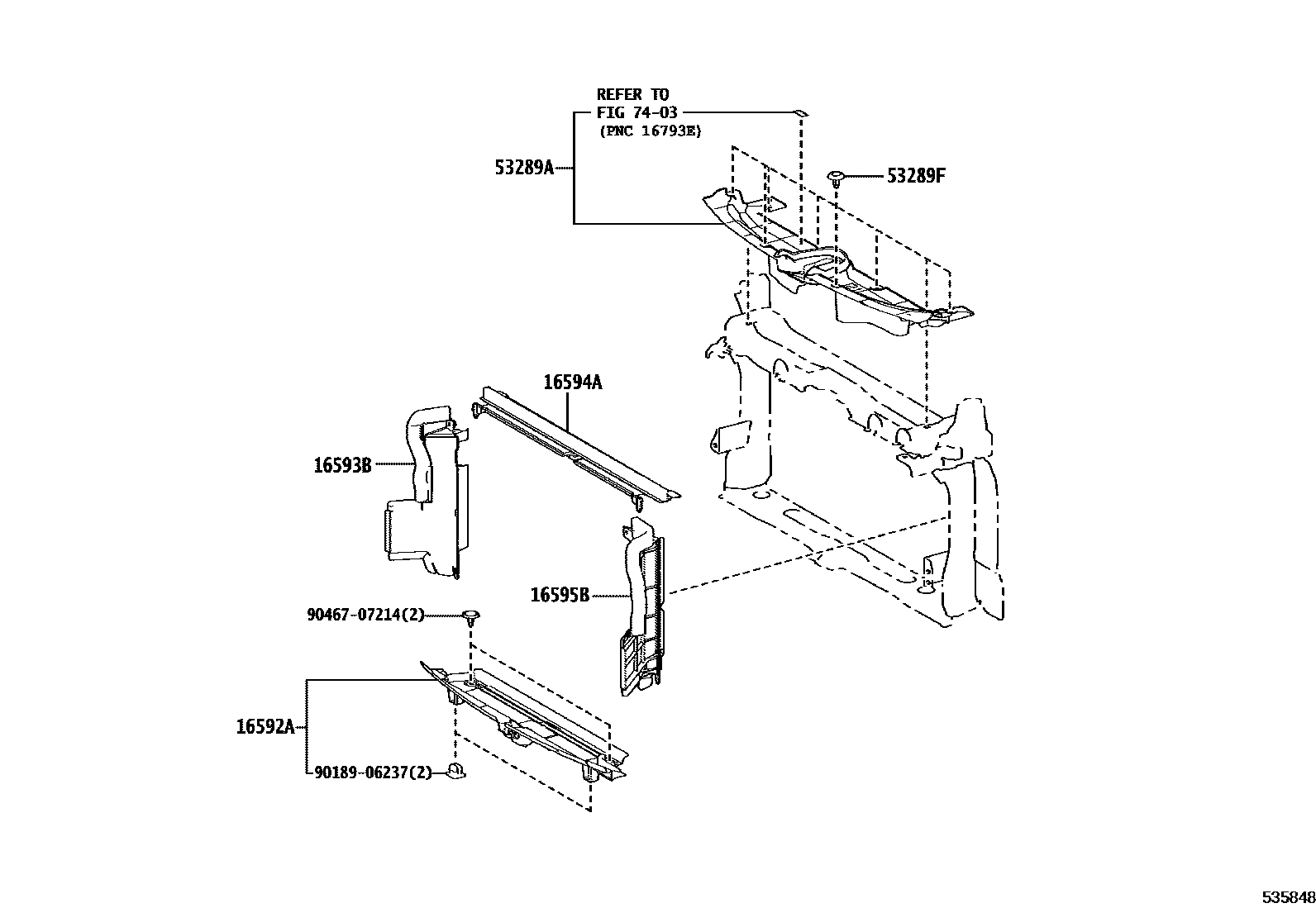

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010iM20AFKS,2ZRFXE..MZEA12,ZWE211201901-202001

sub16592-24050

main16592-24050iM20AFKS..MZEA12..D202002-202507

main16592-37070i2ZRFAE..ZRE212201901-202208

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020iM20AFKS..MZEA18;M20AFKS..MZEA12..L201909-202507

main16593-37130i2ZRFAE..ZRE212201901-202208

main16593-37150i2ZRFXE..ZWE21#201901-202208

main16593-37300i2ZRFXE..ZWE219202209-202409

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24010iM20AFKS..MZEA12201909-202208

main16594-24040iM20AFKS..MZEA18..LHD;M20AFKS,2ZRFXE..MZEA12,ZWE219202209-202507

main16594-37010i2ZRFXE..ZWE21#201901-202208

main16594-37040i2ZRFAE..ZRE212201901-202208

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020iM20AFKS..MZEA12..D201909-202507

main16595-37130i2ZRFAE..ZRE212201901-202208

main16595-37160i2ZRFXE..ZWE21#201901-202208

main16595-37280i2ZRFXE..ZWE219202209-202409

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12080iZWE211201901-202208

main53289-12090iMZEA12,ZRE212201901-202208

main53289-12120iZWE219202209-202409

main53289-12130iMZEA12;MZEA18..LHD202209-202507

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214iZWE21#202107-202208

TMC(TSUTSUMI)

main90467-07217iMZEA12,ZRE212201901-202507

main90467-07217iZWE21#202107-202208

TAKAOKA

7403

9018906237

main90189-06237

9046707214

main90467-07214

9 parts on this diagram · 6 diagrams in section
