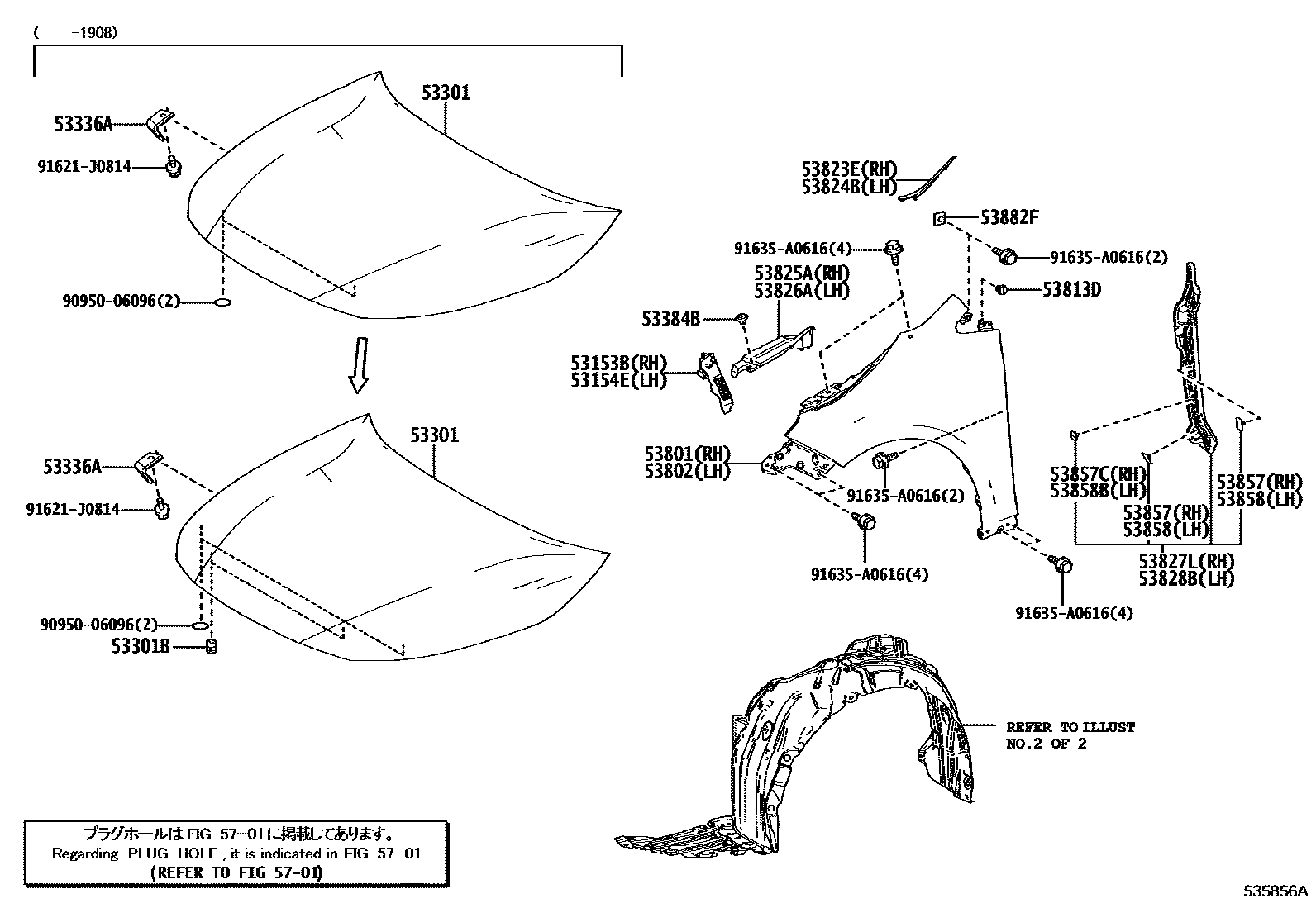

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-12040iMZEA18;MZEA12,ZWE219..L¥1,970201901-202507

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-12030iMZEA12..D¥1,970201901-202507

53301HOOD SUB-ASSY

main53301-12B50iZRE212,ZWE211¥50,500201901-201908

main53301-12B70iMZEA12,ZRE212,ZWE21#¥36,800201908-202507

53301BCUSHION, HOOD BUMPER

main90541-09117iMZEA12,ZRE212,ZWE211¥100201908-202507

53336ABRACKET, HOOD STAY

main53336-12020iZRE212,ZWE211¥270201901-201908

main53336-12030iMZEA18..LHD;MZEA12,ZWE219¥270201908-202507

53384BCUSHION, HOOD, CENTER

main53384-78010iMZEA12..D¥370201901-202507

53801FENDER SUB-ASSY, FRONT RH

main53801-12B10iMZEA12..D¥24,400201901-202507

53802FENDER SUB-ASSY, FRONT LH

main53802-12B10iMZEA12..D¥24,400201901-202507

53813DEXTENSION, FRONT FENDER

main53813-48011iMZEA12,ZRE212,ZWE211¥80201901-202507

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12060iMZEA12..D¥500201901-202507

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12050iMZEA12..D¥500201901-202507

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12100iMZEA12..D¥1,090201901-202507

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12080iMZEA12..D¥1,090201901-202507

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12150iMZEA12..D¥1,820201901-202507

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12150iMZEA12..D¥1,820201901-202507

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZEA18..LHD;MZEA12,ZWE219¥100201901-202507

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iMZEA12,ZRE212,ZWE211¥60201901-202507

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMZEA12..D¥100201901-202507

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMZEA18;MZEA12,ZWE219..L¥60201901-202507

53882FSEAL, FRONT FENDER

main53882-33060iMZEA12..D¥60201901-202507

5701

9095006096

main90950-06096¥100

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

24 parts on this diagram · 2 diagrams in section
