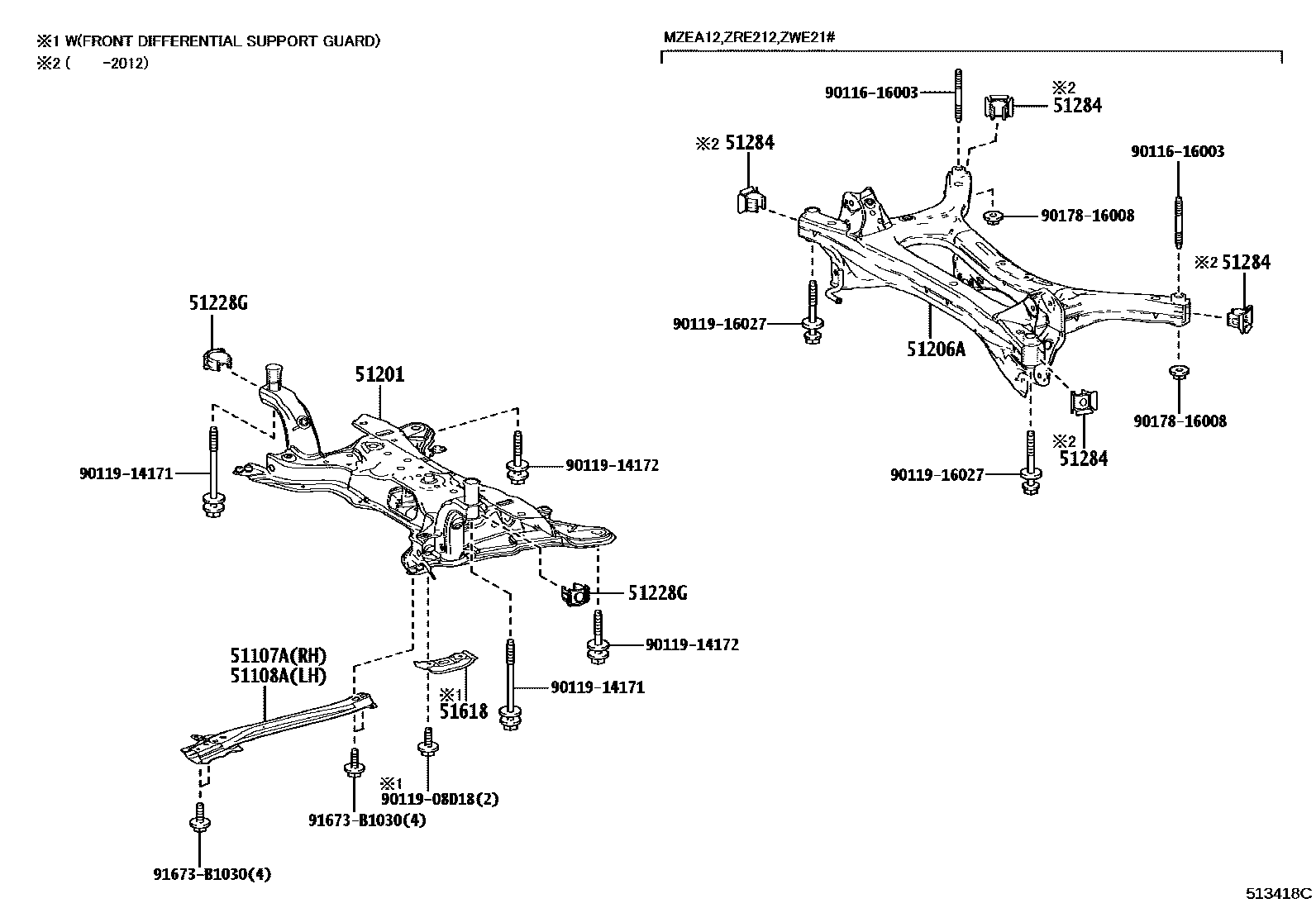

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER 0009 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47010iZWE219..ARL201909-202308

CENTRAL AMERICA 1 SPEC

main51107-47010iMZEA18,ZWE219..LHD202209-202409

MAURITIUS SPEC

main51107-47010iZWE219..ARL202209-202409

SOUTH AFRICA SPEC

main51107-47010iZRE212,ZWE211..GEN,MXC201901-202307

main51107-47010iZWE211..ARL201909-202308

CENTRAL AMERICA 2 SPEC

main51107-47020iMZEA12,ZWE219..L..ARL201909-202507

main51107-47020iZRE212..RHD..L202001-202208

SOUTH AFRICA SPEC

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47010iMZEA18,ZWE219..LHD202209-202409

MAURITIUS SPEC

main51108-47010iMZEA18,ZWE219..LHD202209-202409

SOUTH AFRICA SPEC

main51108-47010iZRE212,ZWE211..GEN,MXC201901-202307

main51108-47010iZWE211..ARL201909-202308

CENTRAL AMERICA 1 SPEC

main51108-47010iZWE211..ARL201909-202308

CENTRAL AMERICA 2 SPEC

main51108-47020iZRE212..RHD..L202001-202208

SOUTH AFRICA SPEC

main51108-47020iMZEA12..D201909-202507

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47071iZRE212,ZWE211201901-201902

sub51201-47072

main51201-47072iMZEA18..RHD201903-202507

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12200iMZEA12,ZRE212,ZWE211201901-202011

sub51206-12201

main51206-12201iMZEA12,ZWE219202012-202507

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMZEA12,ZRE212,ZWE21#201901-202507

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZEA12,ZRE212,ZWE211201901-202012

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iZRE212..RHD..L201909-202308

CENTRAL AMERICA 2 SPEC

main51618-47010iZRE212,ZWE21#..GEN,MXC201909-202308

CENTRAL AMERICA 1 SPEC

main51618-47010iZRE212,ZWE21#..GEN,MXC201909-202409

SOUTH AFRICA SPEC

main51618-47010iMZEA18,ZWE219..LHD202209-202409

MAURITIUS SPEC

main51618-47010iZRE212,ZWE211..GEN,MXC201901-202307

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

14 parts on this diagram · 5 diagrams in section
