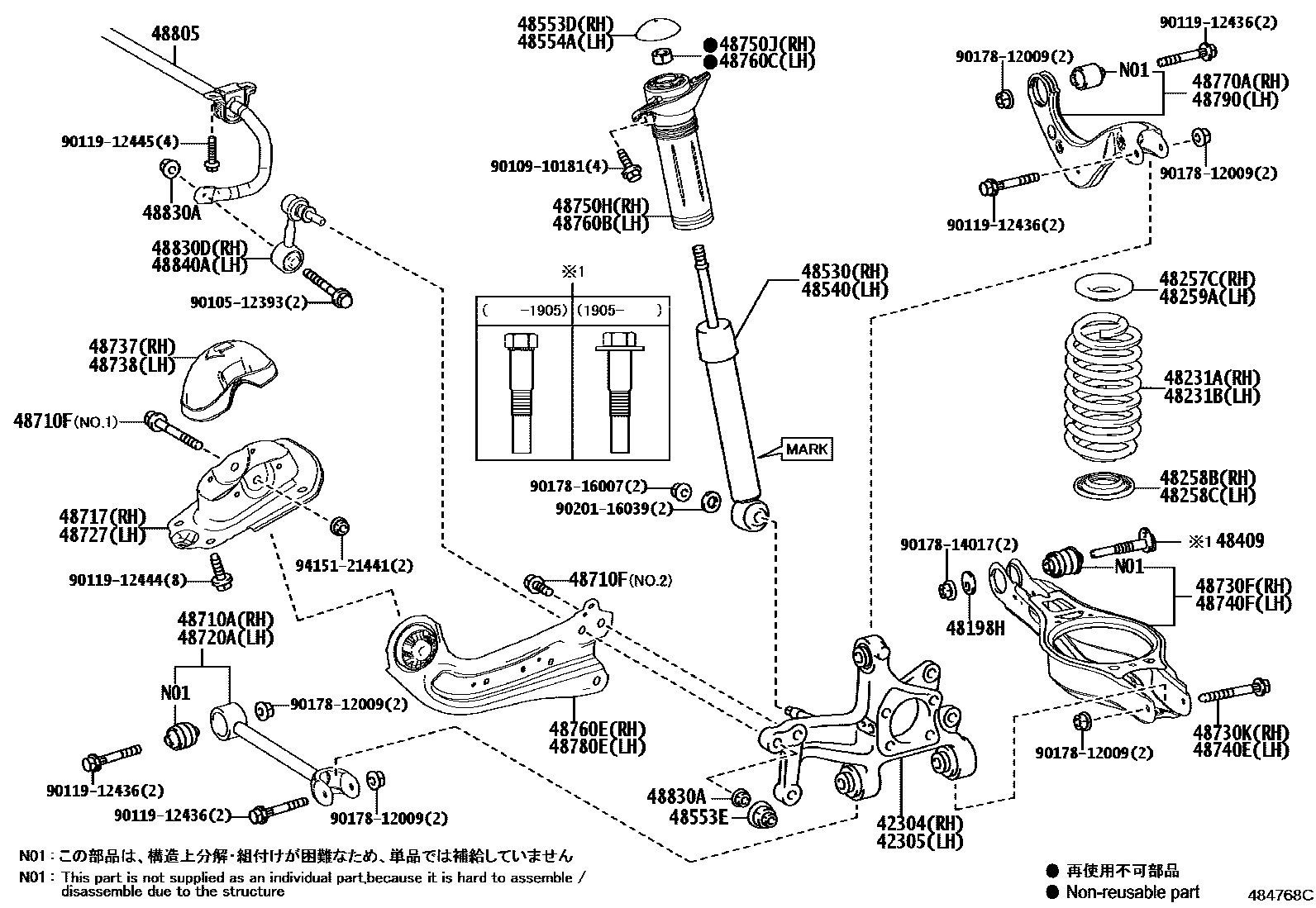

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-47050iMZEA12,ZRE212,ZWE211201901-202507

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-47050iMZEA12,ZRE212,ZWE21#201901-202507

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iMZEA12,ZWE219201901-202507

48231ASPRING, COIL, REAR RH

main48231-12E40iMZEA12,ZWE211..ARL202001-202208

SOUTH AFRICA SPEC

main48231-12E40iMZEA12,ZWE211..ARL201909-202004

main48231-12E50iZRE212201901-202208

main48231-12E60iZWE211..ARL202106-202208

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12E60iZWE211..MXC201901-202208

main48231-12E60iZWE211..ARL201909-202106

CENTRAL AMERICA 1 SPEC

main48231-12E60iZWE211..ARL201909-202106

CENTRAL AMERICA 2 SPEC

main48231-12E60iZWE211..ARL202106-202208

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K60iZWE219..ARL202209-202409

main48231-12K70iZWE219..ARL202209-202409

TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main48231-12K70iMZEA12..D202409-202507

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..MXC202209-202409

SOUTH AFRICA SPEC

main48231-12L20iMZEA18..LHD202209-202409

48231BSPRING, COIL, REAR LH

main48231-12E40iMZEA12,ZWE211..ARL201909-202004

main48231-12E40iZRE212..RHD..L202001-202208

SOUTH AFRICA SPEC

main48231-12E50iZRE212201901-202208

main48231-12E60iZWE211..ARL201909-202106

CENTRAL AMERICA 2 SPEC

main48231-12E60iZWE211..ARL201909-202106

CENTRAL AMERICA 1 SPEC

main48231-12E60iZWE211..ARL202106-202208

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12E60iZWE211..ARL202106-202208

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12E60iZWE21#..MXC201901-202208

main48231-12K60iZWE219..ARL202209-202409

main48231-12K70iZWE219..ARL202209-202409

TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main48231-12K70iMZEA12..D202409-202507

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..MXC202209-202409

SOUTH AFRICA SPEC

main48231-12K80iZWE219..MXC202209-202409

MAURITIUS SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 1 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-205/55R16 ALMINUM WHEEL ROUGH ROAD

main48231-12K80iZWE219..ARL202209-202308

CENTRAL AMERICA 2 SPEC&TIRE&DISK WHEEL-195/65R15 ALMINUM WHEEL ROUGH ROAD

main48231-12L20iMZEA18..RHD202209-202409

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iMZEA18;MZEA12,ZWE219..L201901-202507

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-16030iMZEA18..RHD202209-202409

main48258-47010iMZEA12,ZRE212,ZWE211201901-202507

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-16030iMZEA18..RHD202209-202409

main48258-47010iMZEA12,ZRE212,ZWE21#201901-202507

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iMZEA18;MZEA12,ZWE219..L201901-202507

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iMZEA12,ZWE219201901-202507

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12P50iMZEA18..LHD202209-202409

main48530-80881iZRE212201901-202011

MARK 48530-12J60

sub48530-80A94

main48530-80882iZWE211201901-202011

MARK 48530-12J70

sub48530-80A95

main48530-80883iMZEA12201909-202012

MARK 48530-12J90

main48530-80A04iMZEA12..L201909-202011

MARK 48530-12G20,HIGH GRADE PACKAGE

sub48530-80A96

main48530-80A04iMZEA12..L;MZEA12..6F202001-202011

MARK 48530-12G20,SOUTH AFRICA SPEC

sub48530-80A96

main48530-80A94iZRE212202012-202208

MARK 48530-12J61

main48530-80A95iZWE21#202012-202208

MARK 48530-12J71

main48530-80A96iMZEA12202012-202208

MARK 48530-12G21

main48530-80B21iZWE219202209-202409

MARK 48530-12M30

main48530-80B22iMZEA12..L202209-202409

MARK 48530-12P00,TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main48530-80B22iZWE219..ARL202209-202507

MARK 48530-12P00

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-12P50iMZEA18..LHD202209-202409

main48530-80881iZRE212..LHD;ZRE212..RHD..D201901-202011

MARK 48530-12J60

sub48530-80A94

main48530-80882iZWE211201901-202011

MARK 48530-12J70

sub48530-80A95

main48530-80883iMZEA12201909-202012

MARK 48530-12J90

main48530-80A04iMZEA12..L;MZEA12..6F202001-202011

MARK 48530-12G20,SOUTH AFRICA SPEC

sub48530-80A96

main48530-80A04iMZEA12..L201909-202011

MARK 48530-12G20,HIGH GRADE PACKAGE

sub48530-80A96

main48530-80A94iZRE212202012-202208

MARK 48530-12J61

main48530-80A95iZWE21#202012-202208

MARK 48530-12J71

main48530-80A96iMZEA12202012-202208

MARK 48530-12G21

main48530-80B21iZWE219202209-202409

MARK 48530-12M30

main48530-80B22iZWE219..ARL202209-202409

MARK 48530-12P00,TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main48530-80B22iZWE219..ARL202209-202507

MARK 48530-12P00

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iMZEA12,ZWE219..L201901-202507

48553ECAP

main48553-52030iMZEA12..D201901-202507

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iMZEA12,ZWE219201901-202507

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-47010iMZEA12,ZRE212,ZWE211201901-202507

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iMZEA12,ZWE219..L201901-202507

NO.1

main90105-14197iMZEA12..D201901-202507

NO.2

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-16011iMZEA18202209-202409

main48717-47020iMZEA12,ZRE212,ZWE211201901-202507

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-47010iMZEA12,ZRE212,ZWE21#201901-202507

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-16010iMZEA18202209-202409

main48727-47020iMZEA12,ZRE212,ZWE211201901-202507

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-47010iMZEA12,ZRE212,ZWE21#201901-202507

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMZEA12,ZWE219..L201901-202507

48737COVER, REAR SUSPENSION ARM, RH

main48753-47010iMZEA12..D201901-202507

48738COVER, REAR SUSPENSION ARM, LH

main48753-47020iMZEA12..D201901-202507

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMZEA12,ZRE212,ZWE211201901-202507

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-47010iMZEA12,ZRE212,ZWE21#201901-202507

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-12050iZRE212,ZWE211201901-201906

sub48750-76010

main48750-16130iMZEA18..RHD202209-202409

main48750-76010iMZEA12,ZWE219201907-202507

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iMZEA12,ZRE212,ZWE21#201901-202507

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-12050iZRE212,ZWE211201901-201906

sub48750-76010

main48750-76010iMZEA12,ZWE219..L201907-202507

main48760-16010iMZEA18202209-202409

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iMZEA12,ZWE219..L201901-202507

48760EARM ASSY, TRAILING, REAR RH

main48760-47010iMZEA12,ZWE219..L201901-202507

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-47010iMZEA12,ZWE219..L201901-202507

48780EARM ASSY, TRAILING, REAR LH

main48780-47010iMZEA12,ZRE212,ZWE21#201901-202507

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-47010iMZEA12,ZRE212,ZWE21#201901-202507

48805BAR SUB-ASSY, REAR STABILIZER

main48805-12110iZWE219201901-202409

main48805-12120iMZEA12201909-202208

main48805-12140iZWE219..ARL202209-202409

TIRE&DISK WHEEL-225/40R18 SUMMER TIRE ALMINUM WHEEL

main48805-12140iMZEA12..D202409-202507

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241iMZEA12,ZRE212,ZWE211201901-202507

48830DLINK ASSY, REAR STABILIZER, RH

main48830-16020iMZEA12..D202209-202507

main48830-47010iMZEA12,ZRE212,ZWE211201901-202208

48840ALINK ASSY, REAR STABILIZER, LH

main48830-16020iMZEA12..D202209-202507

main48830-47010iMZEA12,ZRE212,ZWE211201901-202208

9010512393

main90105-12393

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

9415121441

main94151-21441

48 parts on this diagram · 2 diagrams in section
