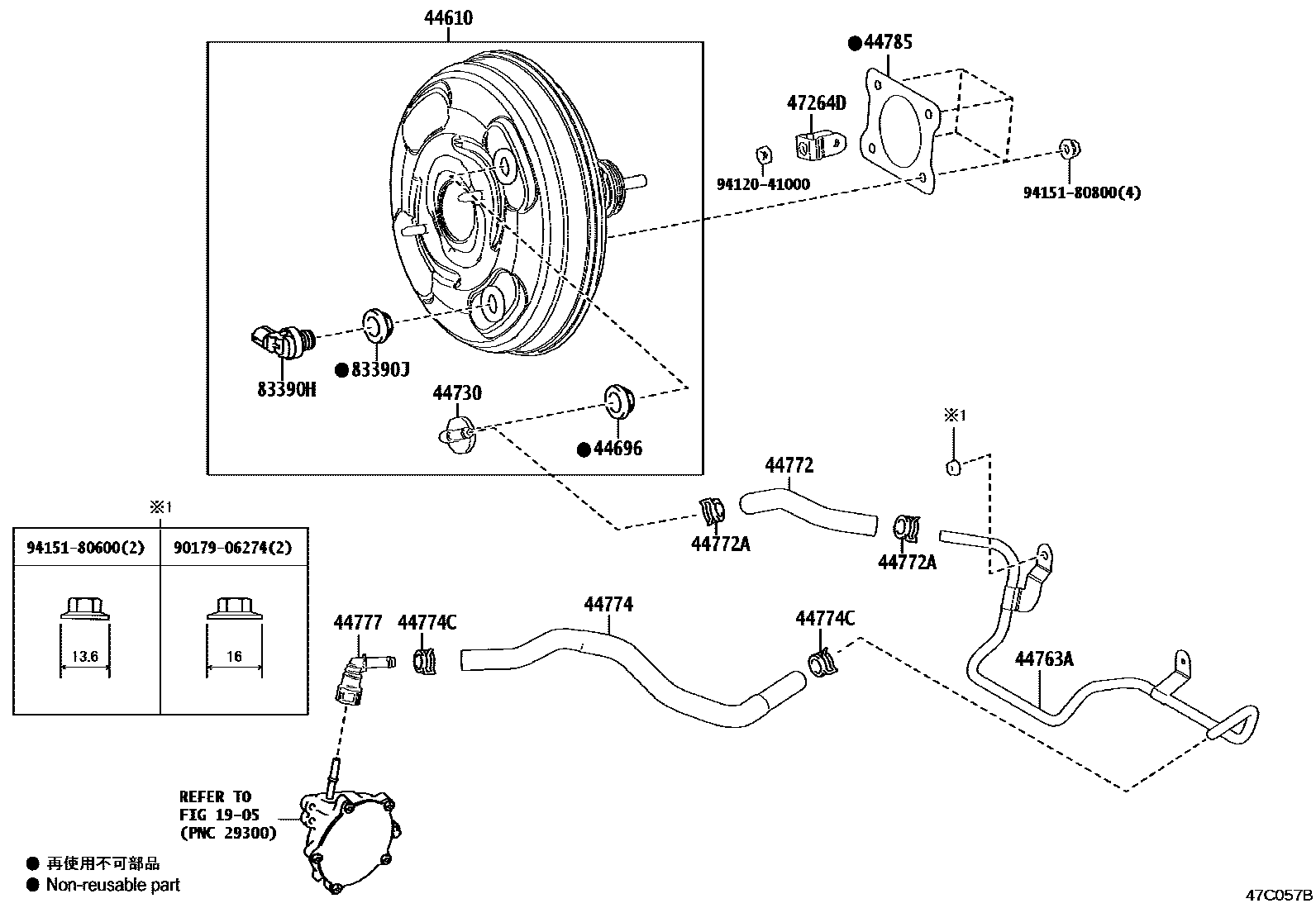

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1905

44610BOOSTER ASSY, BRAKE

main44610-12M70iZRE212..LHD201901-202409

main44610-12M90iMZEA12..D¥33,200201909-202507

44696GROMMET, CHECK VALVE

main90480-24439iMZEA18;MZEA12..L¥390201901-202507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMZEA12..D¥1,300201901-202507

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12590iMZEA12¥1,510201909-202507

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12730iZRE212..LHD201901-202208

main44772-12780iMZEA18202209-202409

main44772-12810iMZEA18..RHD¥520201909-202507

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMZEA12..D¥230201901-202507

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12860iMZEA12¥1,250201909-202507

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMZEA12..L¥230201909-202507

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA12..D¥390201909-202507

44785GASKET, BRAKE BOOSTER

main44785-12040iMZEA12..D¥200201901-202507

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMZEA12..L¥250202406-202507

main47264-52060iZRE212..LHD..CVT201901-202409

main47264-63010iMZEA18..RHD¥250201909-202405

main47264-68010iZRE212..6F¥300201901-202208

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA12,ZRE212¥3,780201901-202507

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iMZEA12..D¥390201901-202507

9017906274

main90179-06274¥70

9412041000

main94120-41000¥80

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

18 parts on this diagram · 4 diagrams in section
