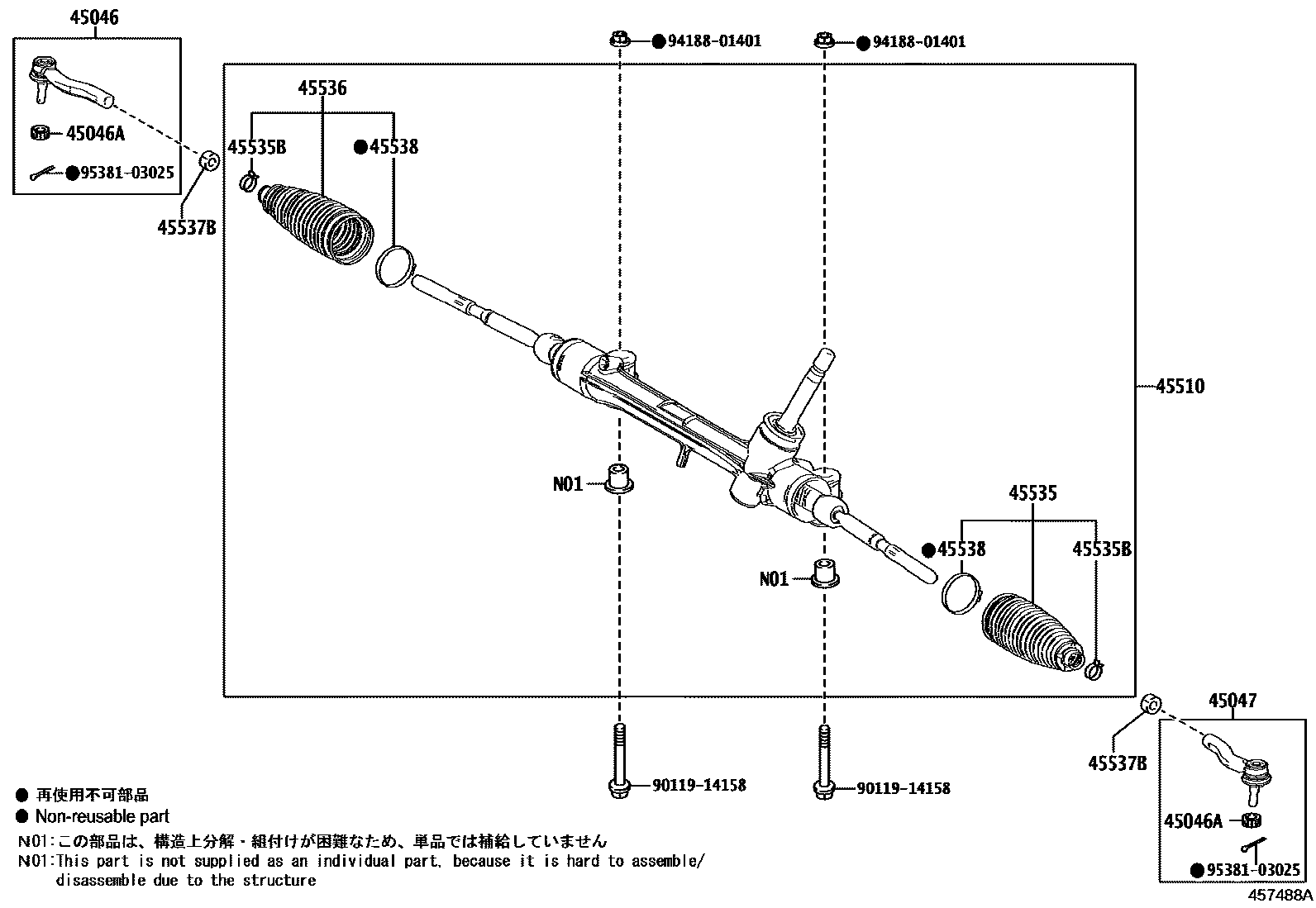

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iMZEA12,ZRE212,ZWE21#202004-202208

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMZEA12,ZRE212,ZWE211201901-202004

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iMZEA12,ZRE212,ZWE211201901-202004

45510GEAR ASSY, STEERING

main45510-12530iZRE212,ZWE211..LHD201901-202004

main45510-12540iMZEA12,ZRE212,ZWE211..RHD201909-202004

main45510-12580iMZEA18,ZWE219..LHD202409

main45510-12600iMZEA12..D202409-202507

main45510-12650supersedes 45510-12600iMZEA12..L202209-202409

HIGH GRADE PACKAGE

main45510-47150supersedes 45510-12600iMZEA12..L201909-202004

HIGH GRADE PACKAGE

45535BOOT, STEERING RACK, NO.1

main45535-59075iMZEA18..RHD202209-202307

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iMZEA12..D202409-202507

45536BOOT, STEERING RACK, NO.2

main45535-59075iMZEA12,ZRE212,ZWE21#202004-202208

45537BNUT, RACK END LOCK

main90178-16001×2iMZEA18;MZEA12,ZWE219..L202409

45538RETAINER, STEERING RACK BOOT

main45538-48020×2iMZEA12..D202409-202507

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

12 parts on this diagram · 2 diagrams in section
