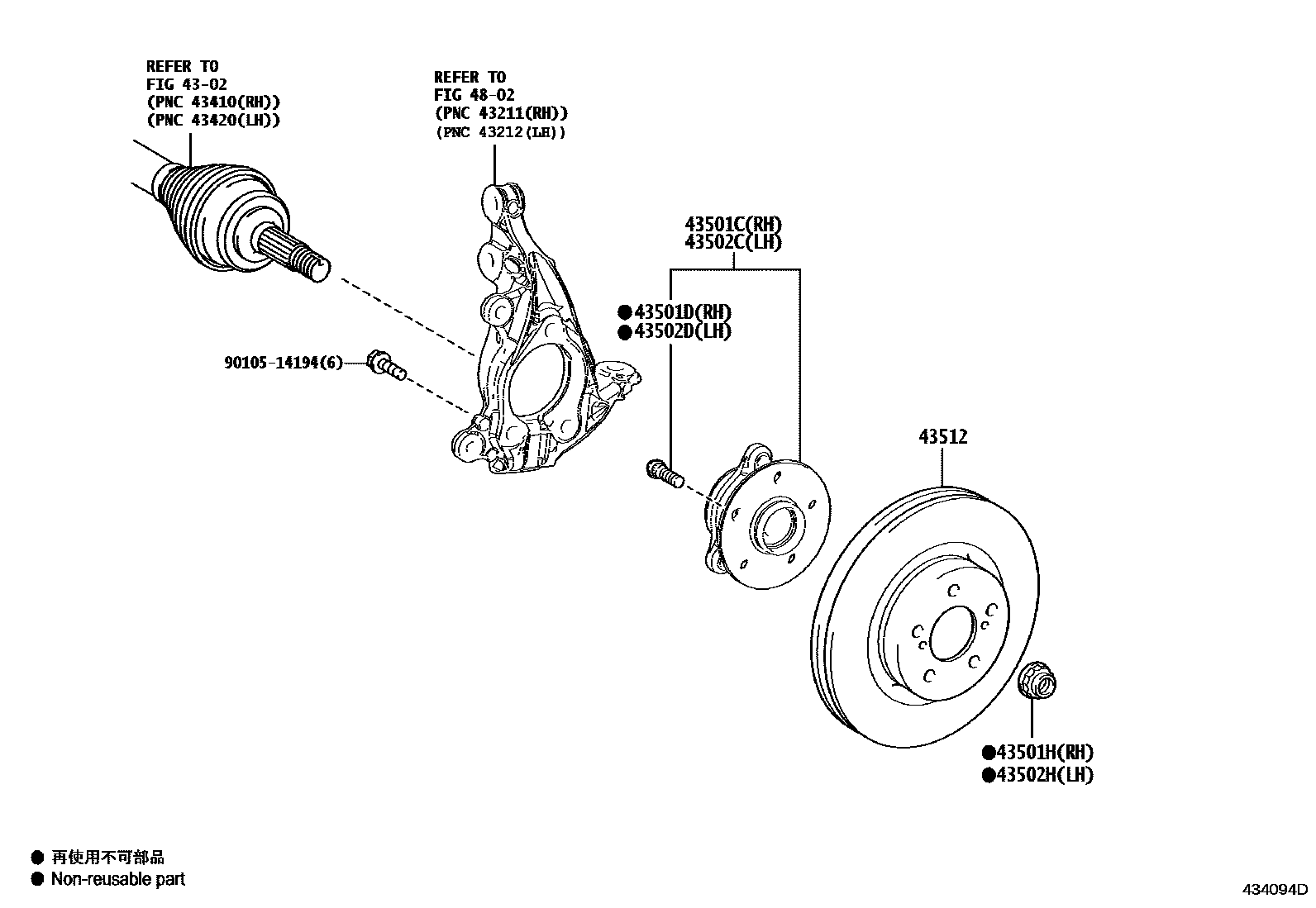

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47020iMZEA18;MZEA12,ZWE219..L202409

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMZEA12..D202409-202507

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMZEA12..D202409-202507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47020iMZEA18..RHD202209-202307

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMZEA18;MZEA12,ZWE219..L202409

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMZEA18..RHD202209-202307

43512DISC, FRONT

main43512-12720×2iMZEA18..LHD;MZEA12,ZWE219202209-202409

main43512-47060×2iZWE211201901-202004

4802

9010514194

main90105-14194

10 parts on this diagram · 1 diagram in section
