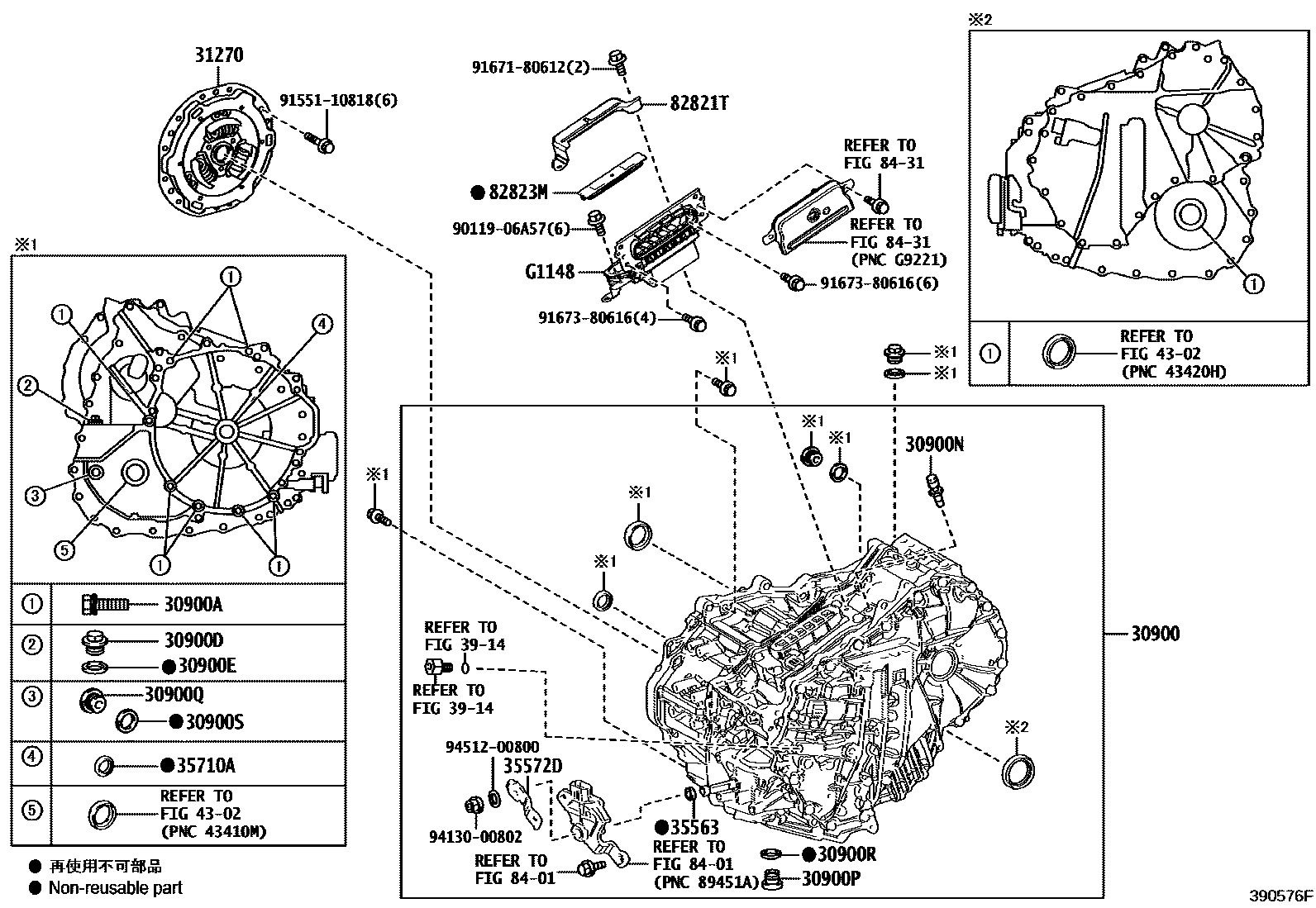

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-12020iZWE211201901-202208

main30900-12040iZWE219202209-202409

AISIN:REF.ILLUST

main30900-12080iZWE219202310-202409

TOYOTA:REF.ILLUST

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZWE211201901-202409

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZWE219201901-202409

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZWE211201901-202409

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZWE211201901-202409

30900PPLUG, DRAIN(HEV)

main90341-18016iZWE21#201901-202409

30900QPLUG, FILLER(HEV)

main90341-18016iZWE211201901-202208

main90341-18090iZWE219202209-202409

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZWE219201901-202409

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZWE211201901-202409

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZWE219202209-202409

main31270-47070iZWE21#201901-202208

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZWE211201901-202208

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZWE211201901-202208

main35572-28140iZWE219202209-202409

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZWE211201901-202208

main90311-25035iZWE219202209-202409

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZWE211201901-202208

82823MCAP, TERMINAL

main82823-28110iZWE219202209-202409

main82823-47040iZWE211201901-202208

8401

8431

G1148CABLE, MOTOR

mainG114828040iZWE219202209-202410

mainG114828041iZWE219202410

mainG114847070iZWE211201901-202208

9011906A57

main90119-06A57

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

26 parts on this diagram · 3 diagrams in section
