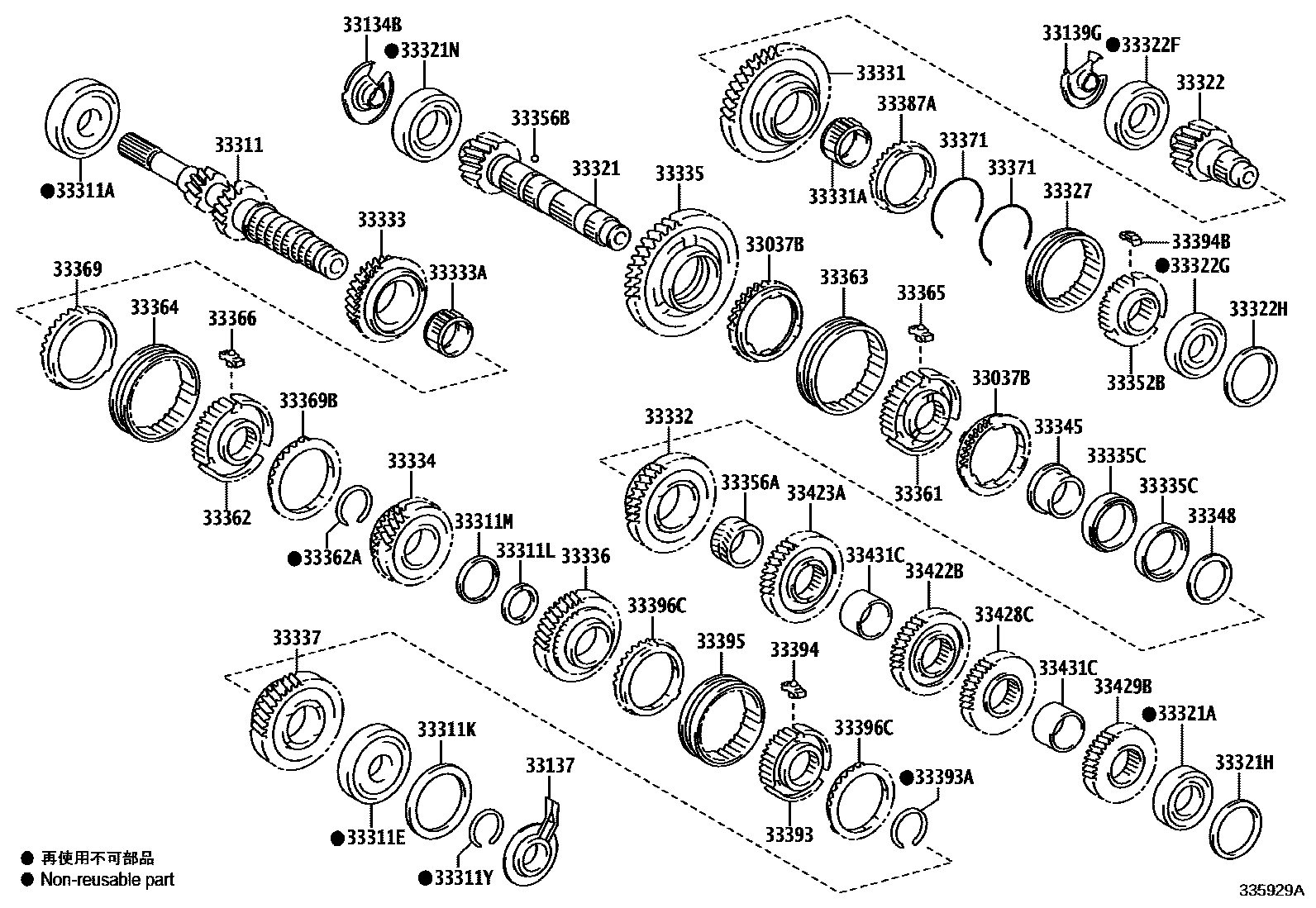

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33134BCOVER, OUTPUT SHAFT(MTM)
33137COVER, INPUT SHAFT(MTM)
33139GCOVER, REVERSE GEAR SHAFT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.30,MARK 08
T=1.35,MARK 09
T=1.40,MARK 10
T=1.45,MARK 11
T=1.50,MARK 12
T=1.55,MARK 13
T=1.60,MARK 14
T=1.65,MARK 15
T=1.70,MARK 16
T=1.75,MARK 17
T=1.80,MARK 18
T=1.85,MARK 19
T=1.20,MARK B
T=1.25,MARK C
T=1.30,MARK D
T=1.35,MARK E
T=1.40,MARK F
T=1.45,MARK G
T=1.50,MARK H
T=1.55,MARK J
T=1.60,MARK K
T=1.65,MARK L
T=1.70,MARK M
T=1.75,MARK N
T=1.80,MARK P
T=1.85,MARK Q
33311LSPACER(FOR INPUT SHAFT INNER)
33311MSPACER(FOR INPUT SHAFT OUTER)
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.65,MARK A
T=1.70,MARK B
T=1.75,MARK C
T=1.80,MARK D
T=1.85,MARK E
T=1.90,MARK F
T=1.95,MARK G
T=2.00,MARK H
T=2.05,MARK J
T=2.10,MARK K
T=2.15,MARK L
T=2.20,MARK M
T=2.25,MARK N
T=2.30,MARK P
T=1.95,MARK 0
T=2.01,MARK 1
T=2.07,MARK 2
T=2.13,MARK 3
T=2.19,MARK 4
T=2.25,MARK 5
T=1.83,MARK 6
T=1.89,MARK 7
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.750,MARK 50
T=1.755,MARK 51
T=1.800,MARK 52
T=1.825,MARK 53
T=1.850,MARK 54
T=1.875,MARK 55
T=1.900,MARK 56
T=1.925,MARK 57
T=1.950,MARK 58
T=1.975,MARK 59
T=2.000,MARK 60
T=2.025,MARK 61
T=2.050,MARK 62
T=2.075,MARK 63
T=2.100,MARK 64
T=2.125,MARK 65
T=2.150,MARK 66
T=2.175,MARK 67
T=2.200,MARK 68
T=2.225,MARK 69
T=2.250,MARK 70
T=2.275,MARK 71
T=2.300,MARK 72
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76
T=2.425,MARK 77
T=2.450,MARK 78
T=2.475,MARK 79
T=2.500,MARK 80
T=2.525,MARK 81
T=2.550,MARK 82
T=2.575,MARK 83
T=2.600,MARK 84
T=2.625,MARK 85
T=2.650,MARK 86
T=2.675,MARK 87
T=2.700,MARK 88
T=2.725,MARK 89
T=2.750,MARK 90
T=2.775,MARK 91
T=2.800,MARK 92
T=1.600,MARK A
T=1.625,MARK B
T=1.650,MARK C
T=1.675,MARK D
T=1.700,MARK E
T=1.725,MARK F
T=1.750,MARK G
T=1.775,MARK H
T=1.800,MARK J
T=1.825,MARK K
T=1.850,MARK L
T=1.875,MARK M
T=1.900,MARK N
T=1.925,MARK P
T=1.950,MARK Q
T=1.975,MARK R
T=2.000,MARK S
T=2.025,MARK T
T=2.050,MARK U
T=2.075,MARK V
T=2.100,MARK W
T=2.125,MARK X
T=2.150,MARK Y
T=2.175,MARK Z
T=2.200,MARK 1
T=2.225,MARK 2
T=2.250,MARK 3
T=2.275,MARK 4
T=2.300,MARK 5
T=2.325,MARK 6
T=2.350,MARK 7
T=2.375,MARK 8
T=2.400,MARK 9
T=2.425,MARK 10
T=2.450,MARK 11
T=2.475,MARK 12
T=2.500,MARK 13
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33322SHAFT, OUTPUT, NO.2
33322FBEARING(FOR REVERSE GEAR SHAFT FRONT)
33322GBEARING(FOR REVERSE GEAR SHAFT REAR)
33322HSHIM(FOR REVERSE GEAR SHAFT REAR BEARING)
T=1.90,MARK N
T=1.95,MARK P
T=2.00,MARK Q
T=2.05,MARK R
T=2.10,MARK S
T=2.15,MARK T
T=2.20,MARK U
T=2.25,MARK V
T=2.30,MARK W
T=2.35,MARK X
T=2.40,MARK Y
T=2.45,MARK Z
T=2.50,MARK 1
33327SLEEVE, TRANSMISSION HUB, NO.4
33331ABEARING (FOR REVERSE GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337GEAR SUB-ASSY, 6TH
33348WASHER, 1ST GEAR THRUST
33352BHUB, TRANSMISSION CLUTCH, NO.4
33356ARACE, 2ND GEAR BEARING INNER
33356BBALL, 2ND GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.27,MARK 0
T=2.32,MARK 1
T=2.37,MARK 2
T=2.42,MARK 3
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6
T=2.62,MARK 7
T=2.30,MARK A
T=2.36,MARK B
T=2.42,MARK C
T=2.48,MARK D
T=2.54,MARK E
T=2.60,MARK F
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33387ARING, REVERSE SYNCHRONIZER
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.30,MARK 0
T=2.36,MARK 1
T=2.42,MARK 2
T=2.48,MARK 3
T=2.54,MARK 4
T=2.60,MARK 5
33394KEY, SYNCHROMESH SHIFTING, NO.3
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33396CRING, SYNCHRONIZER, NO.5(MTM)
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33429BGEAR, 6TH DRIVEN
33431CSPACER, OUTPUT GEAR
57 parts on this diagram · 2 diagrams in section
