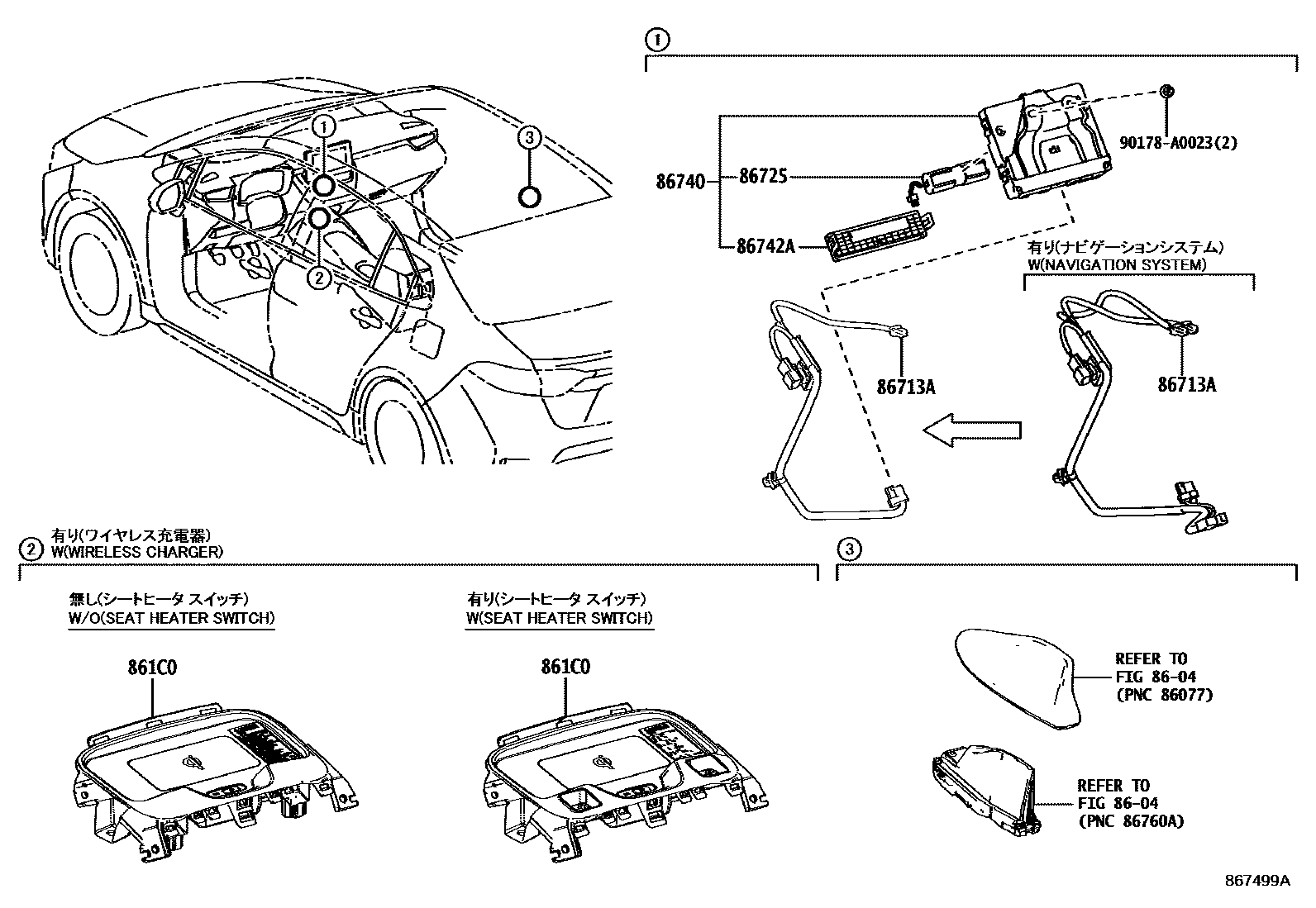

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-12020iMZEA12..Y..USA202309-202410

main861C0-12010iMZEA12,ZRE212..(L,S)..USA202007-202210

WIRELESS CHARGER-WITH

main861C0-12011iMZEA1#..(L,S)..USA202211-202410

WIRELESS CHARGER-WITH

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-02010iMZEA12,ZRE212..(X,Y)..USA201903-202007

PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

main86713-02070iMZEA12,ZRE212..(D,L,S)..CND202007-202211

PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER

main86713-02110iMZEA1#..L,S,Y;MZEA18..D..CND202410

main86713-02020iMZEA12,ZRE212..X,Y201903-202007

AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

main86713-02080iMZEA12,ZRE212..X,Y202007-202211

AUDIO-8INCH 6SPEAKER

86725BATTERY, MOBILEPHONE

main86725-06020iMZEA12,ZRE212..(D,L,S)..CND202007-202211

AUDIO-8INCH 6SPEAKER

main86725-11020iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main86725-78010iMZEA12,ZRE212..USA201903-202007

AUDIO-8INCH 6SPEAKER

86740TRANSCEIVER ASSY, TELEPHONE

main86740-02050iMZEA12,ZRE212..(X,Y)..USA201903-202007

PUERTO RICO SPEC&AUDIO-8INCH 6SPEAKER & JBL 9SPEAKER

86742ACOVER, TRANSCEIVER

main86742-06020iMZEA12..Y;ZRE212..X..CND;MZEA12,ZRE212..(D,L,S,X)..USA202007-202211

AUDIO-8INCH 6SPEAKER

main86742-12010iMZEA12,ZRE212..USA201903-202007

AUDIO-8INCH 6SPEAKER

main86742-78010iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

90178A0023

main90178-A0023

7 parts on this diagram · 3 diagrams in section
