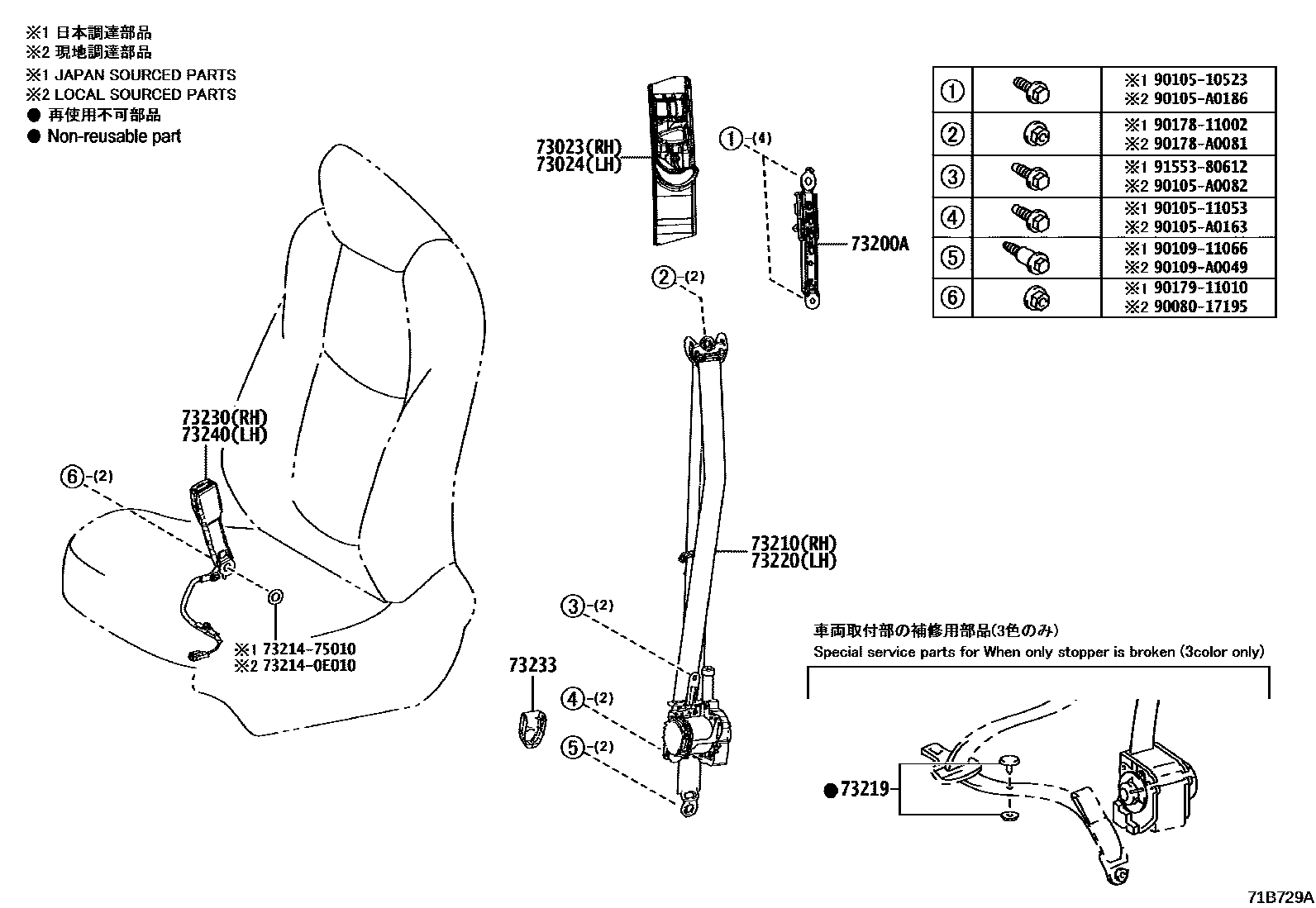

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1FRONT SEAT BELT 0003 1REAR SEAT BELT 0004 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02080-C0iMZEA12..Y201903-202007

BLACK,TRIM0#,1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02080-C0iMZEA12202211-202410

BLACK,TRIM0#,1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020×2iMZEA12,ZRE212201903-202007

main73200-0R010×2iMZEA12,ZRE212202007-202211

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06420-C4iMZEA12202410

BLACK,TRIM0#,1#,2#

73219STOPPER, TONGUE PLATE

main73219-02010iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

BLACK

main73219-02020iMZEA12,ZRE212202007-202211

GRAY

main73219-02030iMZEA18..D..USA202211

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06390-C3iMZEA18..L202211-202410

BLACK,TRIM0#,1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02B60-C0iMZEA12..Y201903-202007

BLACK,TRIM0#,1#,2#

main73230-02G30-C0iMZEA12202410

BLACK,TRIM0#,1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1×2iMZEA12202007-202211

BLACK,TRIM0#,1#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02B50-C0iZRE212..L201903-202007

BLACK,TRIM0#,1#,2#

main73230-02C00-C0supersedes 73230-02B50-C0iMZEA12..Y201903-202007

BLACK,TRIM0#,2#

main73230-02G20-C0iMZEA12..S202410

BLACK,TRIM0#,1#,2#

main73230-02G40-C0iMZEA12..Y202211-202410

BLACK,TRIM2#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008017195

main90080-17195

9010510523

main90105-10523

9010511053

main90105-11053

90105A0082

main90105-A0082

90105A0163

main90105-A0163

90105A0186

main90105-A0186

9010911066

main90109-11066

90109A0049

main90109-A0049

9017811002

main90178-11002

90178A0081

main90178-A0081

9017911010

main90179-11010

9155380612

main91553-80612

23 parts on this diagram · 4 diagrams in section
