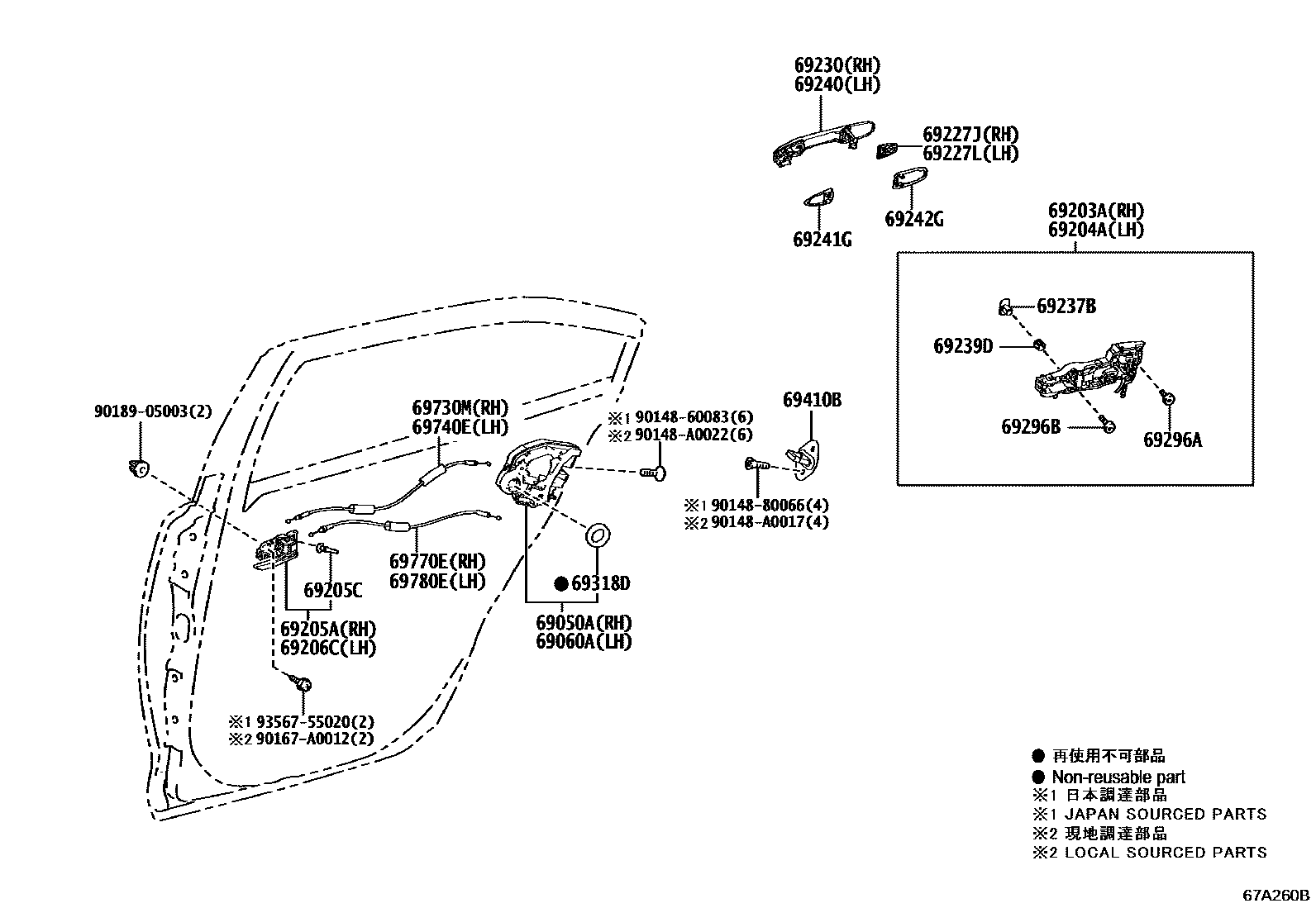

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02590iMZEA1#..L,S,Y;MZEA18..D..CND202410

main69050-02640iZRE212..(D,L)..USA201903-202007

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02590iMZEA1#..L,S,Y;MZEA18..D..CND202410

main69060-02640iZRE212..D..USA202007-202211

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02380iMZEA1#..L,S,Y;MZEA18..D..CND202410

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02380iMZEA1#..L,S,Y;MZEA18..D..CND202410

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02300-A0iMZEA18..L202405-202410

FROMAGE,TRIM0#

main69205-02300-A1iZRE212..L202107-202211

FROMAGE,TRIM0#

main69205-02300-B1iMZEA18202211-202405

LT.GRAY,TRIM1#

main69205-02300-B2iMZEA18..D..USA202405

LT.GRAY,TRIM1#

main69205-02300-C0iMZEA18..L;MZEA18..D..CND202410

BLACK,TRIM2#

main69205-02300-C1iMZEA18202211-202405

BLACK,TRIM2#

main69205-02380-A0iZRE212..X202007-202211

FROMAGE,TRIM0#

main69205-02380-B0iMZEA12..Y202410

COOL GRAY,TRIM24

main69205-02380-B2iZRE212..D,L202007-202107

LT.GRAY,TRIM1#

main69205-02380-C0iMZEA12,ZRE212..X,Y202007-202211

BLACK,TRIM20,21

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005×2iMZEA12,ZRE212202007-202211

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02350-A0iMZEA18..L202405-202410

FROMAGE,TRIM0#

main69206-02350-A1iMZEA18..L202211-202405

FROMAGE,TRIM0#

main69206-02350-B1iMZEA18202211-202405

LT.GRAY,TRIM1#

main69206-02350-B2iMZEA18..D..USA202405

LT.GRAY,TRIM1#

main69206-02350-C0iMZEA18..L;MZEA18..D..CND202405-202410

BLACK,TRIM2#

main69206-02350-C1iMZEA18202211-202405

BLACK,TRIM2#

main69206-02380-A0iZRE212..X202007-202211

FROMAGE,TRIM0#

main69206-02380-B0iMZEA12..Y202410

COOL GRAY,TRIM24

main69206-02380-B2iZRE212..D,L201903-202007

LT.GRAY,TRIM1#

main69206-02380-C0iMZEA12,ZRE212..D,L,X,Y201903-202007

BLACK,TRIM20,21

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-06100iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-06100iMZEA1#..L,S,Y;MZEA18..D..CND202410

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-06916iMZEA1#..L,S,Y;MZEA18..D..CND202410

PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-06030×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69239DBUSH, REAR DOOR HANDLE

main69239-06030×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-06916iMZEA1#..L,S,Y;MZEA18..D..CND202410

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06080×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06080×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69296ASCREW, DOOR INSIDE HANDLE

main69296-02020×2iMZEA12,ZRE212201903-202007

69296BSCREW, DOOR INSIDE HANDLE

main69296-06070×2iMZEA12,ZRE212201903-202007

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02030×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02320iMZEA1#..L,S,Y;MZEA18..D..CND202410

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02320iMZEA1#..L,S,Y;MZEA18..D..CND202410

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02420iMZEA1#..L,S,Y;MZEA18..D..CND202410

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02420iMZEA1#..L,S,Y;MZEA18..D..CND202410

9014860083

main90148-60083

9014880066

main90148-80066

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

9356755020

main93567-55020

30 parts on this diagram · 1 diagram in section
