DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
09143ANUT, WHEEL LOCK W/SOCKET WRENCH
LE PACKAGE2&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT
TIRE&DISK WHEEL-225/40R18 ALUMI SPORT(ILA)&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT
42601WHEEL, DISC
16X7J,#,TYPE B:REFER ILLUST.
16X7J,#,LE PACKAGE&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI), LOCK NUT,TYPE B:REFER ILLUST.
18X8J,#,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE C:REFER ILLUST.
18X8J,#,TYPE C:REFER ILLUST.
18X8J,#,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE C:REFER ILLUST.
18X8J,#,NIGHT SHADE,TYPE C:REFER ILLUST.
18X8J,#,NIGHT SHADE&TIRE&DISK WHEEL-225/40R18 ALUMI,TYPE C:REFER ILLUST.
18X8J,#,TIRE&DISK WHEEL-225/40R18 ALUMI SPORT(ILA),TYPE G:REFER ILLUST.
18X8J,TIRE&DISK WHEEL-225/40R18 ALUMI NIGHT SHADE(ILA),TYPE G:REFER ILLUST.
18X8J,#,APEX,TYPE H:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
(J),TYPE A:REF ILL.
TYPE A:REFER ILLUST.
TIRE&DISK WHEEL-225/40R18 SUMMER SPORT(ILA)&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),LOCK NUT,TYPE C:REFER ILLUST.
TIRE&DISK WHEEL-225/40R18 ALUMI SPORT(ILA),TYPE C:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE A:REFER ILLUST.
LE PACKAGE2&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
SPARE TIRE-T125/70D17,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE

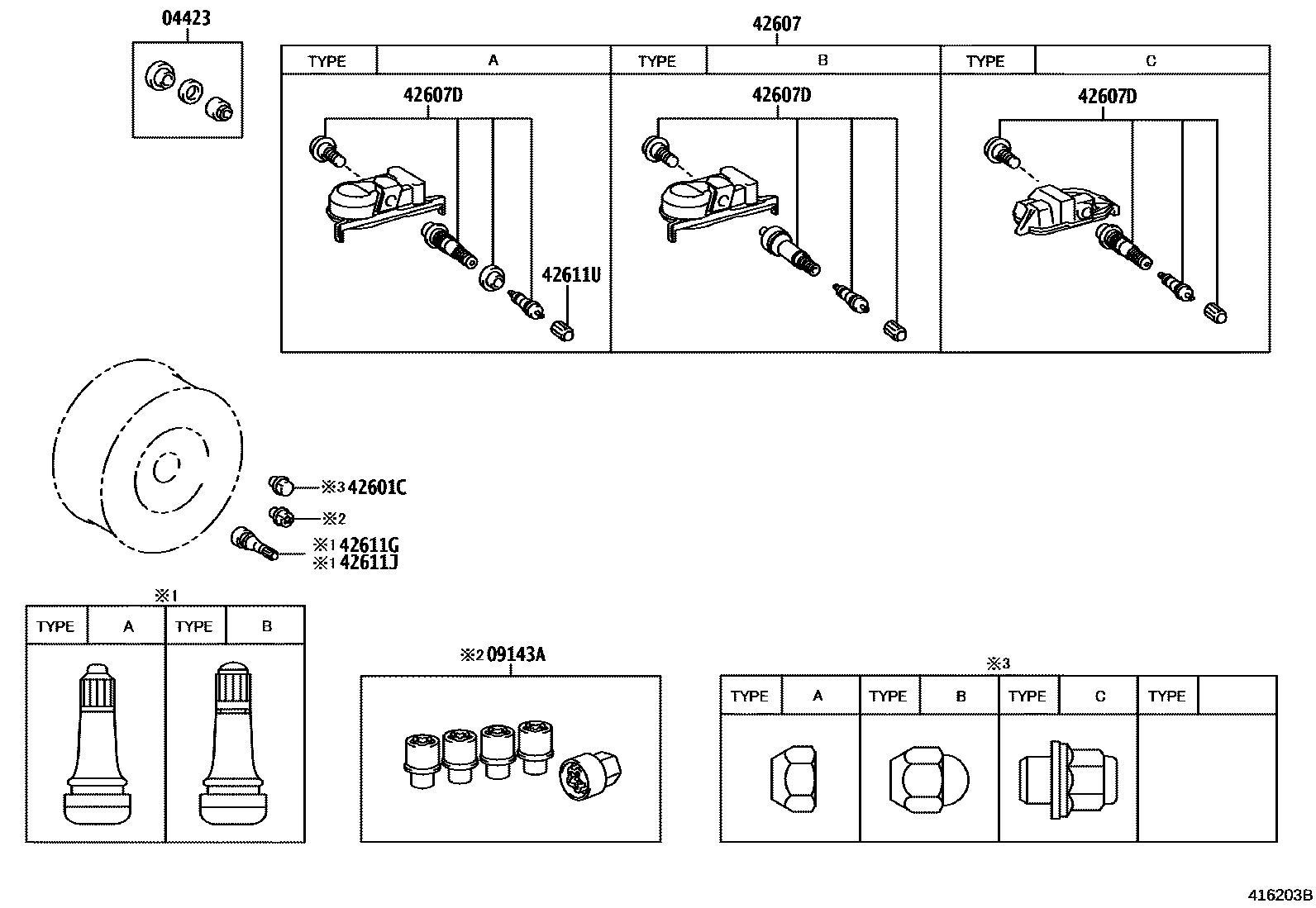

9 parts on this diagram · 2 diagrams in section
