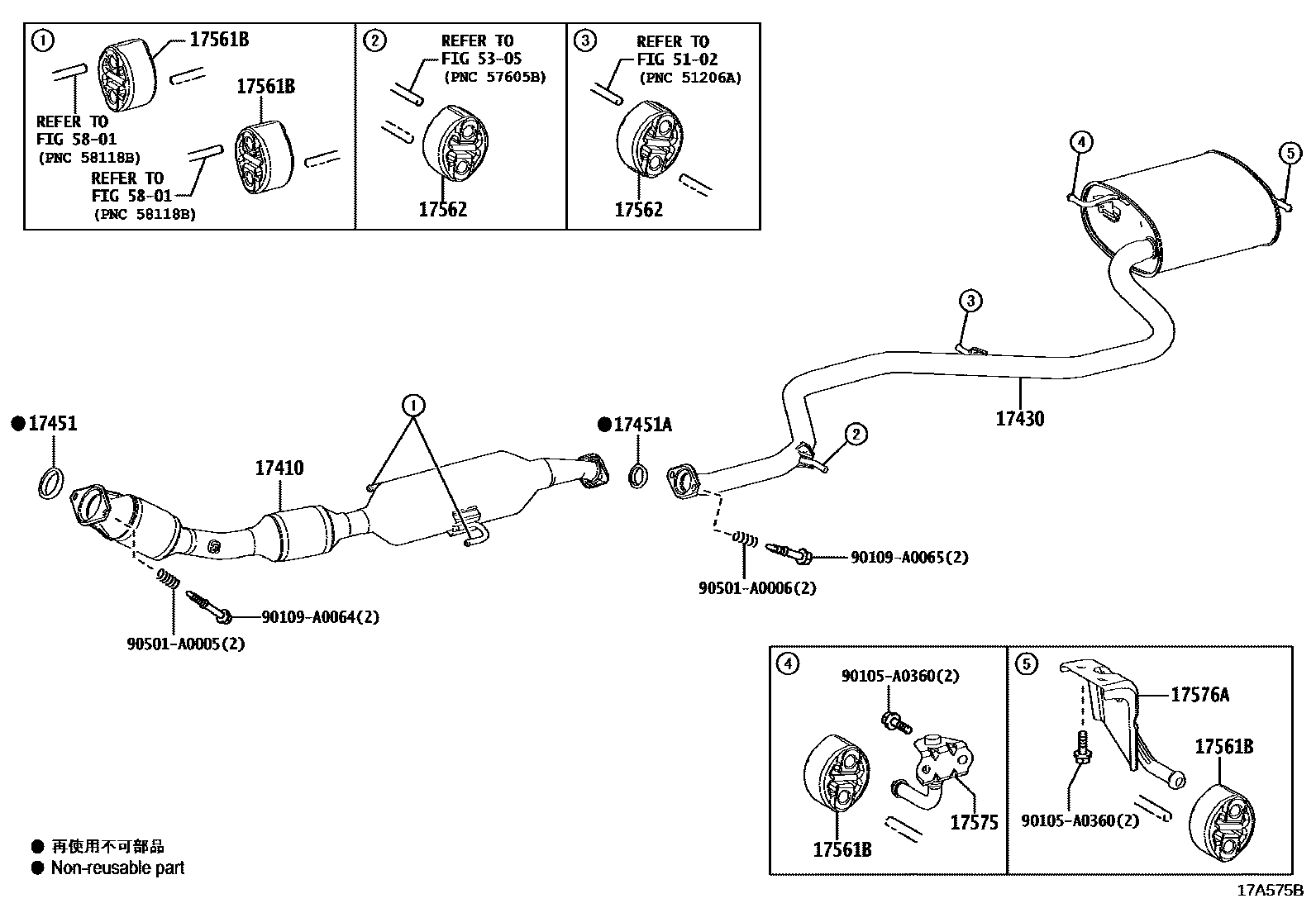

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TC50i2ZRFAE..ZRE212201903-202211

main17410-F2010iM20AFKS..MZEA12201903-202007

sub17410-F2480

main17410-F2170iM20AFKS..MZEA12202211-202309

main17410-F2170iM20AFKS..MZEA12202007-202211

APEX

main17410-F2440iM20AFKS..MZEA18202211-202309

main17410-F2680iM20AFKS..MZEA12202309-202410

APEX

main17410-F2680iM20AFKS..MZEA12202410-202508

main17410-F2690iM20AFKS..MZEA18..L;M20AFKS..MZEA18..D..CND202309-202508

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T330i2ZRFAE..ZRE212201903-202211

main17430-F2010iM20AFKS..MZEA12201903-202007

main17430-F2010iM20AFKS..MZEA12202007-202410

APEX

main17430-F2270iM20AFKS..MZEA18..L;M20AFKS..MZEA18..D..CND202211

17451GASKET, EXHAUST PIPE

main17451-0D140iM20AFKS..MZEA1#201903-202007

main17451-0D140iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

17451AGASKET, EXHAUST PIPE, NO.2

main17451-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202007

main17451-F2010iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0P041iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202007

main17565-0P041iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-0S011iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202007

main17565-0S011iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202007

main17575-F2010iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202007

main17576-F2010iM20AFKS,2ZRFAE..MZEA12,ZRE212202007-202211

APEX

5102

5305

5801

90105A0360

main90105-A0360

90109A0064

main90109-A0064

90109A0065

main90109-A0065

90501A0005

main90501-A0005

90501A0006

main90501-A0006

16 parts on this diagram · 2 diagrams in section
