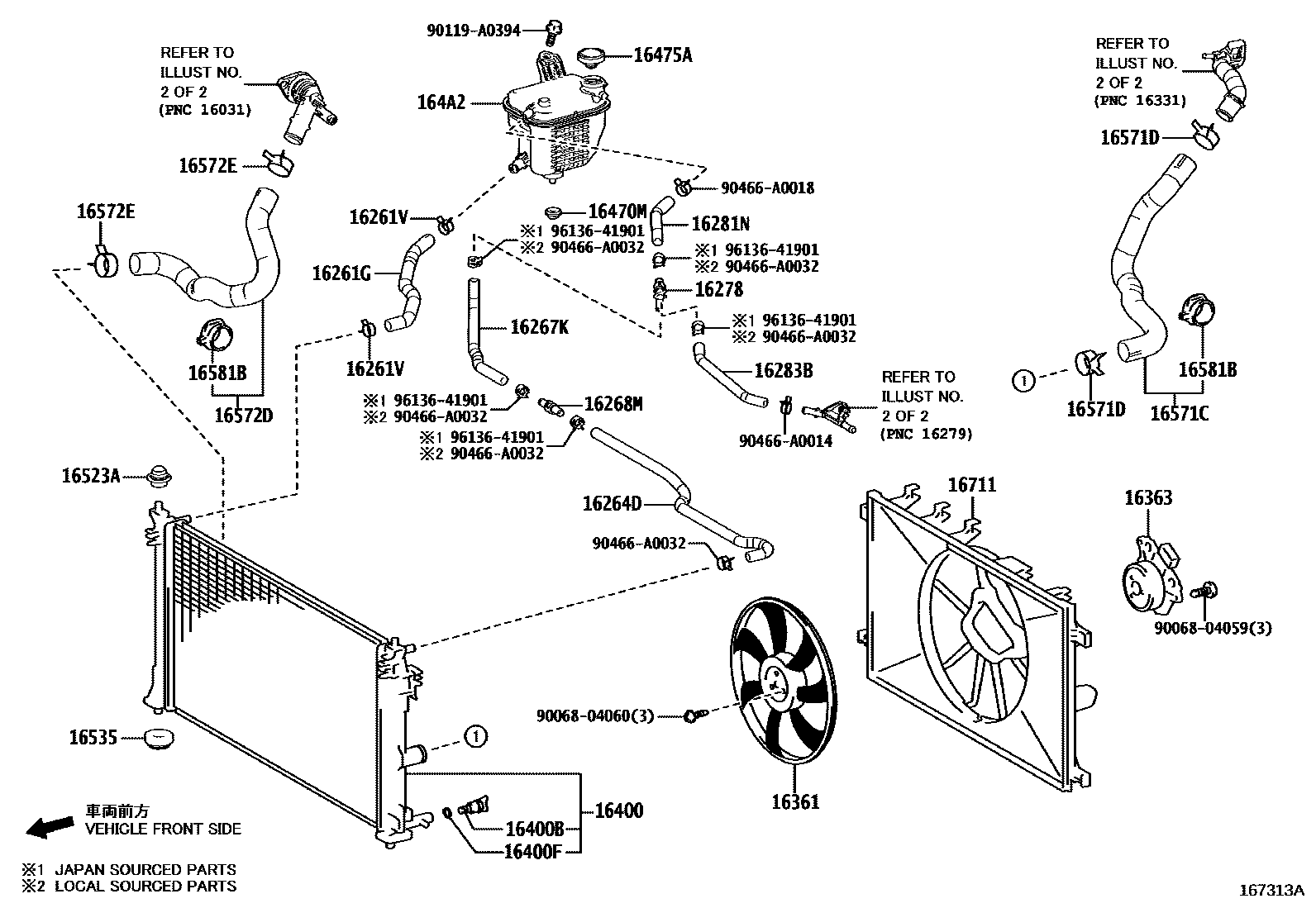

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0003 1RADIATOR SIDE 0004 1ENGINE SIDE 0006 1ENGINE SIDE 0007 1 0008 1 0009 1

16261HOSE, WATER BY-PASS

main16261-37031i2ZRFAE..ZRE212201903-202007

16261GHOSE, WATER BY-PASS, NO.1

main16261-0T190i2ZRFAE..ZRE212201903-202007

main16261-F2010iM20AFKS..MZEA12201903-202211

main16261-F2220iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-A0029iM20AFKS..MZEA12201903-202211

16264HOSE, WATER BY-PASS, NO.2

main16264-37031i2ZRFAE..ZRE212201903-202007

main16264-F2170iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16264DHOSE, WATER BY-PASS, NO.2

main16264-0T150i2ZRFAE..ZRE212201903-202007

main16264-F2010iM20AFKS..MZEA12201903-202211

16267HOSE, WATER BY-PASS, NO.3

main16267-0T210i2ZRFAE..ZRE212201903-202007

(L)

main16267-24040iM20AFKS..MZEA12201903-202410

main16267-37010i2ZRFAE..ZRE212201903-202007

(J)

16267KHOSE, WATER BY-PASS, NO.3

main16267-F2010iM20AFKS..MZEA12201903-202211

16268PIPE, WATER BY-PASS, NO.1

main16268-0T350i2ZRFAE..ZRE212..CVT201903-202007

(L)

main16268-0T360i2ZRFAE..ZRE212..6F201903-202007

(L)

main16268-37060i2ZRFAE..ZRE212..CVT201903-202007

(J)

main16268-37070i2ZRFAE..ZRE212..6F201903-202007

(J)

16268MPIPE, WATER BY-PASS, NO.3

main16268-F2020iM20AFKS..MZEA12201903-202211

16278PIPE, WATER BY-PASS, NO.2

main16268-F2010iM20AFKS..MZEA12201903-202211

main16268-F2020i2ZRFAE..ZRE212201903-202007

16281HOSE, WATER BY-PASS, NO.4

main16281-24030iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16281NHOSE, WATER BY-PASS, NO.4

main16281-F2010iM20AFKS..MZEA12201903-202211

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16283BHOSE, WATER BY-PASS

main16296-F2010iM20AFKS..MZEA12201903-202211

16361FAN

main16361-0T230i2ZRFAE..ZRE212201903-202007

main16361-F2010iM20AFKS..MZEA12201903-202211

main16361-F2180iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16363MOTOR, COOLING FAN

main16363-24120iM20AFKS..MZEA18..D..USA202211-202410

main16363-37130i2ZRFAE..ZRE212201903-202007

main16363-47060iM20AFKS..MZEA12201903-202211

16400RADIATOR ASSY

main16400-0T390i2ZRFAE..ZRE212201903-202007

main16400-F2010iM20AFKS..MZEA12201903-202211

main16400-F2081iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM20AFKS..MZEA12201903-202410

16470TANK ASSY, RADIATOR RESERVE

main16470-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16470MGROMMET

main90480-18010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16475ACAP, RESERVE TANK

main16475-28140iM20AFKS..MZEA12201903-202211

164A2TANK, RESERVE SEALED W/O CAP

main164A2-0T030iM20AFKS..MZEA12201903-202211

16523ACUSHION, RADIATOR SUPPORT

main16523-0T090iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16535SUPPORT, RADIATOR, LOWER

main90480-40021iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16571CHOSE, RADIATOR, NO.1

main16571-0T310i2ZRFAE..ZRE212201903-202007

main16571-F2060iM20AFKS..MZEA12201903-202211

main16571-F2110iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001i2ZRFAE..ZRE212201903-202007

main90466-A0037iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16572DHOSE, RADIATOR, NO.2

main16572-0T250i2ZRFAE..ZRE212201903-202007

main16572-F2010iM20AFKS..MZEA18..D..USA201903-202410

16572ECLIP, RADIATOR HOSE, NO.2

main90466-A0037iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-0T150i2ZRFAE..ZRE212..CVT201903-202007

NO.2

main16581-0T160i2ZRFAE..ZRE212..CVT201903-202007

NO.1

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-28070iM20AFKS..MZEA12201903-202211

main16581-36030i2ZRFAE..ZRE212201903-202007

main90469-38003iM20AFKS..MZEA18..D..USA202211-202410

16711SHROUD, FAN

main16711-0T200i2ZRFAE..ZRE212201903-202007

main16711-F2010iM20AFKS..MZEA12201903-202211

main16711-F2140iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

9006804059

main90068-04059

9006804060

main90068-04060

90119A0394

main90119-A0394

90466A0014

main90466-A0014

90466A0018

main90466-A0018

90466A0032

main90466-A0032

9613641901

main96136-41901

39 parts on this diagram · 7 diagrams in section
