WATER PUMP

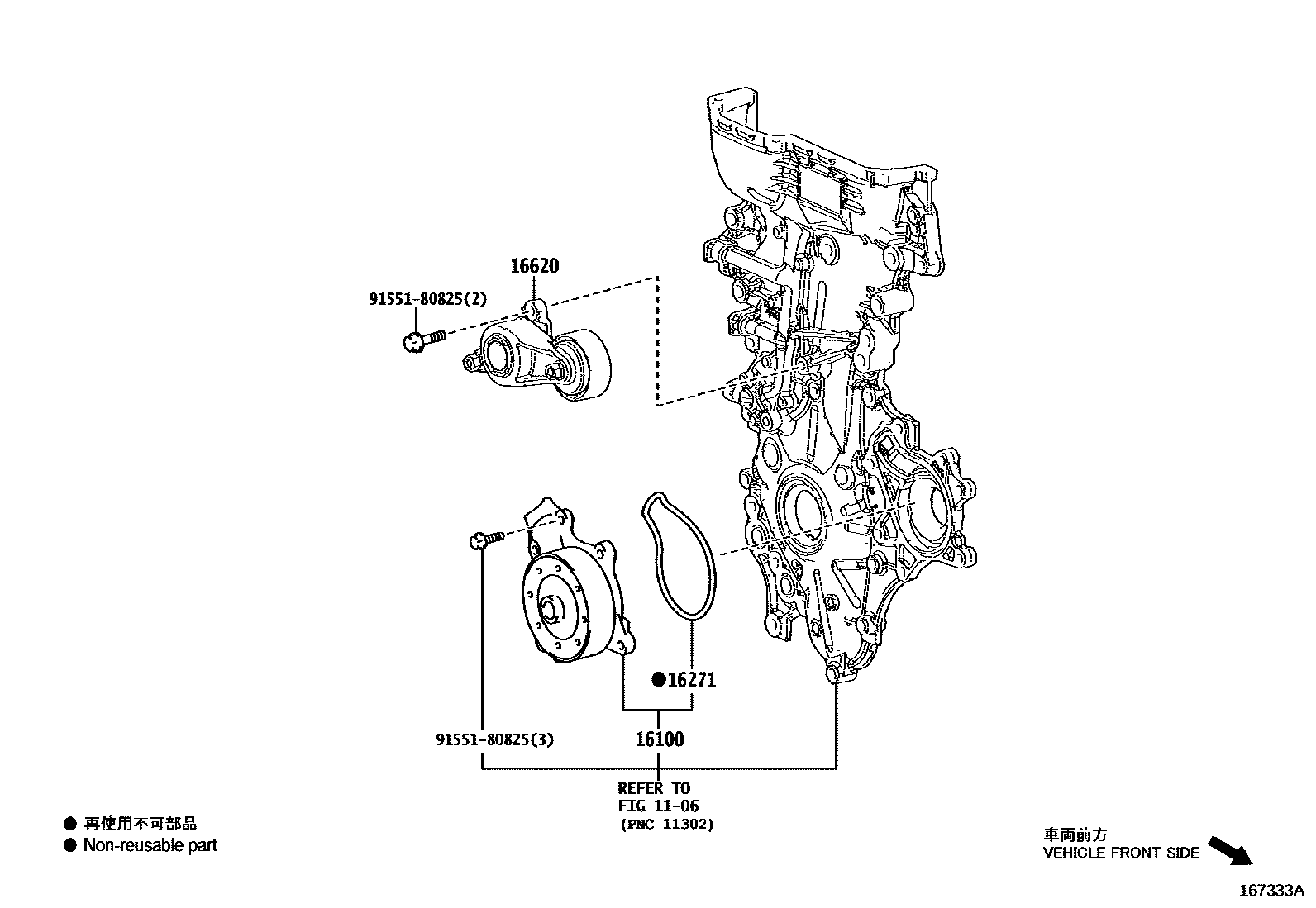

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-09620i201903-202007

(L)

main16100-39565i¥10,500201903-202007

(J)

16271GASKET, WATER PUMP

main16271-37030i¥520201903-202007

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T040i¥11,200201903-202007

9155180825

main91551-80825¥80

5 parts on this diagram · 1 diagram in section
