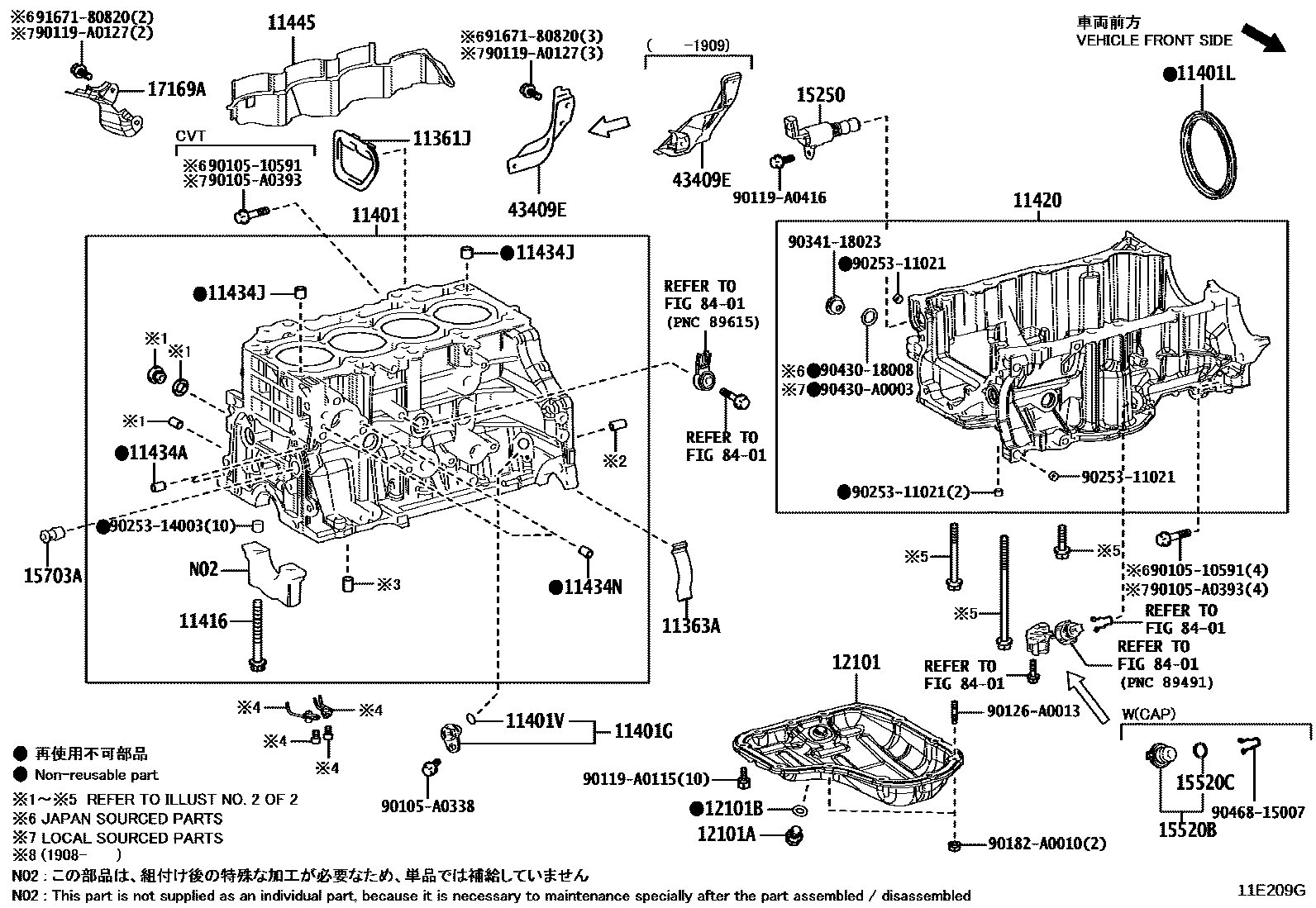

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZRFAE..ZRE212¥490201903-202007

main11361-25010iM20AFKS..MZEA12¥700201903-202410

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i2ZRFAE..ZRE212¥350201903-202007

main11363-33010iM20AFKS..MZEA18..D..USA¥200201903-202410

11401BLOCK SUB-ASSY, CYLINDER

main11410-09322i2ZRFAE..ZRE212201903-202107

(L)

sub11410-39245¥142,000

main11410-29485iM20AFKS..MZEA12¥153,000201903-202105

(J)

sub11410-29486¥153,000

main11410-29486iM20AFKS..MZEA12¥153,000202105-202110

(J)

sub11410-29665¥139,000

main11410-29665iM20AFKS..MZEA1#¥139,000202110-202311

(J)

main11410-39245i2ZRFAE..ZRE212¥142,000201903-202107

(J)

sub11410-39246¥129,000

main11410-39245i2ZRFAE..ZRE212¥142,000202107-202303

sub11410-39246¥129,000

main11410-F9050iM20AFKS..MZEA12201903-202105

(L)

sub11410-F9051

main11410-F9051iM20AFKS..MZEA12202105-202311

(L)

main11410-F9350iM20AFKS..MZEA1#202311

11401GSENSOR, CRANK POSITION

main90919-05070i2ZRFAE..ZRE212¥3,870201903-202007

(J)

main90919-A5004i2ZRFAE..ZRE212201903-202007

(L)

main90919-A5005iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202211-202410

main90919-A5006iM20AFKS..MZEA12201903-202211

11401LSEAL, ENGINE REAR OIL

main90311-90010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥1,390201903-202410

(J)

main90311-A0017i2ZRFAE..ZRE212201903-202007

main90311-A0035iM20AFKS..MZEA12201903-202410

(L)

11401VO-RING, CRANK POSITION SENSOR

main90301-11039iM20AFKS..MZEA18..D..USA¥0201903-202410

main90301-14016i2ZRFAE..ZRE212¥0201903-202007

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163i2ZRFAE..ZRE212¥190201903-202007

(J)

main90910-02197iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥240201903-202410

(J)

main90910-A2010i2ZRFAE..ZRE212201903-202007

(L)

main90910-A2015iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

(L)

11420CRANKCASE ASSY, STIFFENING

main11420-0T011i2ZRFAE..ZRE212201903-202007

(L)

main11420-24010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥33,400201903-202410

(J)

main11420-37010i2ZRFAE..ZRE212¥28,000201903-202007

(J)

main11420-F2010iM20AFKS..MZEA12201903-202410

(L)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2ZRFAE..ZRE212¥50201903-202007

L=12,OD=4.0

main90250-06003iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥90201903-202410

L=14,OD=6,(J)

main90250-A0028iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

L=14,OD=6,(L)

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i2ZRFAE..ZRE212¥90201903-202007

main90253-13017iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥140201903-202410

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥90201903-202410

(J)

main90250-A0028iM20AFKS..MZEA12201903-202410

(L)

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-24010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥2,690201903-202410

(J)

main11445-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

(L)

12101PAN SUB-ASSY, OIL

main12102-24010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥6,200201903-202410

(J)

main12102-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND201903-202410

(L)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥160201903-202410

(J)

main90341-12012i2ZRFAE..ZRE212¥160202007-202202

main90341-A0007iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥190201903-202410

(L)

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031iM20AFKS..MZEA12¥90201903-202410

(J)

main90430-12031i2ZRFAE..ZRE212¥90202007

main90430-A0006iM20AFKS..MZEA12201903-202410

(L)

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥3,980202309-202410

(J)

main15250-25010iM20AFKS..MZEA12¥3,980201903-202309

main15250-F0020iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202309-202410

(L)

15520BCAP ASSY, CRANKCASE

main15520-25010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥660202304-202410

(J)

main15520-F2010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202304-202410

(L)

15520CRING, O (FOR CRANKCASE CAP)

main96743-24016iM20AFKS..MZEA18..D..USA¥130202304-202410

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥780201903-202410

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-24010iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND¥1,390202306-202410

(J)

main17169-24010iM20AFKS..MZEA12¥1,390201903-202306

main17169-F2090iM20AFKS..MZEA1#..L,S,Y;M20AFKS..MZEA18..D..CND202306-202410

(L)

43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-02161iMZEA12201903-201908

main43498-02260iMZEA1#..L,S,Y;MZEA18..D..CND201909-202410

8401

9010510591

main90105-10591¥120

90105A0338

main90105-A0338

90105A0393

main90105-A0393

90119A0115

main90119-A0115

90119A0127

main90119-A0127

90119A0416

main90119-A0416

90126A0013

main90126-A0013

90182A0010

main90182-A0010

9025311021

main90253-11021¥120

9025314003

main90253-14003¥140

9034118023

main90341-18023¥190

9043018008

main90430-18008¥110

90430A0003

main90430-A0003

9046815007

main90468-15007¥80

9167180820

main91671-80820¥80

37 parts on this diagram · 5 diagrams in section
