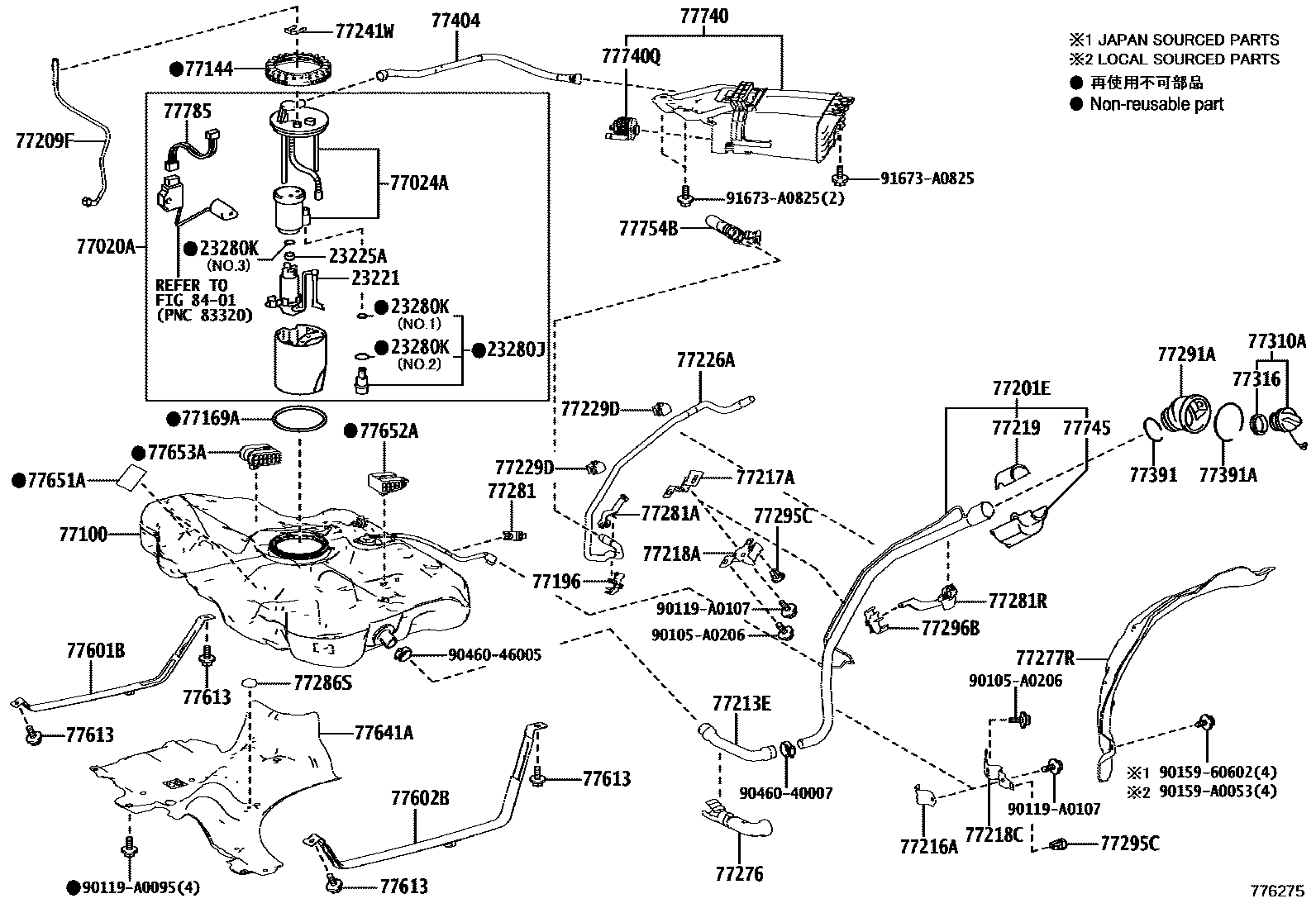

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
NO.3
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77218CSUPPORT, FUEL TANK FILLER PIPE, NO.5
77226ATUBE, FUEL TANK BREATHER, NO.6
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77295CGROMMET, FUEL TUBE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-P215/45R17 ALUMI OS39,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-P215/45R17 AL OS39 ALL-BK,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 ALUMI OS39,TYPE B:REFER ILLUST.
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77740CANISTER ASSY, CHARCOAL
77745FILTER, CHARCOAL CANISTER, NO.1
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401
90105A0206
main90105-A0206
90119A0095
main90119-A0095
90119A0107
main90119-A0107
9015960602
main90159-60602
90159A0053
main90159-A0053
9046040007
main90460-40007
9046046005
main90460-46005
91673A0825
main91673-A0825
56 parts on this diagram · 4 diagrams in section
