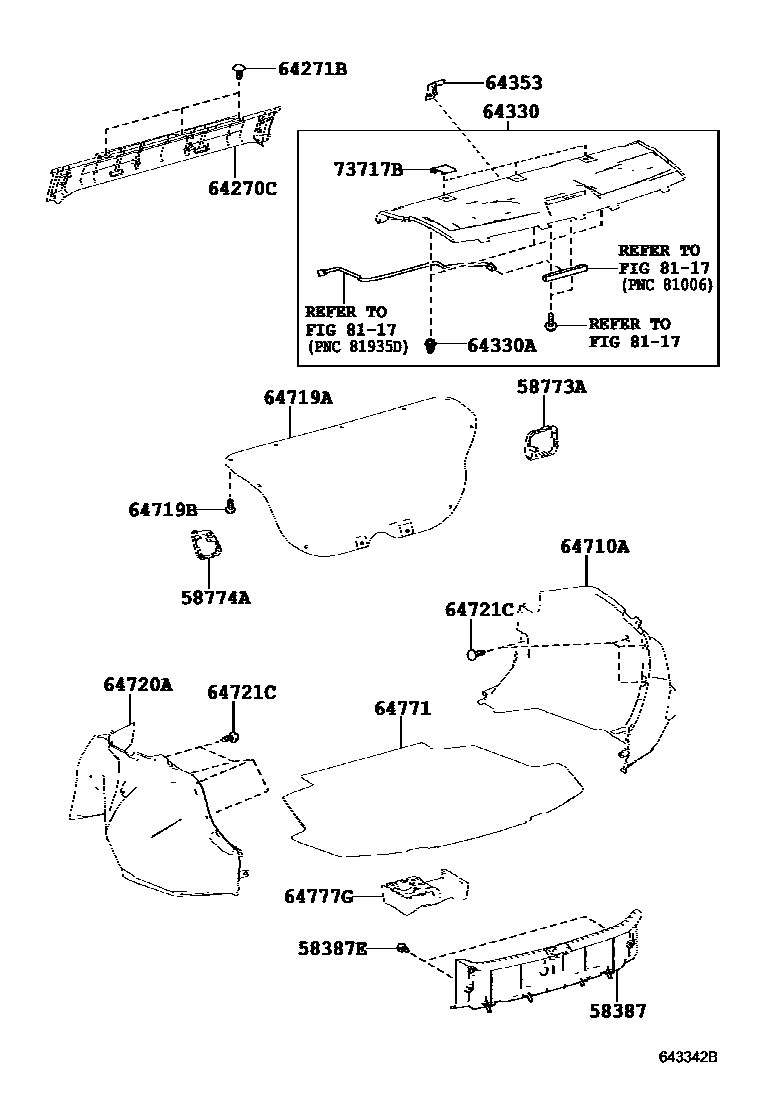

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
BLACK,TRIM1#
BLACK
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
BLACK,TRIM1#
BLACK
64270CBOARD ASSY, ROOM PARTITION
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#
64271BCLIP(FOR ROOM PARTITION BOARD)
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64353COVER, PACKAGE TRAY TRIM BELT HOLE
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#
BLACK,TRIM0#,1#,2#
64721CCLIP(LUGGAGE COMPARTMENT)
64771COVER, SPARE WHEEL
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#
64777GCUSHION, SPARE WHEEL
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM2#,4#,8#,CENTER
BLACK,TRIM1#,CENTER
BLACK,TRIM0#,1#,2#,RH
BLACK,TRIM2#,4#,8#,RH
BLACK,TRIM0#,1#,2#,LH
BLACK,TRIM1#,LH
8117
18 parts on this diagram · 1 diagram in section
