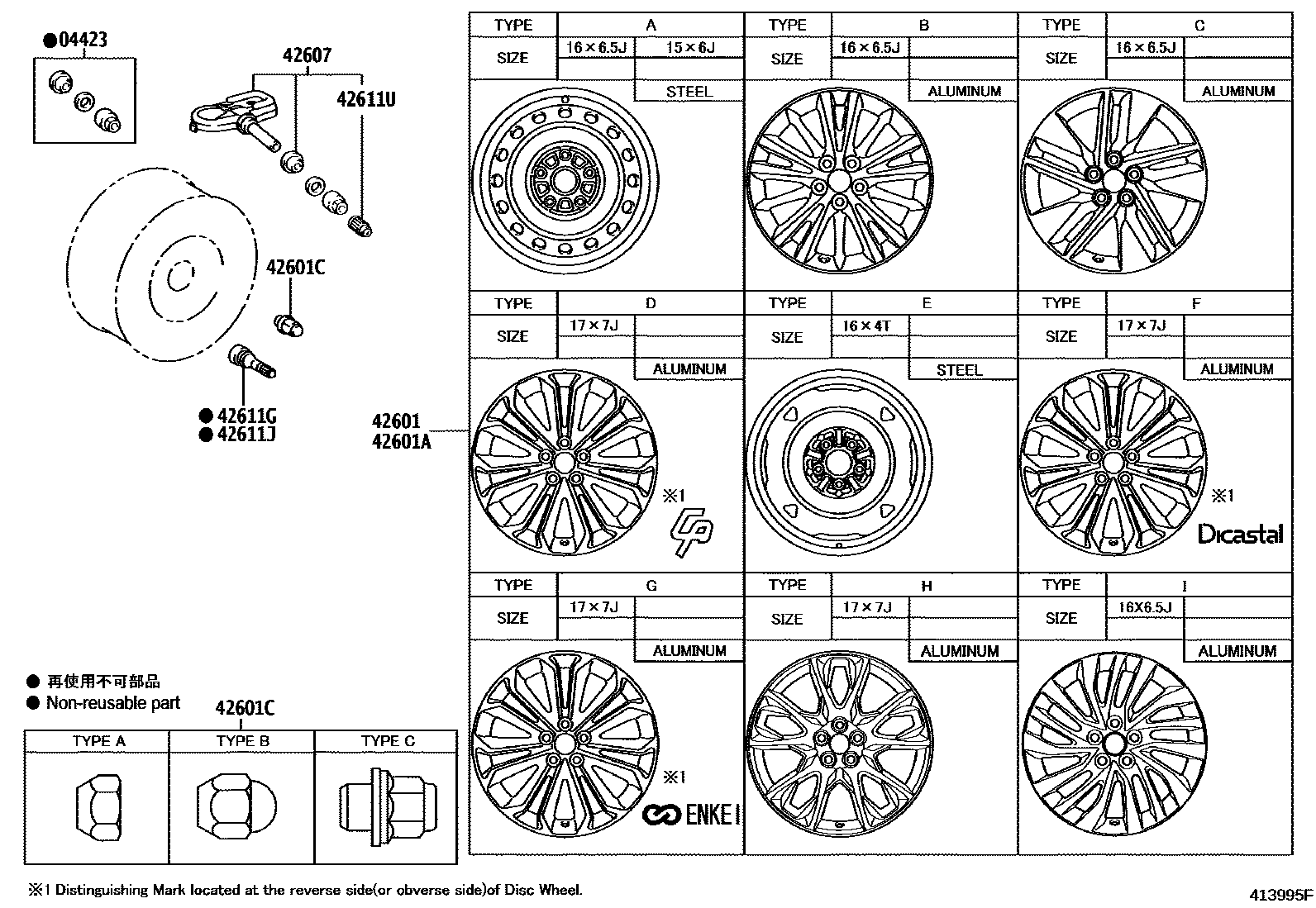

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
15X6J,#,TIRE & DISC WHEEL-195/65R15 STEEL OS33,TYPE A:REFER ILLUST.
15X6J,#,TYPE A:REFER ILLUST.
15X6J,#,TIRE & DISC WHEEL-195/65R15 STEEL OS33&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE A:REFER ILLUST.
15X6J,#,TIRE & DISK WHEEL-195/65R15 STEEL OS33&TIRE INFLATION PRESS WRNG-W/O,TYPEA:REFER ILLUST.
15X6J,#,TIRE & DISK WHEEL-195/65R15 STEEL OS33,TYPE A:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 STEEL OS39,TYPE A:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-P205/55R16 STEEL OS39,TYPE A:REFER ILLUST.
16X6.5J,#,PLUS2 PACKAGE,TYPE B:REFER ILLUST.
16X6.5J,#,PLUS1 PACKAGE,TYPE B:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE B:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-P205/55R16 ALUMI OS39&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
17X7J,#,SPORT PLUS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE D:REFER ILLUST.
sub42611-02L30
17X7J,#,SPORT PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE D:REFER ILLUST.
sub42611-02L30
17X7J,#,SPORT PLUS PACKAGE,TYPE D:REFER ILLUST.
sub42611-02L30
17X7J, #,SPORT PLUS PACKAGE,TYPE G:REFER ILLUST.
17X7J, #,SPORT PLUS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE G:REFER ILLUST.
17X7J, #,SPORT PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE G:REFER ILLUST.
17X7J, #,SPORT PACKAGE,TYPE G:REFER ILLUST.
16X6.5J,#,TYPE C:REFER ILLUST.
17X7J,#,SPORT PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE F:REFER ILLUST.
17X7J,#,SPORT PACKAGE,TYPE F:REFER ILLUST.
17X7J,#,SPORT PLUS PACKAGE,TYPE F:REFER ILLUST.
17X7J,#,SPORT PLUS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE F:REFER ILLUST.
17X7J,#,CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE D:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-P205/55R16 ALUMI OS39&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,PLUS1 PACKAGE,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,PLUS2 PACKAGE,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 ALUMI OS39,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 ALUMI OS39&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TYPE I:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI,TYPE I:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI&TIRE INFLATION PRESS WRNG-W/O,TYPE I:REFER ILLUST.
16X6.5J,#,PLUS3 PACKAGE,TYPE I:REFER ILLUST.
17X7J,#,SPORT PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE J:REFER ILLUST.
sub42611-02P80
17X7J,#,SPORT PLUS PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE J:REFER ILLUST.
sub42611-02P80
17X7J,#,PLUS3 PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE J:REFER ILLUST.
sub42611-02P80
17X7J,#,SPORT PLUS PACKAGE,TYPE K:REFER ILLUST.
17X7J,#,SPORT PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE K:REFER ILLUST.
17X7J,#,SPORT PLUS PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE K:REFER ILLUST.
17X7J,#,PLUS3 PACKAGE,TYPE K:REFER ILLUST.
17X7J,#,SPORT PACKAGE,TYPE K:REFER ILLUST.
17X7J,#,PLUS3 PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE K:REFER ILLUST.
17X7J,#,USA 50TH ANNIVERSARIES,TYPE H:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE E:REFER ILLUST.
17X7J,#,CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE D:REFER ILLUST.
17X7J,#,CANADA 50TH(RED),TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
PLUS1 PACKAGE&WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
PUERTO RICO SPEC&PLUS1 PACKAGE&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
PUERTO RICO SPEC&PLUS2 PACKAGE&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
PLUS1 PACKAGE&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
PLUS2 PACKAGE&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PACKAGE&WHEEL CAP-CTR-ORNAMENT (IN-TYPE),TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PLUS PACKAGE&WHEEL CAP-CTR-ORNAMENT (IN-TYPE),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS1 PACKAGE&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS2 PACKAGE&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS3 PACKAGE&WHEEL CAP-CTR-ORNAMENT (IN-TYPE),TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P205/55R16 ALUMI OS39&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPEC:REFER ILLUST.
sub90942-A1009
SPORT PACKAGE&WHEEL CAP-M+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PLUS PACKAGE&WHEEL CAP-M+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS1 PACKAGE&WHEEL CAP-C+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS2 PACKAGE&WHEEL CAP-C+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS3 PACKAGE&WHEEL CAP-M+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P205/55R16 ALUMI OS39&WHEEL CAP-C+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
WHEEL CAP-M+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI&WHEEL CAP-M+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI&WHEEL CAP-CTR-ORNAMENT (IN-TYPE),TYPEC:REFER ILLUST.
sub90942-A1009
PUERTO RICO SPEC&PLUS1 PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-P205/55R16 ALUMIOS39,TYPE C:REFER ILLUST.
sub90942-A1009
PUERTO RICO SPEC&PLUS2 PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-P205/55R16 ALUMIOS39,TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PACKAGE&WHEEL LOCKS-WITH&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PLUS PACKAGE&WHEEL LOCKS-WITH&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
PLUS1 PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
PLUS2 PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
CANADA 50TH(RED)&WHEEL LOCKS-WITH&WHEEL CAP-CTR-ORNAMENT(ALL BLACK),TYPE C:REFER ILLUST.
sub90942-A1009
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-P205/55R16 ALUMI OS39,TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PACKAGE&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PLUS PACKAGE&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
CANADA 50TH(RED)&WHEEL CAP-CTR-ORNAMENT(ALL BLACK),TYPE C:REFER ILLUST.
sub90942-A1009
WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PACKAGE&WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
SPORT PLUS PACKAGE&WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEEL LOCK NUT,TYPE C:REFERILLUST.
sub90942-A1009
PLUS2 PACKAGE&WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
CANADA 50TH(RED)&WHEEL CAP-CTR-ORNAMENT(BLACK) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P205/55R16 ALUMI OS39&WHEEL CAP-CNETER-ORNAMENT(ALM) WITH WHEELLOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
USA SP-ED RED&WHEEL CAP-CTR-ORNAMENT(BLACK) WITH WHEEL LOCK NUT,TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISC WHEEL-P205/55R16 ALUMI OS39&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPEC:REFER ILLUST.
sub90942-A1009
USA SP-ED RED&WHEEL CAP-CTR-ORNAMENT(ALL BLACK),TYPE C:REFER ILLUST.
sub90942-A1009
USA 50TH ANNIVERSARIES&WHEEL CAP-C+W/WHEEL LOCK NUT(ILA),TYPE C:REFER ILLUST.
sub90942-A1009
USA 50TH ANNIVERSARIES&WHEEL CAP-CENTER ORNAMENT(FOR ALUMI),TYPE C:REFER ILLUST.
sub90942-A1009
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-195/65R15 STEEL OS33&WHEEL CAP-FULL CAP 15",TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-195/65R15 STEEL OS33&WHEEL CAP-FULL CAP 15",TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-195/65R15 STEEL OS33,TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 STEEL OS39,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
PUERTO RICO SPEC,TYPE B:REFER ILLUST.
WHEEL CAP-WITHOUT,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-P205/55R16 STEEL OS39,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
PLUS3 PACKAGE
SPORT PACKAGE
SPORT PLUS PACKAGE
CANADA 50TH(RED)
USA SP-ED RED
USA 50TH ANNIVERSARIES
42611GVALVE (FOR TUBELESS TIRE)
CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE A:REFER ILLUST.
TIRE INFLATION PRESSURE WARNING-WITHOUT
TIRE & DISC WHEEL-P205/55R16 ALUMI OS39&TIRE INFLATION PRESSURE WARNING-WITHOUT
TIRE & DISC WHEEL-195/65R15 STEEL OS33&TIRE INFLATION PRESSURE WARNING-WITHOUT
SPORT PLUS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT
SPORT PACKAGE&TIRE INFLATION PRESSURE WARNING-WITHOUT
PLUS3 PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
SPORT PLUS PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
SPORT PACKAGE&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 ALUMI OS39&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-195/65R15 STEEL OS33&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFERILLUST.
CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 AL OS39(ECO)HI&TIRE INFLATION PRESS WRNG-W/O,TYPE B:REFER ILLUST.
CANADA 50TH(RED)&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
CANADA 50TH(RED)
SPORT PLUS PACKAGE
SPORT PACKAGE
PLUS3 PACKAGE
USA 50TH ANNIVERSARIES
USA SP-ED RED
8 parts on this diagram · 2 diagrams in section
