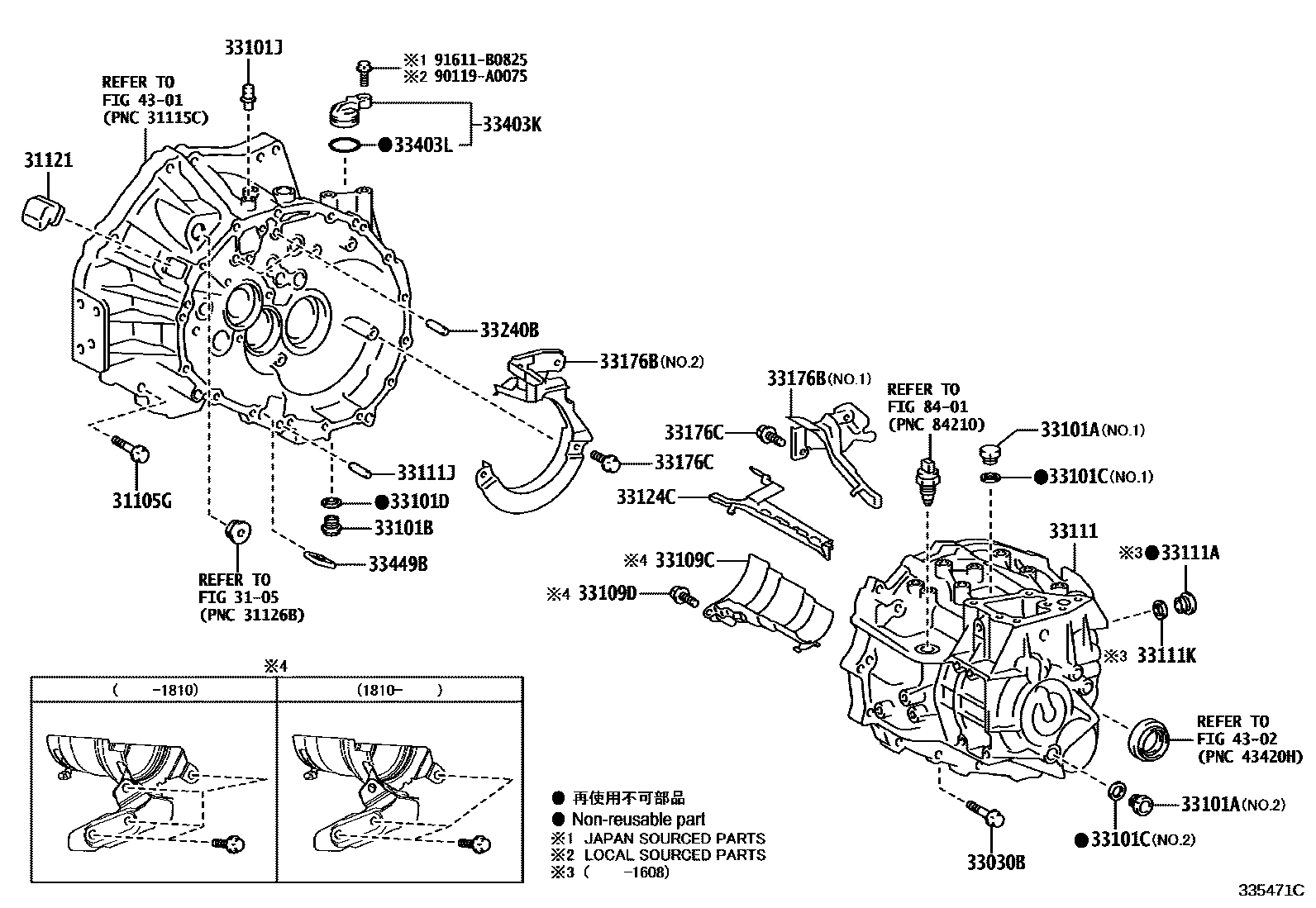

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-A0140×7iZRE172..6F201308-201608

*10-1.25PX45-30,(L)

main91612-61045×7iZRE172..6F201308-201608

*10-1.25PX45-30,(J)

31121COVER, CLUTCH HOUSING, NO.1

main31121-52020iZRE172..6F201308-201608

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840×16iZRE172..6F201308-201608

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZRE172..6F201308-201608

NO.1

main90341-18033iZRE172..6F201308-201608

NO.2

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18023iZRE172..6F201608

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iZRE172..6F201308-201608

NO.2

main90430-14003iZRE172..6F201308-201608

NO.1

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main12157-10010iZRE172..6F201308-201608

33101JPLUG, BREATHER

main90930-03133iZRE172..6F201308-201608

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-20020iZRE172..6F201308-201505

main33109-52010iZRE172..6F201505-201608

main33109-52011iZRE172..6F201810

REFER TO ILLUST.

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816×4iZRE172..6F201308-201608

33111CASE, MANUAL TRANSMISSION

main33111-12291iZRE172..6F201608-201802

sub33290-12040

main33111-12292iZRE172..6F201802

sub33111-12293

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iZRE172..6F201308-201608

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×3iZRE172..6F201308-201608

L=23,OD=8

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iZRE172..6F201308-201608

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20080iZRE172..6F201308-201608

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-20080iZRE172..6F201608

NO.1

main33176-20090iZRE172..6F201308-201608

NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816×6iZRE172..6F201308-201608

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054×2iZRE172..6F201308-201608

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZRE172..6F201308-201608

33403LRING, O

main96711-24030iZRE172..6F201308-201608

33449BMAGNET, TRANSMISSION

main33449-20010iZRE172..6F201308-201608

4301

4302

8401

90119A0075

main90119-A0075

91611B0825

main91611-B0825

27 parts on this diagram · 1 diagram in section
