23221PUMP, FUEL

main23220-0H130i200801-201012

main23220-0H131i201108

main23220-0H140i201012-201107

main23220-0H141i201108-201308

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i200801-201012

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i200801-201012

NO.1:REFER ILLUST.

main90301-11025i201012-201308

NO.4

main90301-15024i200801-201012

NO.2:REFER ILLUST.

main90301-A0013i200801-201012

NO.3:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02270i200801-201012

main77020-02291i201012

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-02080i200801-201012

main77024-02180i200801-201012

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02210i200801-201012

77100TANK ASSY, FUEL

main77001-02330i200801-201012

main77001-02350i200801-201010

sub77001-01070

main77001-02351i201011-201012

main77001-02610i201308-201401

main77001-02800i201402

77144RETAINER, FUEL PUMP GAUGE

main77144-04010i200801-201012

sub77144-04020

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02050i200801-201012

main77169-52010i200801-201012

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02070i200801-201012

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77196-02060i200801-201012

main77197-01010i200801-201012

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-02260i200801-201012

main77210-02261i201109-201112

main77210-02262i201112-201308

main77210-02270i200801-201012

main77210-02271i201109-201112

main77210-02272i201112

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02110i200801-201012

main77209-02120i200801-201012

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02060i200801-201012

77214PIPE, FUEL TANK FILLER

main77201-02230i200801-201012

main77201-02231i201112-201308

main77201-02240i201012-201112

main77201-02241i201112

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02080i200801-201012

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02050i200801-201012

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02030i200801-201012

77219COVER, FUEL TANK FILLER PIPE

main77219-06040i200801-201012

main77219-0E010i201112

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-02020×2i200801-201012

77241WCLIP, TUBE JOINT

main77241-02010i200801-201012

main77241-06020i200801-201012

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06020i201012-201112

77276PROTECTOR, FUEL HOSE

main77276-02020i200801-201012

main77276-02050i201308

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02080i200801-201012

main77277-02140i201205

(L)

main77277-12270i201109

(J)

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-02070i200801-201012

main77281-02080i201012-201308

77281ACLAMP, FUEL FILLER PIPE

main77281-02050i200801-201012

NO.1

main77281-02060i200801-201012

NO.1

main77281-12210i201109

NO.2

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110i200801-201012

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06050i201012-201112

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02110i200801-201012

77295CGROMMET, FUEL TUBE

main77295-12070×2i200801-201012

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-02010i200801-201012

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13030i200801-201012

77310ACAP ASSY, FUEL TANK

main77300-06040i201012

77316GASKET, FUEL TANK CAP

main77316-06070i201012

77350LID ASSY, FUEL FILLER OPENING

main77350-02060i200801-201012

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-02030i200801-201012

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-AA020i200801-201012

77391RING, FUEL INLET BOX

main77391-02041i200801-201012

77391ARING, FUEL INLET BOX

main77391-02080i200801-201012

77444HOSE, FUEL TANK VENT

main77404-02080i201012

main77404-02090i201012-201308

main77404-02100i201012-201308

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02160i201308

sub77601-02161

main77601-12360i200801-201012

main77601-12370i201012-201307

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02140i201308

sub77602-02141

main77602-12270i200801-201012

main77602-12280i200801-201012

77613BOLT, FUEL TANK BAND SET

main90080-11267×4i200801-201012

main90119-A0267×4i201308

77641APROTECTOR, FUEL TANK, NO.1

main77641-02130i200801-201012

main77641-02131i201110-201307

main77641-02200i201308

77651ACUSHION, FUEL TANK, NO.1

main77651-12080×2i200801-201012

main77651-20090×5i200801-201012

77652ACUSHION, FUEL TANK, NO.2

main77652-02060i200801-201012

77653ACUSHION, FUEL TANK, NO.3

main77653-02010i200801-201012

main77653-60060×2i201012-201308

77740CANISTER ASSY, CHARCOAL

main77740-02130i201012-201203

main77740-02131i201203

main77740-02180i201012-201203

main77740-02181i201203-201308

main77740-02190i201012-201112

main77740-02191i201112-201308

77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER

main90910-AF002i201012

sub90910-AF005

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-02040i200801-201012

main77754-02070i200801-201012

main77754-02071i201112-201308

77779TUBE, CHARCOAL CANISTER OUTLET

main77779-02020i200801-201012

main77779-02021i201112

77785HARNESS, FUEL PUMP

main77785-02030i200801-201012

main77785-02031i201401

8401

9008011221

main90080-11221

90105A0206

main90105-A0206

90119A0095

main90119-A0095

90119A0107

main90119-A0107

90119A0109

main90119-A0109

9015960602

main90159-60602

90269A0003

main90269-A0003

9046040007

main90460-40007

9046046005

main90460-46005

9050609004

main90506-09004

9099992002

main90999-92002

9613251300

main96132-51300

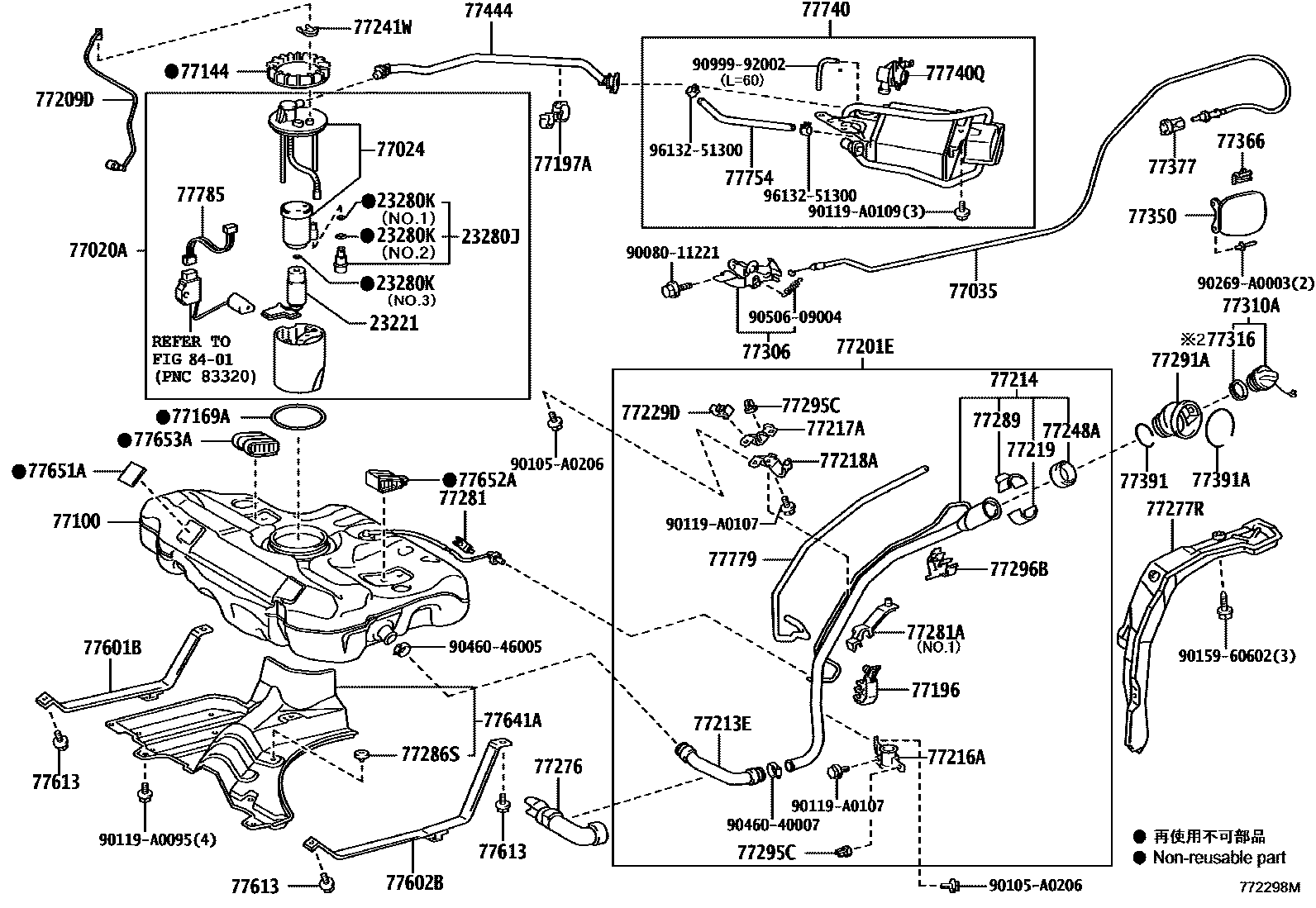

FUEL TANK & TUBE
