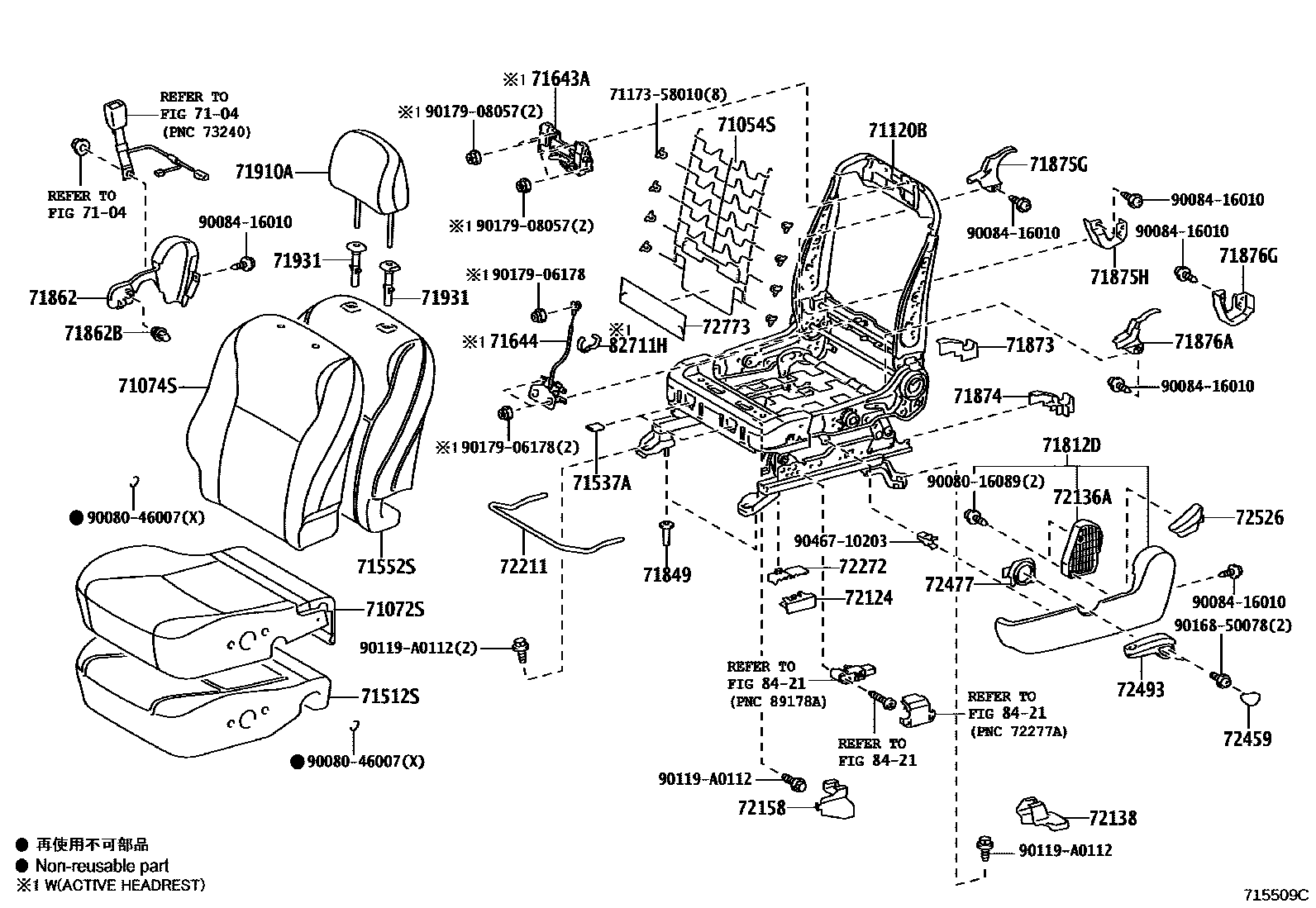

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1PASSENGER SEAT 0004 1DRIVER SEAT-W(SRS SIDE AIR BA0005 1PASSENGER SEAT-W(SRS SIDE AIR0006 1PASSENGER SEAT-W(SRS SIDE AIR0007 1DRIVER SEAT 0008 1PASSENGER SEAT 0009 1PASSENGER SEAT(FLAT FOLDING T

7104

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-02160iAZE144,146;AZE141,ZRE142..USA200801-201406

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-02K00-B4iAZE146200801-201012

DK GRAY,TRIM13

main71072-02K00-B5iAZE146200801-201012

GRAY,TRIM12

main71072-02K20-B6iAZE141,144,ZRE142200801-201012

GRAY,TRIM12

main71072-02K20-B7iAZE141,144,ZRE142200801-201012

DK GRAY,TRIM13

main71072-02V50-B0iAZE141,144,ZRE142201012-201310

DK. GRAY,TRIM13

sub71072-02V51

main71072-02V50-B1iAZE141,144,ZRE142201012-201310

GRAY,TRIM12

sub71072-02V51

main71072-02V51-B1iZRE142201311-201406

GRAY,TRIM1#

main71072-02W70-B0iAZE146201012-201308

DK. GRAY,TRIM13

main71072-02W70-B1iAZE146201012-201308

GRAY,TRIM12

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-02R00-B1iAZE141,ZRE142..(5F,5FC)..USA200801-200902

GRAY,TRIM12

main71074-02R00-B2iAZE141,ZRE142..(5F,5FC)..USA200801-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER),DK. GRAY,TRIM13

main71074-02R10-B1iAZE141,144,ZRE142..CND200801-201012

GRAY,TRIM12

main71074-02R10-B2iAZE141,144,ZRE142..USA200801-201012

DK. GRAY,TRIM13

main71074-02V60-B0iAZE146200801-201012

DK. GRAY,TRIM13

main71074-02V60-B1iAZE146200801-201012

GRAY,TRIM12

main71074-02W50-B0iAZE144..CND200801-200902

GRAY,TRIM12

main71074-02W50-B1iAZE144..CND200801-200902

DK. GRAY,TRIM13

main71074-0Z300-B0iAZE141,144,ZRE142201012-201310

DK. GRAY,TRIM13

sub71074-0Z301

main71074-0Z300-B1iAZE141,144,ZRE142201012-201310

GRAY,TRIM12

sub71074-0Z301

main71074-0Z301-B1iZRE142201311-201406

GRAY,TRIM1#

main71074-0Z370-B0iAZE146201012-201308

DK. GRAY,TRIM13

main71074-0Z370-B1iAZE146201012-201308

GRAY,TRIM12

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-02110iAZE144,146;AZE141,ZRE142..USA200801-201406

main71120-02120iAZE141,ZRE142..(5F,5FC)..USA200801-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02240iAZE14#,ZRE142200801-201406

71537APROTECTOR, FRONT SEAT CUSHION

main71537-AA020iAZE14#,ZRE142200801-201406

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-01040iAZE144..CND200801-200902

main71552-02380iAZE141,ZRE142..(5F,5FC)..USA200801-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main71552-02530iAZE14#,ZRE142201012-201406

71643AUNIT, ACTIVE HEADREST, UPR

main71643-04010iAZE146;AZE141,144,ZRE142..USA200811-201406

main71643-12011iAZE146;AZE141,144,ZRE142..USA200801-200810

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

main71643-12011iAZE144..CND200801-200902

71644UNIT, ACTIVE HEADREST, LWR

main71644-04010iAZE141,144..CND200811-201308

LH SEAT

main71644-04020iAZE14#200811-201308

RH SEAT

main71644-12030iZRE142..USA200801-200810

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),LH SEAT

main71644-12030iAZE144..CND200801-200902

LH SEAT

main71644-12040iAZE144,146;AZE141..USA200801-200802

RH SEAT

sub71644-12050

main71644-12050iAZE146;AZE141,144..USA200803-200902

RH SEAT

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02360-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-02010iAZE14#,ZRE142200801-201406

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02150-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main71769-33020iAZE14#,ZRE142200801-201406

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0C060-C0iAZE146;AZE141,144,ZRE142..USA200801-201406

BLACK,TRIM1#

sub71873-0C060

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0C030-C0iAZE146;AZE141,144,ZRE142..USA200801-201406

BLACK,TRIM1#

sub71874-0C030

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-02130-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-AA060iAZE14#,ZRE142200801-201406

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-02130-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-AA060iAZE14#,ZRE142200801-201406

71910AHEADREST ASSY, FRONT SEAT

main71910-02B30-B1iAZE146200801-200910

DK. GRAY,TRIM13

main71910-02B30-B2iAZE146200801-200910

GRAY,TRIM12

main71910-02B31-B1iAZE146200910-201009

DK. GRAY,TRIM13

sub71910-02F70

main71910-02B31-B2iAZE146200910-201009

GRAY,TRIM12

sub71910-02F70

main71910-02B50-B0iAZE141,144,ZRE142200801-200910

DK. GRAY,TRIM13

main71910-02B50-B1iAZE141,144,ZRE142200801-200910

GRAY,TRIM12

main71910-02B51-B0iAZE141,144,ZRE142200910-201009

DK. GRAY,TRIM13

sub71910-02F60

main71910-02B51-B1iAZE141,144,ZRE142200910-201009

GRAY,TRIM12

sub71910-02F60

main71910-02F60-B0iAZE141,144,ZRE142201009-201310

DK. GRAY,TRIM13

main71910-02F60-B1iAZE141,144,ZRE142201009-201310

GRAY,TRIM12

main71910-02F61-B1iZRE142201311-201406

GRAY,TRIM1#

main71910-02F70-B0iAZE146201009-201308

DK. GRAY,TRIM13

main71910-02F70-B1iAZE146201009-201308

GRAY,TRIM12

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0iAZE14#,ZRE142200801-201406

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020

sub71930-02370

main71931-47010-B2iAZE14#,ZRE142200801-201406

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47010

sub71931-42020

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-02030iAZE14#,ZRE142200801-201406

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-02060iAZE14#,ZRE142200801-201406

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-02070iAZE14#,ZRE142200801-201406

72138COVER, SEAT TRACK, OUTER LH

main72138-02100-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-02120-B0iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-02090iAZE14#,ZRE142200801-201406

72272CLAMP, SEAT TRACK CONTROL CABLE

main72272-02060iAZE14#,ZRE142200801-201406

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72459-AA020-B1iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

sub72459-AA020

72477SPACER, VERTICAL ADJUSTER

main72477-02010iAZE14#,ZRE142200801-201406

72493HANDLE, VERTICAL ADJUSTING, NO.2

main72493-AA020-B1iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-AA030-B1iAZE14#,ZRE142200801-201406

DK.GRAY,TRIM1#

72773PLATE, LUMBAR SUPPORT

main72773-02010iAZE14#,ZRE142200801-201406

82711HCLAMP, WIRING HARNESS

main82711-2B660iZRE142200902-201308

main82711-2B660iZRE142..USA200801-200902

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

8421

7117358010PLATE, FRONT SEATBACK SPRING SET, INSIDE NO.1 LH

main71173-58010

9008016089

main90080-16089

9008046007

main90080-46007

9008416010

main90084-16010

90119A0112

main90119-A0112

9016850078

main90168-50078

9017906178

main90179-06178

9017908057

main90179-08057

9046710203

main90467-10203

45 parts on this diagram · 9 diagrams in section
