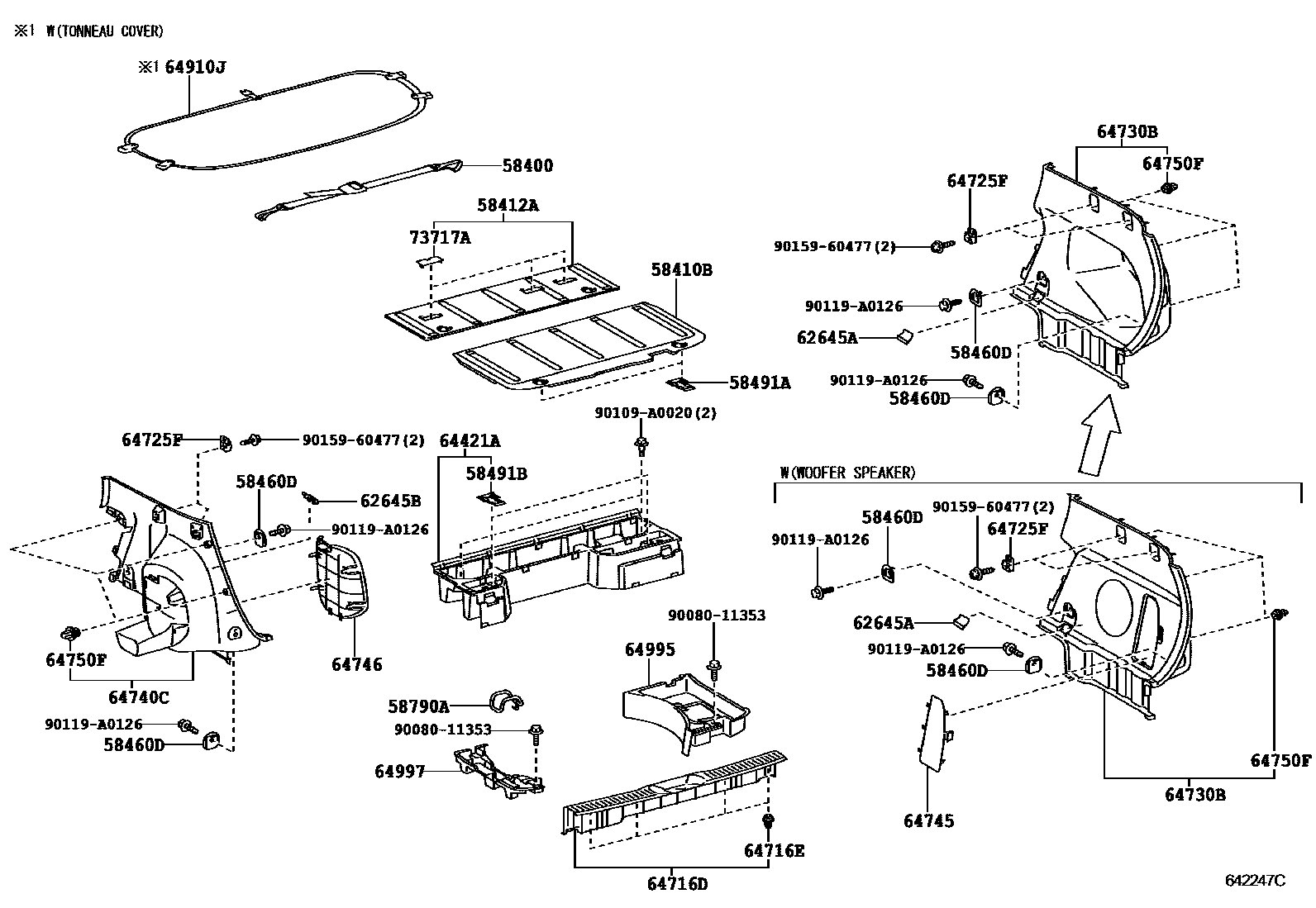

DECK BOARD & DECK TRIM COVER

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-01010iAZE14#,ZRE142200801-201012

58410BBOARD ASSY, DECK

main58410-02010-B0iAZE14#,ZRE142200801-201406

DK. GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-02030-B0iAZE14#,ZRE142200801-201406

DK. GRAY,TRIM1#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAZE14#,ZRE142200801-201012

58491ABASE, DECK BOARD LOCK, NO.1

main58491-12021iAZE14#,ZRE142200801-201012

58491BBASE, DECK BOARD LOCK, NO.2

main58491-12021iAZE14#,ZRE142200801-201012

58790ACARRIER ASSY, JACK

main58790-52020iAZE14#,ZRE142200801-201012

62645ACOVER, SHOCK ABSORBER HEAD, RH

main62645-02010-B0iAZE14#,ZRE142200801-201012

GRAY,TRIM1#

62645BCOVER, SHOCK ABSORBER HEAD, LH

main62645-02020-B0iAZE14#,ZRE142200801-201012

GRAY,TRIM1#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-02010iAZE14#,ZRE142200801-201012

64716DCOVER, DECK TRIM, REAR

main64716-01060-B0iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-A0006iAZE14#,ZRE142200801-201012

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-02050-B0iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-02110-B0iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-02100-B0iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02230

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-02100-B0iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-A0006iAZE14#,ZRE142200801-201012

64910JCOVER ASSY, TONNEAU

64995BOX, DECK FLOOR, RH

main64995-02050iAZE14#,ZRE142200801-201012

64997BOX, DECK FLOOR, LH

main64997-02050iAZE14#,ZRE142200801-201012

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-01010-B1iAZE14#,ZRE142200801-201406

GRAY,TRIM1#

9008011353

main90080-11353

90109A0020

main90109-A0020

90119A0126

main90119-A0126

9015960477

main90159-60477

26 parts on this diagram · 1 diagram in section
