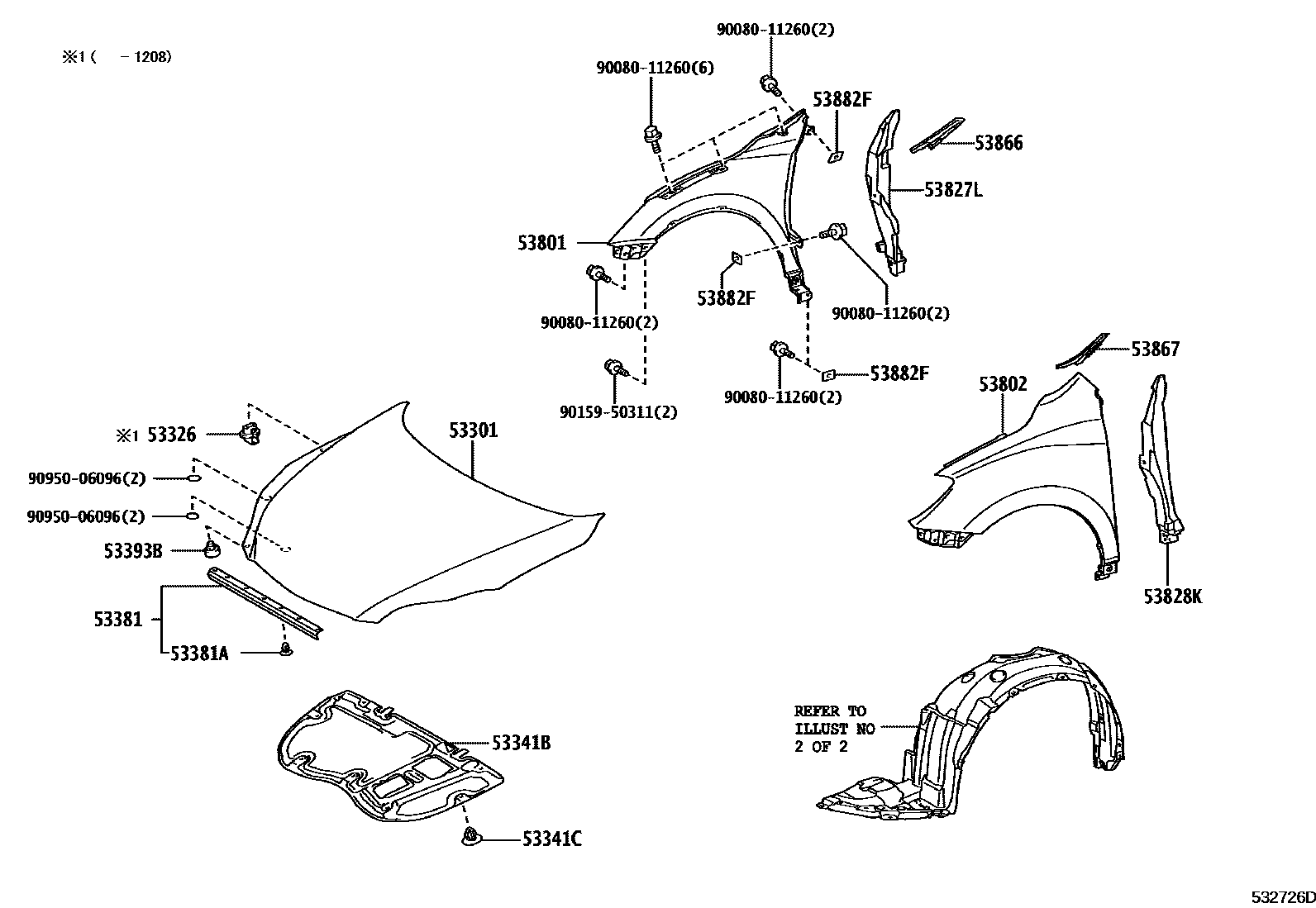

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-02220iAZE14#,ZRE142200801-201012

53326CLIP, HOOD PROTECTOR

main53326-52010iAZE14#,ZRE142200801-201012

53341BINSULATOR, HOOD

main53341-02230iAZE14#,ZRE142200801-201012

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003×7iAZE14#,ZRE142200801-201012

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02120iAZE14#,ZRE142200801-201012

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iAZE14#,ZRE142200801-201012

53393BPROTECTOR, HOOD, FRONT

main53393-02010×2iAZE14#,ZRE142200801-201012

53801FENDER SUB-ASSY, FRONT RH

main53801-02120iAZE14#,ZRE142200801-201012

53802FENDER SUB-ASSY, FRONT LH

main53802-02120iAZE14#,ZRE142200801-201012

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02100iAZE14#,ZRE142200801-201012

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02100iAZE14#,ZRE142200801-201012

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-02030iAZE14#,ZRE142200801-201012

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-02030iAZE14#,ZRE142200801-201012

53882FSEAL, FRONT FENDER

main53882-16030×6iAZE14#,ZRE142201012-201307

main53882-33060×6iZRE142201308

9008011260

main90080-11260

9015950311

main90159-50311

9095006096

main90950-06096

17 parts on this diagram · 2 diagrams in section
