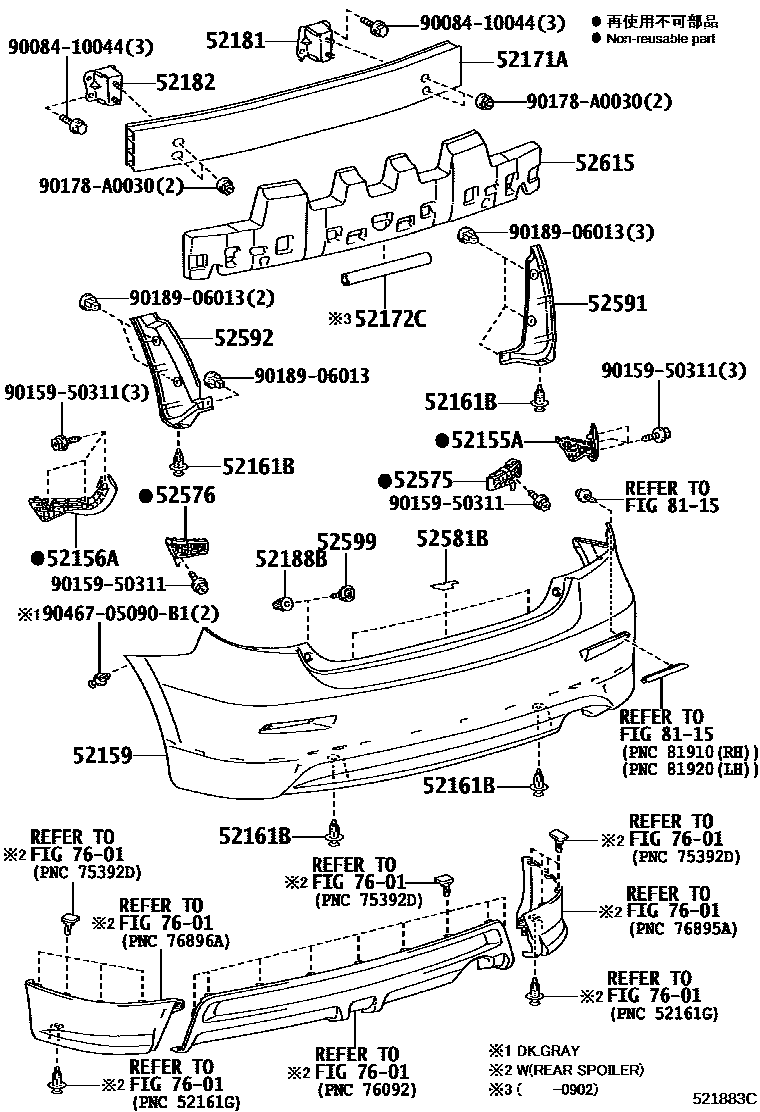

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1SPORT PACKAGE OR SPORT TYPE

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02100iAZE14#,ZRE142200801-201012

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02090iAZE14#,ZRE142200801-201012

52159COVER, REAR BUMPER

main52159-02967iAZE141,144,ZRE142201012-201406

PAINT REQ.

main52159-02968supersedes 52159-02967iAZE146200801-201012

PAINT REQ.,FRONT SPOILER-WITH&REAR SPOILER-WITH RR BUMPER LWR ONLY

main52159-02979iAZE146201012-201308

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02020×8iAZE146201012-201308

SPORT PACKAGE(CANADA)

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02151iAZE14#,ZRE142200801-201012

52172CREINFORCEMENT, REAR BUMPER BAR, CENTER

main52172-AA010iAZE14#,ZRE142200801-200902

52181ARM, REAR BUMPER, RH

main52181-02120iAZE14#,ZRE142200801-201012

52182ARM, REAR BUMPER, LH

main52182-02090iAZE14#,ZRE142200801-201012

52188BSPACER, REAR BUMPER MOUNTING

main52188-02070×2iAZE14#,ZRE142200801-201012

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02080iAZE14#,ZRE142201012

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02080iAZE14#,ZRE142200801-201012

52581BPROTECTOR, REAR BUMPER

main52581-02020×3iAZE14#,ZRE142200801-201012

52591SEAL, REAR BUMPER SIDE, RH

main52591-02170iAZE141,144,ZRE142201012

main52591-02230iAZE146201012-201308

SPORT PACKAGE(CANADA)

52592SEAL, REAR BUMPER SIDE, LH

main52592-02160iAZE141,144,ZRE142201012

main52592-02230iAZE146201012-201308

SPORT PACKAGE(CANADA)

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iAZE14#,ZRE142200801-201012

52615ABSORBER, REAR BUMPER ENERGY

main52615-02081iAZE14#,ZRE142200801-200910

main52615-02082iAZE14#,ZRE142200911-201012

7601

8115

9008410044

main90084-10044

9015950311

main90159-50311

90178A0030

main90178-A0030

9018906013

main90189-06013

9046705090B1

main90467-05090B1

23 parts on this diagram · 4 diagrams in section
