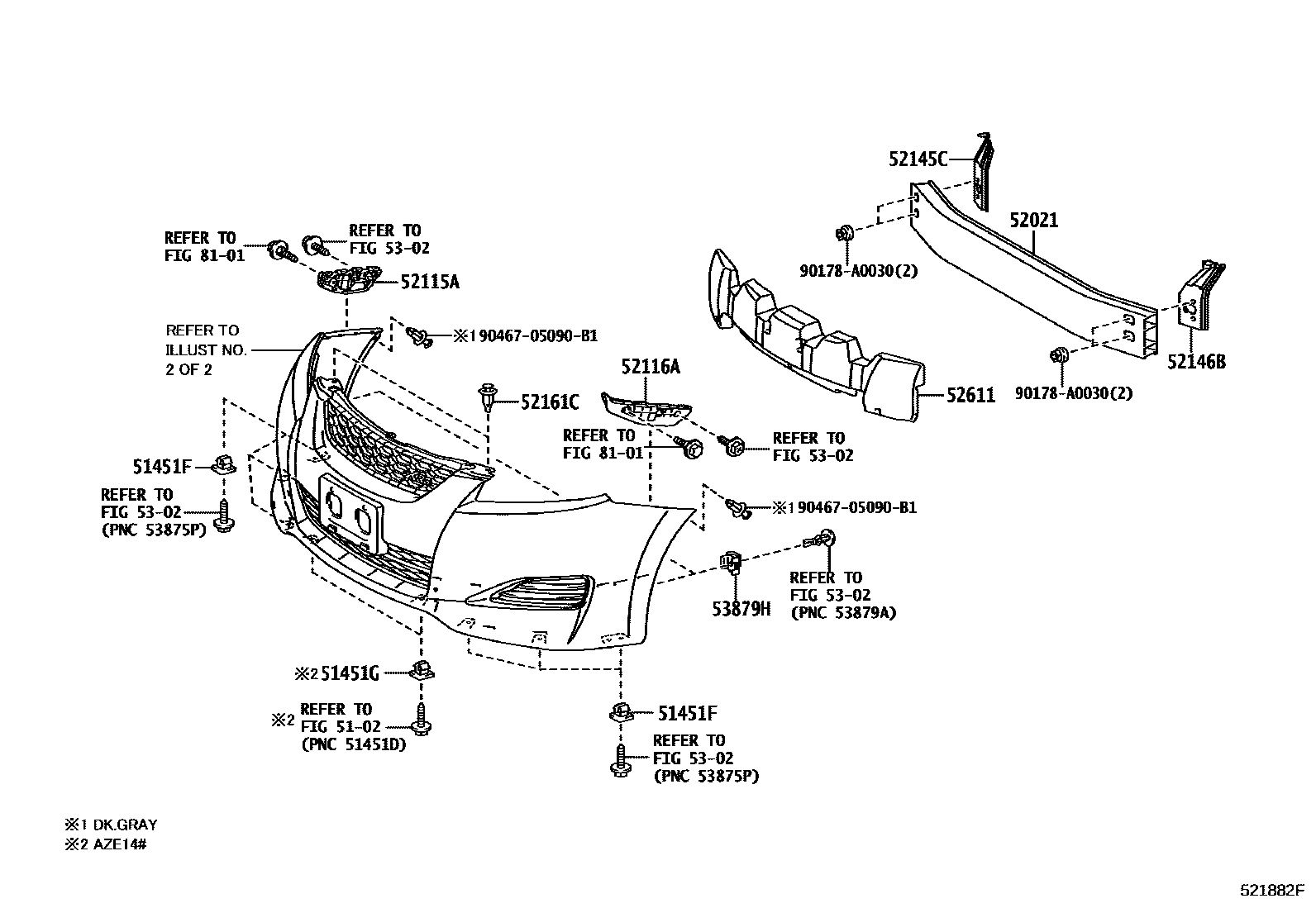

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1W(FRONT SPOILER) 0004 1W(FRONT SPOILER) 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1SPORT PACKAGE 0012 1SPORT PACKAGE 0013 1SPORT PACKAGE OR SPORT TYPE 0014 1SPORT PACKAGE OR SPORT TYPE

5102

51451FGROMMET, NO.1

main90189-06193iAZE14#,ZRE142200801-201406

51451GGROMMET, NO.2

main90189-06193iZRE142200801-201012

FRONT SPOILER-WITH&FRONT FOG LAMP-WITH

main90189-06193iAZE14#201012-201308

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02160iAZE14#,ZRE142200801-201406

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02120iAZE14#,ZRE142200801-201012

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02120iAZE14#,ZRE142200801-201012

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02140iAZE14#,ZRE142200801-201012

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02130iAZE14#,ZRE142200801-201012

52161CPIECE, FRONT BUMPER

main52161-02020iAZE144,ZRE142..CND201012-201308

SPORT PACKAGE(USA)

main52161-02020iAZE141..USA200801-200902

main52161-02020iAZE141..CND;AZE144,ZRE142200801-201012

FRONT SPOILER-WITH&FRONT FOG LAMP-WITH

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02160iAZE14#,ZRE142200801-200910

sub52611-02161

main52611-02161iAZE14#,ZRE142200911-201012

5302

53879HRETAINER, FRONT FENDER LINER

main53879-58010iAZE14#,ZRE142200801-201406

8101

90178A0030

main90178-A0030

9046705090B1

main90467-05090B1

15 parts on this diagram · 14 diagrams in section
