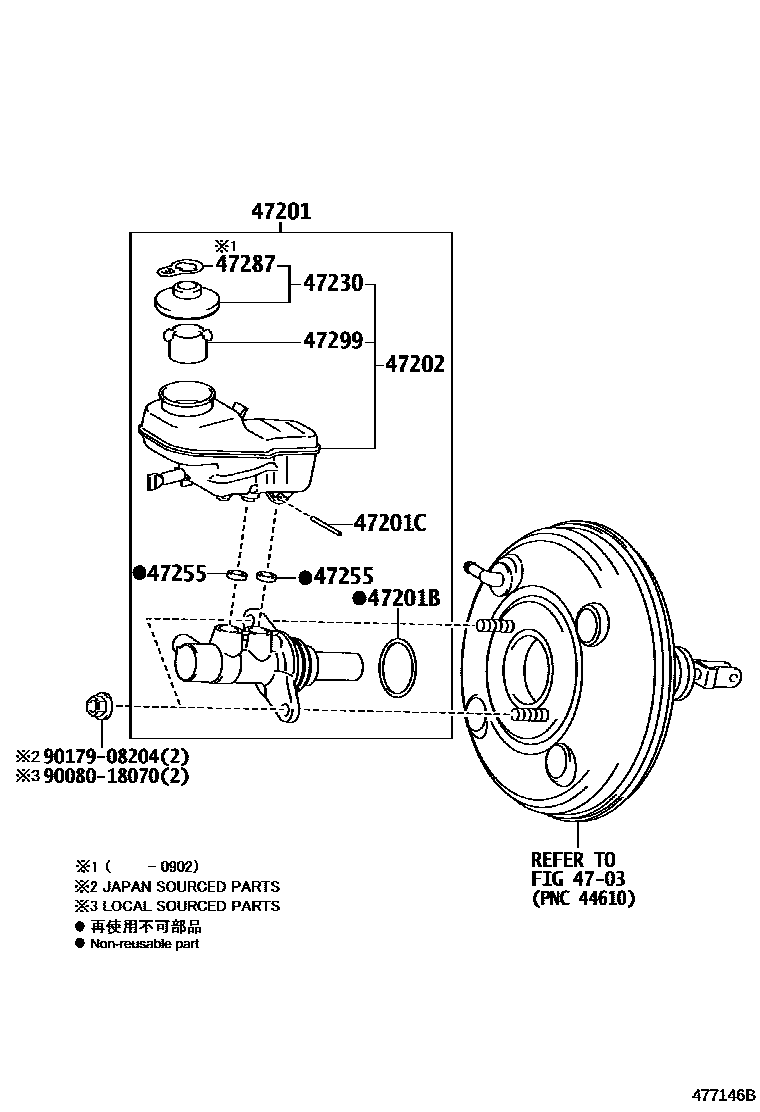

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02480supersedes 47201-02490iZRE142200801-200902

VSC-WITH(W/CUT OFF SW)

main47201-02481iAZE14#200902-201012

sub47201-02482

main47201-02483iAZE14#201206-201308

main47201-02591supersedes 47201-02491iZRE142201012-201205

main47201-02593iZRE142201206-201307

main47201-02660iZRE142..4FC..CND201307

main47201-02670iZRE142..USA;ZRE142..5F..CND201307

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAZE14#,ZRE142200801-201012

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAZE14#,ZRE142200801-201012

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02270iAZE14#,ZRE142200801-200902

main47220-02271iAZE14#,ZRE142200902-201012

main47220-02340iZRE142..4FC..CND201307

main47220-02350iZRE142..USA;ZRE142..5F..CND201307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iAZE14#,ZRE142200902-201012

sub47230-01031

main47230-02270iAZE14#,ZRE142200801-200902

sub47230-02271

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAZE14#,ZRE142201012

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAZE14#,ZRE142200801-200902

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAZE14#,ZRE142200801-201012

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
