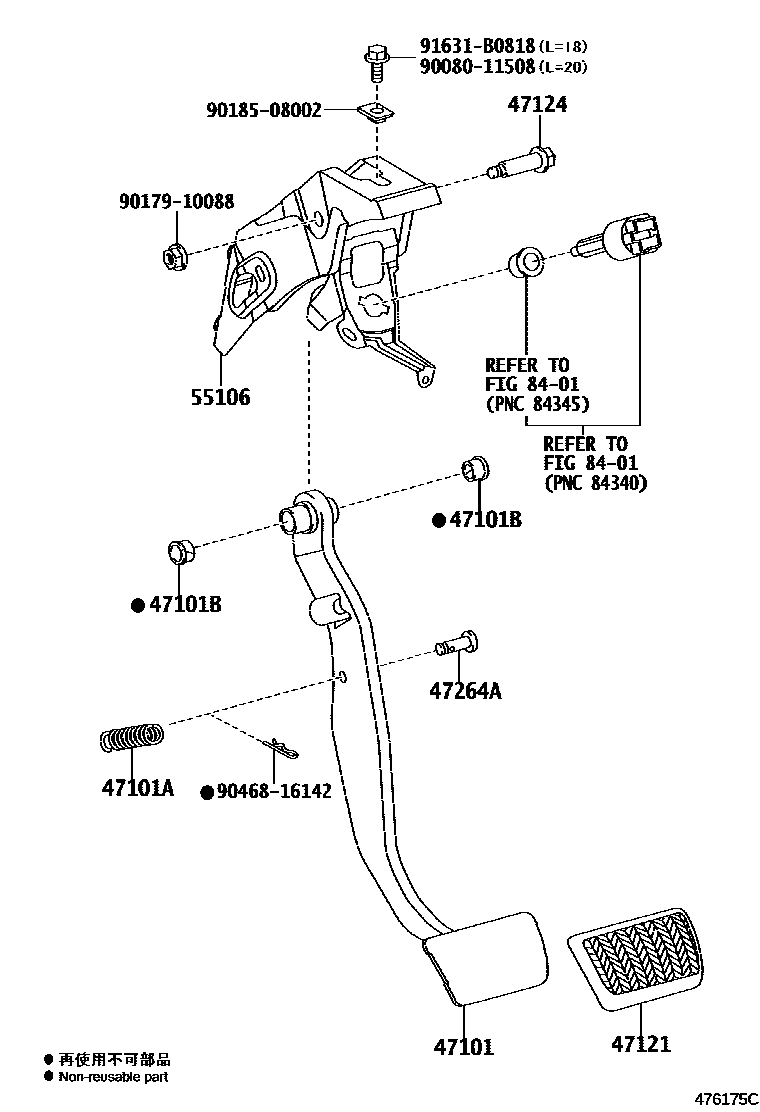

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02300iAZE141,146,ZRE142..5F200801-201012

main47101-02310iAZE14#,ZRE142..ATM200801-201012

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iAZE14#,ZRE142200801-201012

main90507-15007iAZE14#,ZRE142201211

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAZE14#,ZRE142200801-201012

47121PAD, BRAKE PEDAL

main31321-42010iAZE141,146,ZRE142..5F200801-201012

main47121-42010iAZE14#,ZRE142..ATM200801-201012

47124SHAFT, BRAKE PEDAL

main90109-10174iAZE14#,ZRE142200801-201012

47264APIN(FOR PUSH ROD)

main90249-08256iAZE14#,ZRE142200801-201012

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02150iAZE14#,ZRE142200801-201012

8401

9008011508

main90080-11508

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

91631B0818

main91631-B0818

13 parts on this diagram · 1 diagram in section
