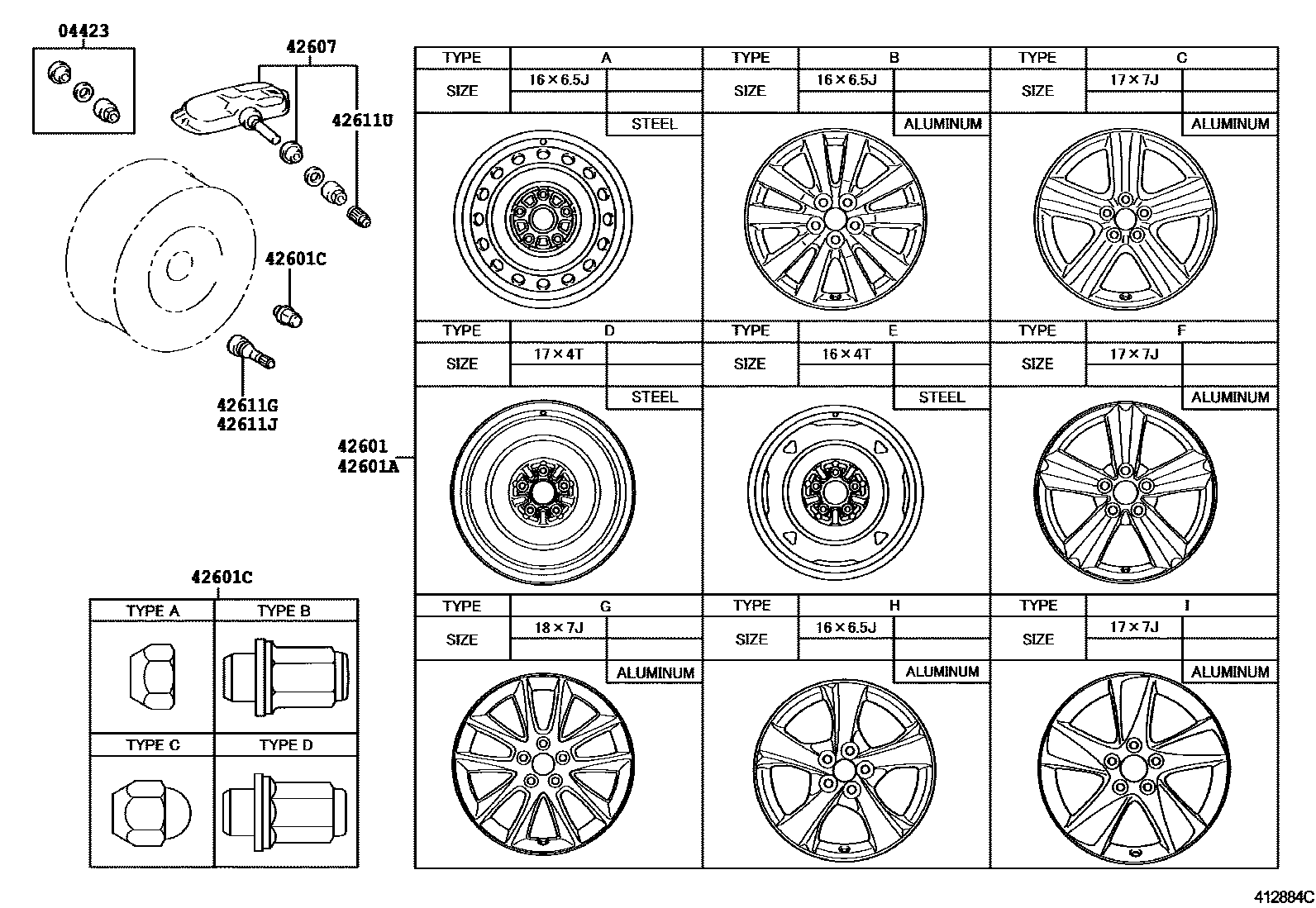

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
16X6.5J,#,TYPE A:REFER ILLUST.
16X6.5J, #,TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&AIR CONDITIONER-WITHOUT,TYPE B:REFER ILLUST.
sub42611-12C00
16X6.5J, #,TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE B:REFER ILLUST.
sub42611-12C00
16X6.5J, #,TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100,TYPE B:REFER ILLUST.
sub42611-12C00
17X7J,#,TIRE & DISK WHEEL-P215/45R17 7J AL PCD100,TYPE C:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE C:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&AIR CONDITIONER-WITHOUT,TYPE C:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE F:REFER ILLUST.
18X7J,#,TYPE G:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&TIRE INFLATION PRESSURE WARNING-WITHOUT,TYPE H:REFER ILLUST.
sub42611-12C10
16X6.5J,#,TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100,TYPE H:REFER ILLUST.
sub42611-12C10
17X7J,#,TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE I:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE E:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE D:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE D:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPE D:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100,TYPE D:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPE D:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-205/55R16 PCD114AL MEXICO&WHEEL CAP-CTR-ORNAMENT16" MEXICO,TYPED:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100,TYPE D:REFER ILLUST.
sub90942-A1011
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPED:REFER ILLUST.
sub90942-A1011
TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPEB:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 7J AL PCD114,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100,TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&WHEEL CAP-CTR-ORNAMENT(FOR ALUMI),TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-205/55R16 PCD114AL MEXICO&WHEEL CAP-CTR-ORNAMENT16" MEXICO,TYPEB:REFER ILLUST.
TYPE C:REFER ILLUST.
WHEEL CAP-WITHOUT,TYPE C:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-06012
42611GVALVE (FOR TUBELESS TIRE)
TIRE INFLATION PRESSURE WARNING-WITHOUT
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&AIR CONDITIONER-WITHOUT
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&AIR CONDITIONER-WITHOUT
AIR CONDITIONER-WITHOUT
TIRE & DISK WHEEL-P205/55R16 6.5J AL PCD100&TIRE INFLATION PRESSURE WARNING-WITHOUT
TIRE & DISK WHEEL-P215/45R17 7J AL PCD100&TIRE INFLATION PRESSURE WARNING-WITHOUT
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
8 parts on this diagram · 2 diagrams in section
