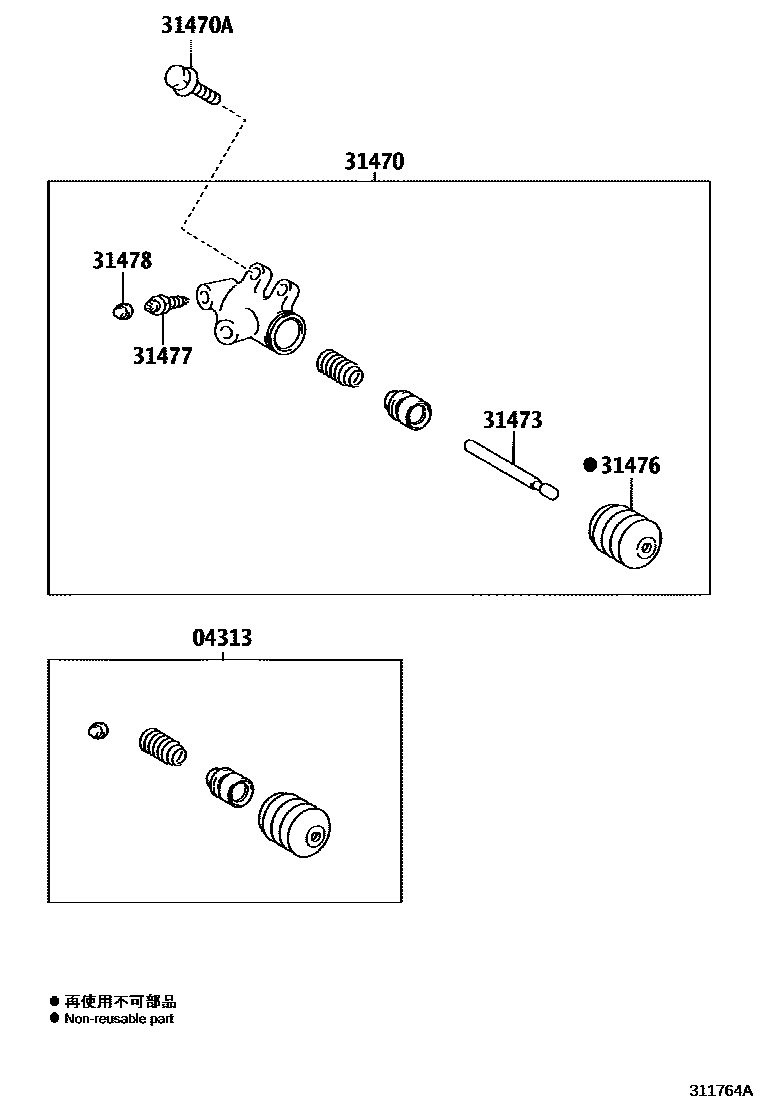

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iZRE142..5F200801-201012

main04313-53010iAZE141,146..5F200801-201012

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12160iZRE142..5F200801-201012

main31470-12161iZRE142..5F201211

main31470-42040iAZE141,146..5F200801-201012

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248×2iAZE141,146..5F200801-201012

*8-1.25PX25-20.1

main91611-60822×2iZRE142..5F201012-201406

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iAZE141,146,ZRE142..5F200801-201012

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAZE141,146,ZRE142..5F201012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAZE141,146,ZRE142..5F200801-201012

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAZE141,146,ZRE142..5F200801-201012

7 parts on this diagram · 2 diagrams in section
