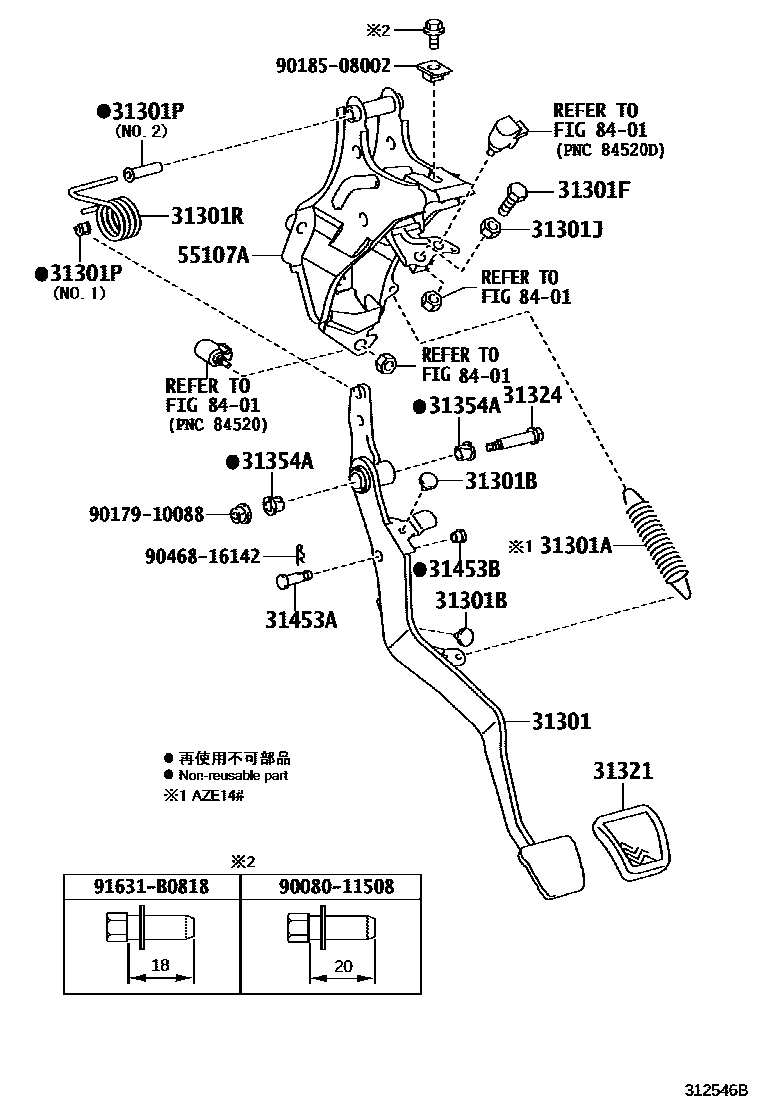

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02250iAZE141,146,ZRE142..5F200801-201010

main31301-02420iAZE141,146,ZRE142..5F201011-201012

main31301-02421iAZE141,146..5F201303-201308

main31301-02430iZRE142..5F201303

31301ASPRING(FOR CLUTCH PEDAL)

main90507-16028iAZE141,146..5F201012-201308

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iAZE141,146,ZRE142..5F200801-201012

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iAZE141,146,ZRE142..5F201011-201012

main90101-10369iAZE141,146,ZRE142..5F200801-201011

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iAZE141,146,ZRE142..5F201012

main94120-41000iAZE141,146,ZRE142..5F200801-201011

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iAZE141,146,ZRE142..5F200801-201012

NO.1

main90389-05019iAZE141,146,ZRE142..5F200801-201012

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iAZE141,146..5F201012-201308

main90949-03138iZRE142..5F200801-201012

31321PAD, CLUTCH PEDAL

main31321-42010iAZE141,146,ZRE142..5F200801-201012

31324SHAFT, CLUTCH PEDAL

main90109-10174iAZE141,146,ZRE142..5F200801-201012

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015×2iAZE141,146,ZRE142..5F200801-201012

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iAZE141,146,ZRE142..5F200801-201012

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAZE141,146,ZRE142..5F200801-201012

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02200iAZE141,146,ZRE142..5F200801-201010

main55107-02340iAZE141,146,ZRE142..5F201011-201012

main55107-02341iAZE141,146,ZRE142..5F201303

8401

9008011508

main90080-11508

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

91631B0818

main91631-B0818

19 parts on this diagram · 3 diagrams in section
