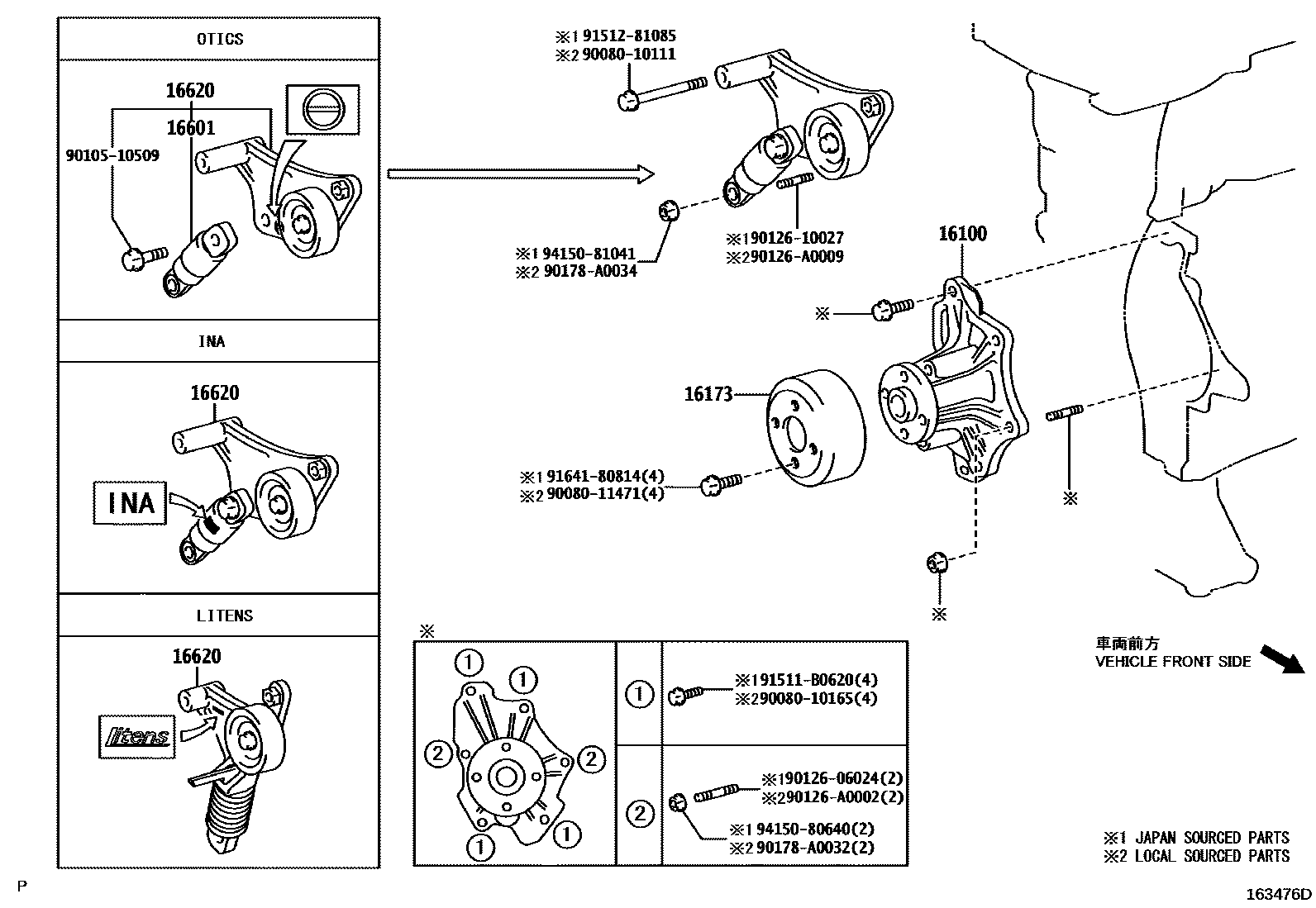

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09560i2ZRFE..ZRE142200910-201012

(L)

main16100-0H010i2AZFE..AZE141,146200801-201204

*108

main16100-28041i2AZFE..AZE14#201204-201308

main16100-28041i2AZFE..AZE14#200801-201012

*195

main16100-39465i2ZRFE..ZRE142200801-200906

main16100-39466i2ZRFE..ZRE142200910-201012

(J)

main16100-39466i2ZRFE..ZRE142200906-200910

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..AZE141,146200801-201204

*108

main16173-28020i2AZFE..AZE14#200801-201012

*195

main16173-28020i2AZFE..AZE14#201204-201308

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28021i2AZFE..AZE14#200801-200804

*195,OTICS

main16601-28021i2AZFE..AZE141,146200801-200805

*108,OTICS

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..AZE14#200805-201204

*108

main16620-0H020i2AZFE..AZE141,146200801-200805

(L),*108

main16620-0H020i2AZFE..AZE14#201204-201301

main16620-0H020i2AZFE..AZE14#200804-201012

*195

main16620-0H021i2AZFE..AZE14#201301-201308

main16620-28041i2AZFE..AZE141,146200801-200805

(J),*108

main16620-28041i2AZFE..AZE14#200801-200804

*195

9008010111

main90080-10111

9008010165

main90080-10165

9008011471

main90080-11471

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

90126A0002

main90126-A0002

90126A0009

main90126-A0009

90178A0032

main90178-A0032

90178A0034

main90178-A0034

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

19 parts on this diagram · 2 diagrams in section
