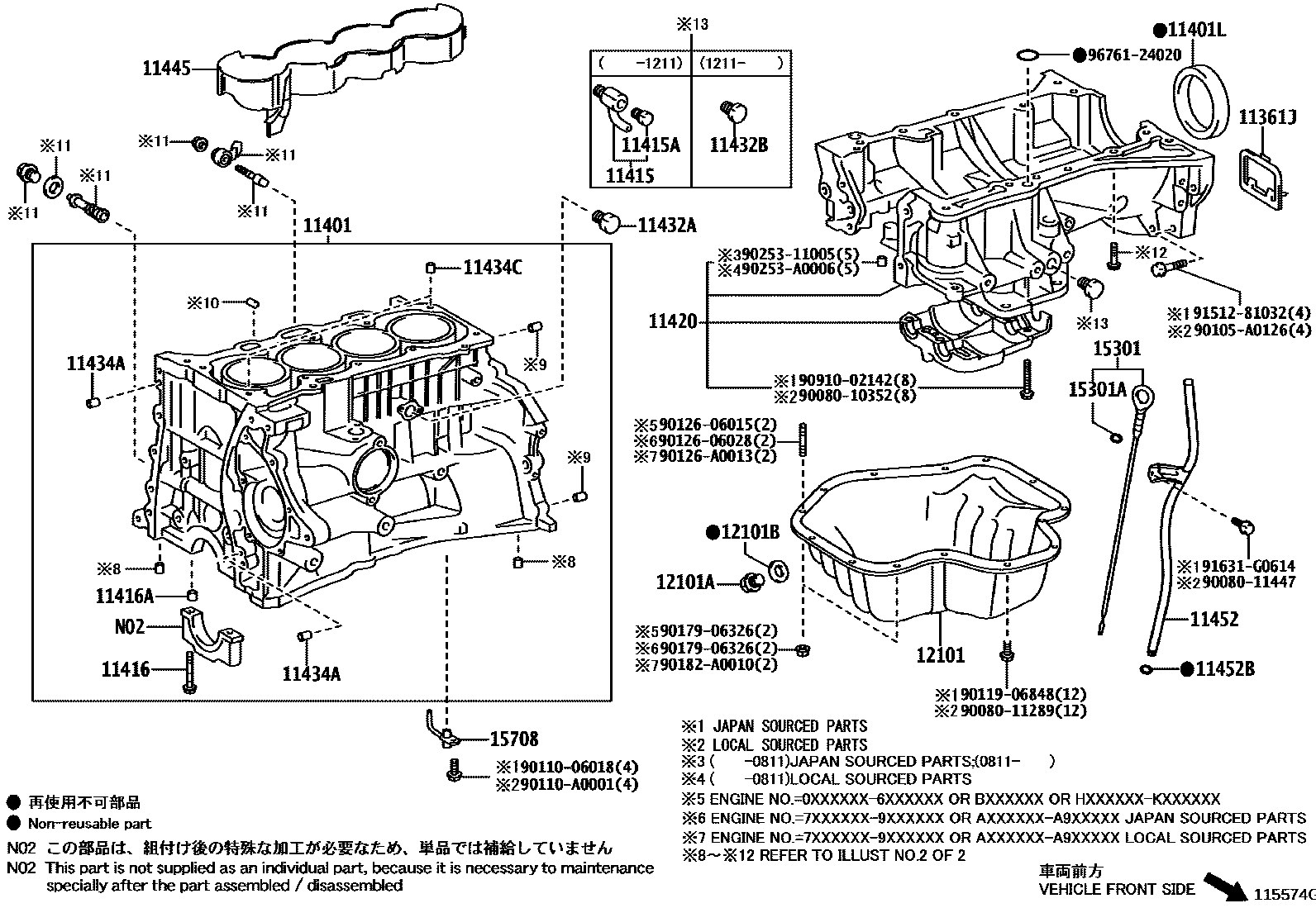

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0H021i2AZFE..AZE14#201012-201308

(L)

main11361-21011i2ZRFE..ZRE142201012

main11361-28010i2AZFE..AZE14#200801-201012

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11410-09230i2AZFE..AZE141,146200801-200811

(L),*108

main11410-09270i2AZFE..AZE144200902-201012

(L),*108

sub11400-28H00

sub11400-28H10

main11410-09320i2ZRFE..ZRE142200801-200906

(L)

main11410-09321i2ZRFE..ZRE142201012

(L)

sub11410-09322

main11410-29345i2AZFE..AZE14#201204-201212

*195

main11410-29346i2AZFE..AZE14#201212-201308

*195

main11410-39055i2ZRFE..ZRE142200801-200904

(J)

main11410-39057i2ZRFE..ZRE142200904-201012

(J)

sub11410-39245

11401LSEAL, ENGINE REAR OIL

main90311-76002i2ZRFE..ZRE142200801-201012

(J)

main90311-89003i2AZFE..AZE14#200801-201012

*195

main90311-89007i2AZFE..AZE141,146200801-201012

*108

sub90311-89010

main90311-A0013i2ZRFE..ZRE142200801-201012

(L)

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09120i2AZFE..AZE14#200801-201012

*195

main90910-09129i2ZRFE..ZRE142200801-201003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i2ZRFE..ZRE142200801-201003

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124×10i2AZFE..AZE14#200801-201012

*195

sub90910-02206

main90910-02163×10i2ZRFE..ZRE142200801-201012

(J)

main90910-A2010×10i2ZRFE..ZRE142201012

(L)

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×20i2AZFE..AZE14#200801-200811

(J),*108

main90253-A0008×10i2AZFE..AZE14#200801-200811

(L),*195

11420CRANKCASE ASSY, STIFFENING

main11420-0H030i2AZFE..AZE141,146200801-200902

*108

main11420-0H050i2AZFE..AZE14#200801-201010

(L),*195

main11420-0H051i2AZFE..AZE14#201010-201012

(L),*195

main11420-0H060i2AZFE..AZE14#200902-201012

*108

main11420-0H061i2AZFE..AZE14#201103-201204

*108

main11420-0T010i2ZRFE..ZRE142200801-201008

(L)

main11420-0T011i2ZRFE..ZRE142201008-201012

(L)

main11420-28020i2AZFE..AZE14#200801-201010

(J),*195

main11420-28021i2AZFE..AZE14#201204-201308

*195

main11420-37010i2ZRFE..ZRE142201012

(J)

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i2AZFE..AZE14#200801-201012

*195

main90345-53006i2ZRFE..ZRE142200801-201012

NO.1

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53006i2AZFE..AZE14#201211-201308

*195

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2ZRFE..ZRE142200801-201012

L=12,OD=4.0

main90250-08120×2i2AZFE..AZE14#200801-201012

L=18,OD=8,*195

main90250-A0016×2i2AZFE..AZE141,146200801-200811

L=18,OD=8,(L),*108

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097×2i2ZRFE..ZRE142200801-201012

L=12,OD=4.0

main90253-14003×2i2AZFE..AZE144200902-201012

L=12,OD=14,*108

main90253-A0009×2i2AZFE..AZE141,146200801-200811

L=12,OD=14,(L),*108

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-28020i2AZFE..AZE14#200801-201012

*195

11452GUIDE, OIL LEVEL GAGE

main11452-0H050i2AZFE..AZE14#201012-201204

*108

main11452-28040i2AZFE..AZE14#201204-201308

*195

main11452-37010i2ZRFE..ZRE142201012-201101

main11452-37011i2ZRFE..ZRE142201101

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i2ZRFE..ZRE142200801-201012

*195

12101PAN SUB-ASSY, OIL

main12101-0H010i2AZFE..AZE141,146200801-200810

*108

main12101-28030i2AZFE..AZE14#201204-201308

*195

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ZRFE..ZRE142200801-201012

*195

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFE..ZRE142200801-201012

*195

15301GAGE SUB-ASSY, OIL LEVEL

main15301-28030i2AZFE..AZE14#200801-201012

*195

main15301-28031i2AZFE..AZE14#201301-201308

*195

main15301-37010i2ZRFE..ZRE142201012-201208

main15301-37030i2ZRFE..ZRE142201208-201306

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFE..AZE14#200801-201012

*195

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-28010×4i2AZFE..AZE14#200801-200809

*195

main15708-28011×4i2AZFE..AZE14#201012-201204

*108

main15708-37010×4i2ZRFE..ZRE142200801-200809

main15708-37011×4i2ZRFE..ZRE142201012-201211

main15708-37012×4i2ZRFE..ZRE142201211

9008010352

main90080-10352

9008011289

main90080-11289

9008011447

main90080-11447

90105A0126

main90105-A0126

9011006018

main90110-06018

90110A0001

main90110-A0001

9011906848

main90119-06848

9012606015

main90126-06015

9012606028

main90126-06028

90126A0013

main90126-A0013

9017906326

main90179-06326

90182A0010

main90182-A0010

9025311005

main90253-11005

90253A0006

main90253-A0006

9091002142

main90910-02142

9151281032

main91512-81032

91631G0614

main91631-G0614

9676124020

main96761-24020

39 parts on this diagram · 4 diagrams in section
